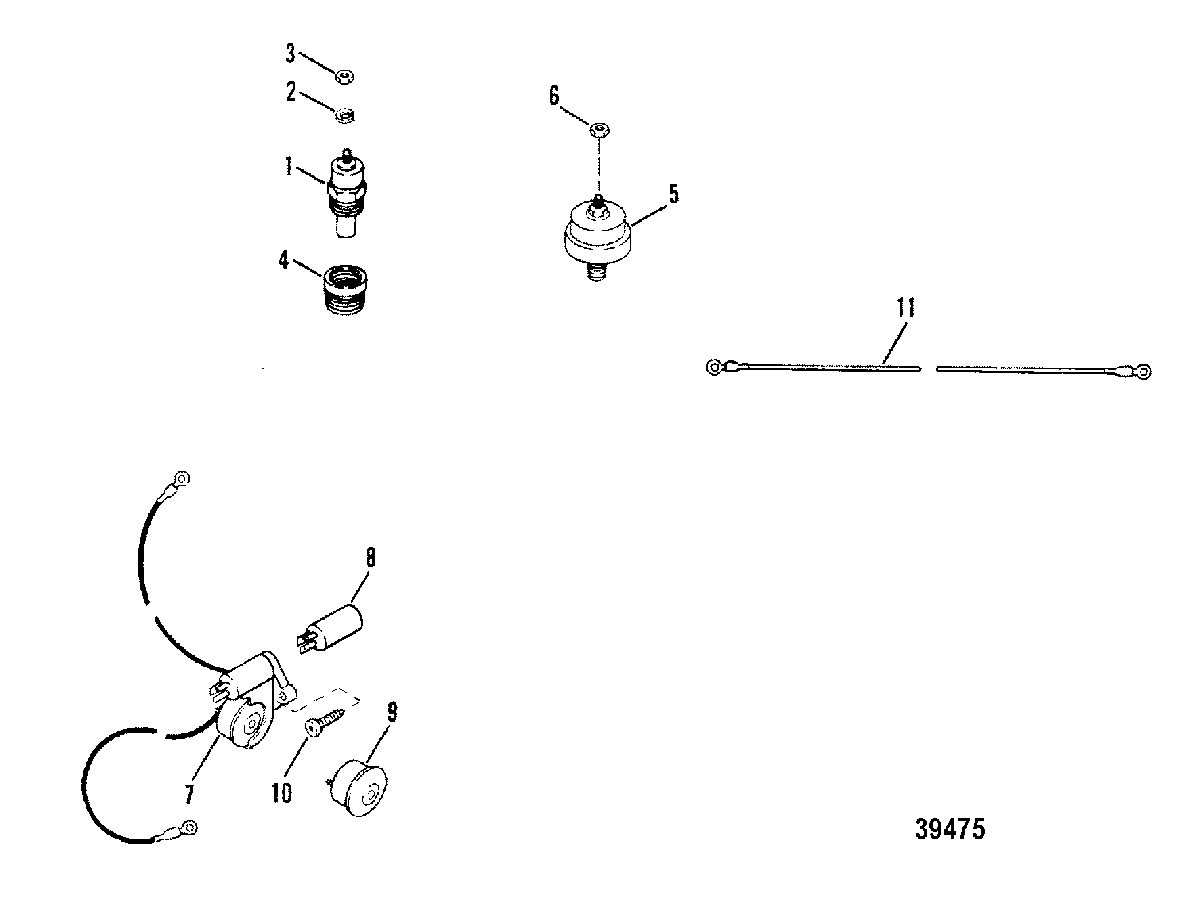

AUDIO WARNING SYSTEM для Mercruiser - 3.7L (2 BBL.) MERCURY 224 I/L4 1988-1989 0B774252 & Up

  • №
    Артикул
    Название
  • 1
    87-86080 SWITCH, Temperature, WATER
    SWITCH, Temperature, WATER
  • 2
    13-26996 LOCKWASHER, (#10) Stainless Steel, TEMPERATURE SWITCH
    LOCKWASHER, (#10) Stainless Steel, TEMPERATURE SWITCH
  • 3
    11-45076 NUT, (#10-32) Brass, TEMPERATURE SWITCH
    NUT, (#10-32) Brass, TEMPERATURE SWITCH
  • 5
    87-805605A1 SWITCH
    SWITCH
  • 6
    11-45076 NUT, (#10-32) Brass, PRESSURE SWITCH TERMINAL
    NUT, (#10-32) Brass, PRESSURE SWITCH TERMINAL
  • 7
    816492A14 HOUSING KIT
    HOUSING KIT
  • 8
    816492A14 TIMER, TEMPERATURE BUZZER
    TIMER, TEMPERATURE BUZZER
  • 9
    68878A6 HORN ASSEMBLY, Buzzer Alarm
    HORN ASSEMBLY, Buzzer Alarm
  • 10
    10-69013 SCREW, (#10-16 x .880), HORN ATTACHING
    SCREW, (#10-16 x .880), HORN ATTACHING
  • 11
    84-13760A6 WIRE ASSEMBLY, TAN/BLUE
    WIRE ASSEMBLY, TAN/BLUE
