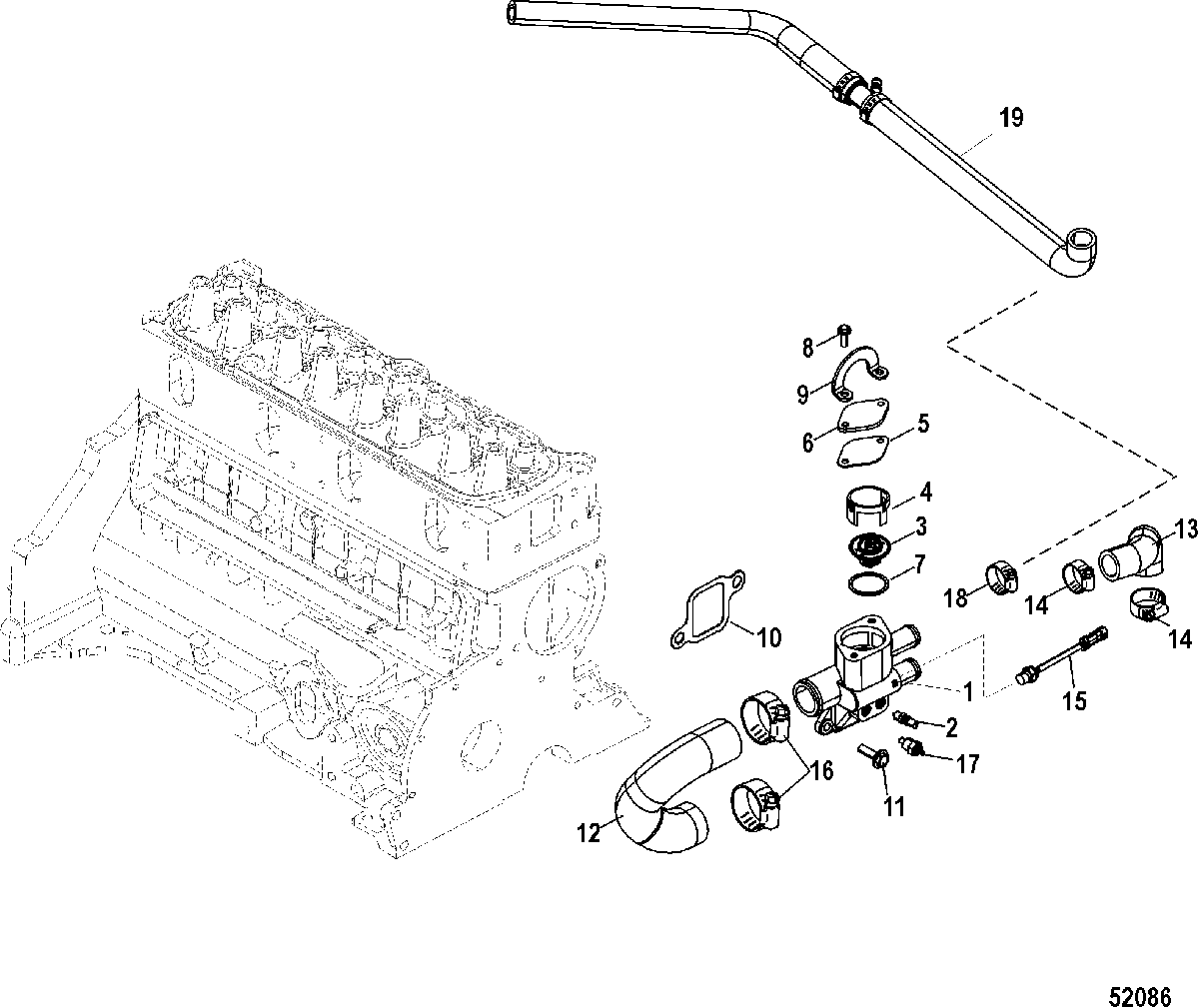

Standard Cooling System для Mercruiser - 3.0L TKS Plus 1G404114 & Up

  • №
    Артикул
    Название
  • 1
    861493A06 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    48952 SWITCH ASSEMBLY, Audio Warning
    SWITCH ASSEMBLY, Audio Warning
  • 3
    8M0109441 THERMOSTAT, 71DegreeC (160 Degree F)
    THERMOSTAT, 71DegreeC (160 Degree F)
  • 4
    23-806922 SLEEVE
    SLEEVE
  • 5
    27-331792 GASKET
    GASKET
  • 6
    17494A1 COVER KIT
    COVER KIT
  • 7
    27-806871 GASKET
    GASKET
  • 8
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 9
    12552 LIFTING EYE
    LIFTING EYE
  • 10
    27-8146801 GASKET
    GASKET
  • 11
    10-90059 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 11
    10-90187 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 12
    32-8M0071007 HOSE, Housing to Water Pump
    HOSE, Housing to Water Pump
  • 13
    32-861634 HOSE, Housing to Manifold
    (4.00 Inch)
    HOSE, Housing to Manifold
    (4.00 Inch)
  • 14
    54-815504220 CLAMP, Worm Gear (1.75 Inch Diameter)
    CLAMP, Worm Gear (1.75 Inch Diameter)
  • 14
    54-815504216 CLAMP, Worm Gear (1.56 Diameter) (1.56 Inch Diameter)
    CLAMP, Worm Gear (1.56 Diameter) (1.56 Inch Diameter)
  • 15
    87-866115 Temperature Switch, (Normally Open 130-110 degrees), TKS
    Temperature Switch, (Normally Open 130-110 degrees), TKS
  • 16
    54-815504232 CLAMP, Worm Gear (2.50 Diameter) (2.50 Inch)
    CLAMP, Worm Gear (2.50 Diameter) (2.50 Inch)
  • 17
    806490T SENDER
    SENDER
  • 18
    54-815504212 CLAMP, Worm Gear, Hose - Diameter (1.31 Inch)
    CLAMP, Worm Gear, Hose - Diameter (1.31 Inch)
  • 19
    32-862325 HOSE
    HOSE
  • -
    27-810846A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
