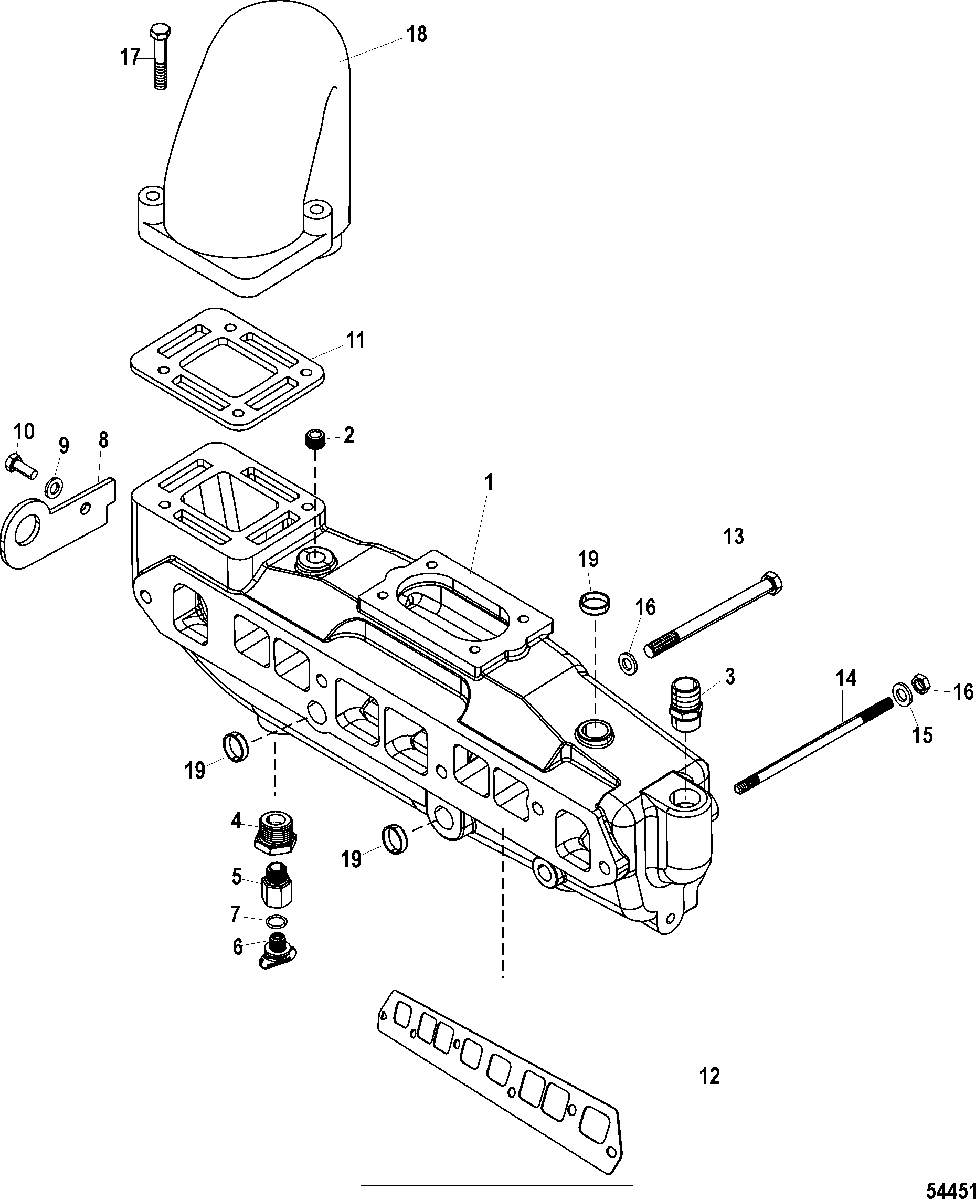

Intake / Exhaust Manifold для Mercruiser - 3.0L TKS Plus 1G404114 & Up

  • №
    Артикул
    Название
  • 1
    860235A03 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    22-866725 FITTING, Straight (.750-14), Hose
    FITTING, Straight (.750-14), Hose
  • 4
    22-845175 BUSHING, Reducer (.750 / .375)
    BUSHING, Reducer (.750 / .375)
  • 5
    22-862557 BUSHING, (.500-13 x .375)
    BUSHING, (.500-13 x .375)
  • 6
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 7
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 8
    865549 LIFTING EYE
    LIFTING EYE
  • 9
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 10
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 11
    27-997772 GASKET, Elbow
    GASKET, Elbow
  • 12
    27-815528 GASKET, Exhaust Manifold
    GASKET, Exhaust Manifold
  • 13
    10-8M0144800 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 14
    16-8M2010364 STUD, (.375 X 5.62)
    STUD, (.375 X 5.62)
  • 15
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 16
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 17
    10-668631 SCREW, (.375-16 x 2.500)
    SCREW, (.375-16 x 2.500)
  • 18
    12076A2 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 19
    19-864689 PLUG, Expansion
    PLUG, Expansion
