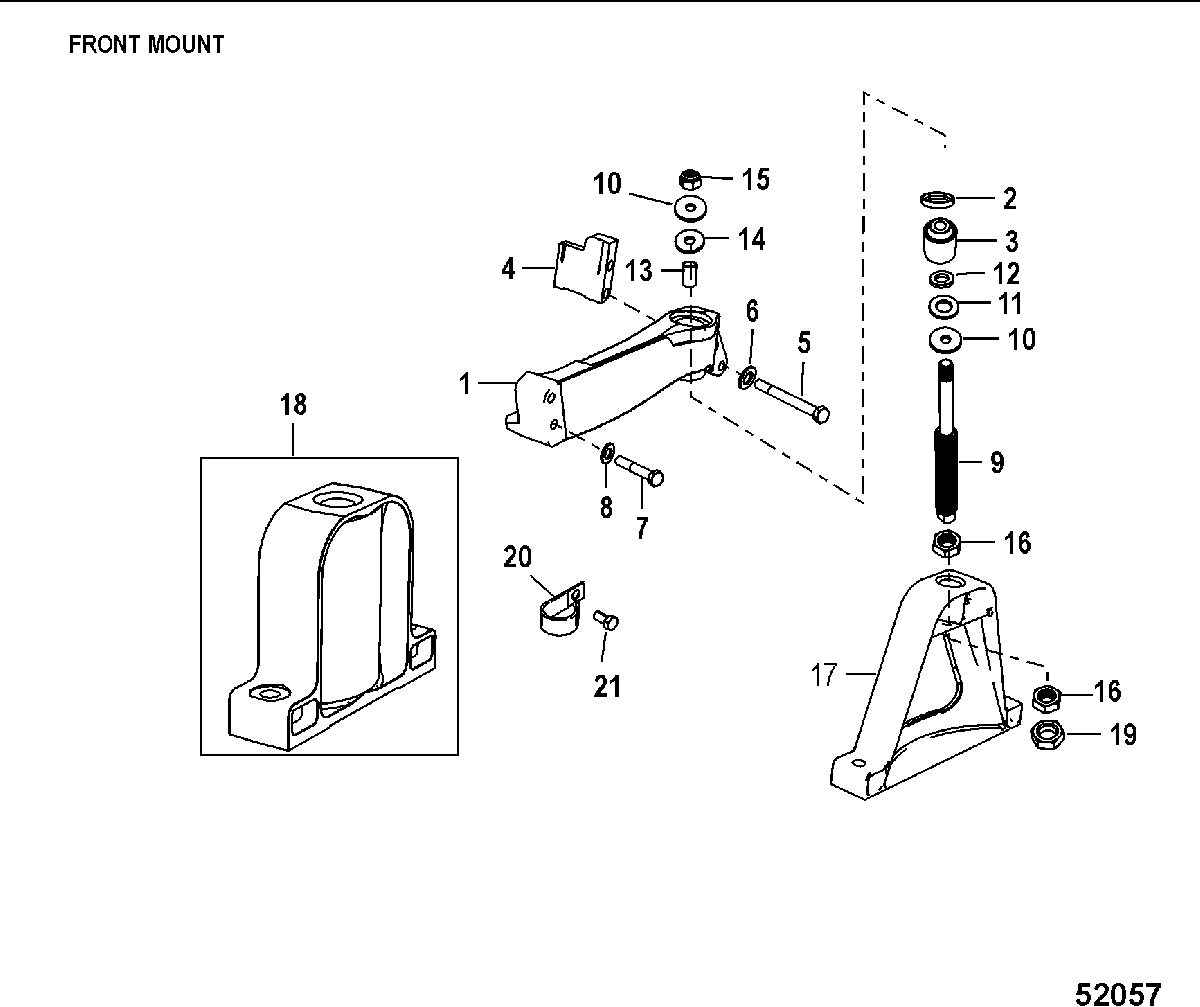

Engine Mounting для Mercruiser - 3.0L TKS Plus 1G404114 & Up

  • №
    Артикул
    Название
  • 1
    73571A2 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 2
    23-35903 SPACER
    SPACER
  • 3
    32833 MOUNT
    MOUNT
  • 4
    8M0046293 BLOCK
    BLOCK
  • 5
    10-8M2021918 SCREW, (.437-14 x 4.625)
    SCREW, (.437-14 x 4.625)
  • 6
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 7
    10-26486 SCREW, (.375-16 x 2.375)
    (Without Power Steering)
    SCREW, (.375-16 x 2.375)
    (Without Power Steering)
  • 8
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 9
    16-36100T STUD
    STUD
  • 10
    12-36103 WASHER, (Steel, 1.75 Inch Outside Diameter)
    WASHER, (Steel, 1.75 Inch Outside Diameter)
  • 11
    12-32638 WASHER, Rubber
    WASHER, Rubber
  • 12
    12-30119 WASHER, (.875 Inch Outside Diameter)
    WASHER, (.875 Inch Outside Diameter)
  • 13
    23-32756 SPACER
    SPACER
  • 14
    12-36104 WASHER, Rubber
    WASHER, Rubber
  • 15
    11-82671317 NUT, (.500-20)
    NUT, (.500-20)
  • 16
    11-32882 NUT, (.875-14)
    NUT, (.875-14)
  • 17
    32778T SUPPORT
    SUPPORT
  • 18
    76409F1 SUPPORT
    SUPPORT
  • 19
    11-47525 NUT, (.875-14), Bottom
    NUT, (.875-14), Bottom
  • 20
    54-78945 J CLAMP
    J CLAMP
  • 21
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
