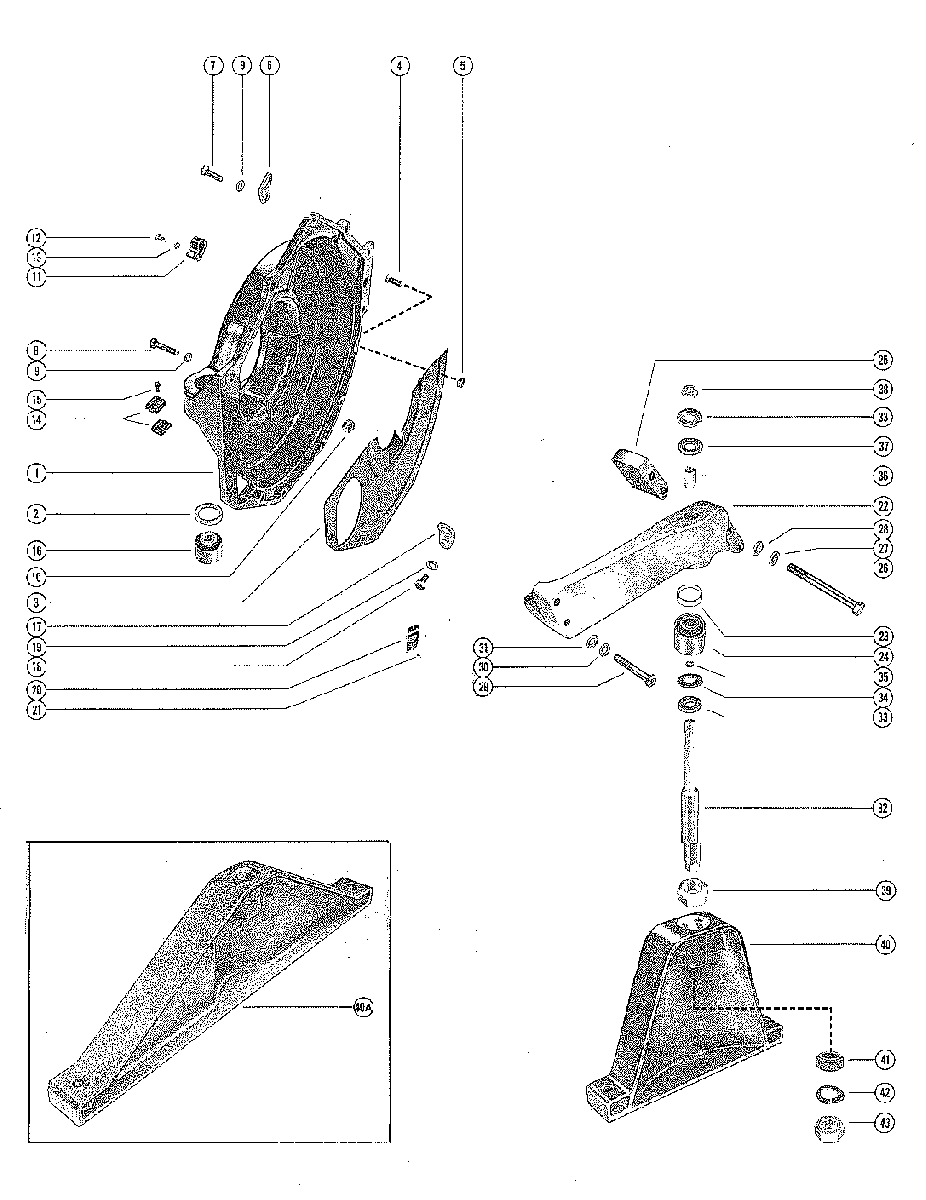

FLYWHEEL HOUSING AND ENGINE SUPPORT для Mercruiser - 140 GM 181 I/L4 1968-1972 2508261 THRU 3332137

№

Артикул

Название
1

65059A1 FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
SERIAL 00000000-02816416

FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
SERIAL 00000000-02816416
1

65059A1 FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
SERIAL 02816417-09999999

FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
SERIAL 02816417-09999999
2

23-99322 SPACER, FLYWHEEL HOUSING MOUNT

SPACER, FLYWHEEL HOUSING MOUNT
3

35864A1 COVER PLATE, FLYWHEEL HOUSING

COVER PLATE, FLYWHEEL HOUSING
4

10-47277 SCREW, COVER PLATE TO FLYWHEEL HOUSING (3/4")

SCREW, COVER PLATE TO FLYWHEEL HOUSING (3/4")
5

11-29250 NUT, COVER PLATE SCREW

NUT, COVER PLATE SCREW
6

54-72531 EYE, LIFTING - FLYWHEEL HOUSING SCREW

EYE, LIFTING - FLYWHEEL HOUSING SCREW
7

10-37612 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")
SERIAL 00000000-02816416

SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")
SERIAL 00000000-02816416
8

10-34354 SCREW, BRACKET/FLYWHEEL HSG. TO CYLINDER BLOCK (1 1/2")
SERIAL 00000000-02816416

SCREW, BRACKET/FLYWHEEL HSG. TO CYLINDER BLOCK (1 1/2")
SERIAL 00000000-02816416
8

10-358701 SCREW, BRACKET/FLYWHEEL HSG. TO CYLINDER BLOCK (2")
SERIAL 00000000-02816416

SCREW, BRACKET/FLYWHEEL HSG. TO CYLINDER BLOCK (2")
SERIAL 00000000-02816416
7

10-37612 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1/4")
SERIAL 02816417-09999999

SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1/4")
SERIAL 02816417-09999999
8

10-98556 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 3/4")
SERIAL 02816417-09999999

SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 3/4")
SERIAL 02816417-09999999
9

13-35048 LOCKWASHER, BRACKET AND FLYWHEEL HOUSING SCREW

LOCKWASHER, BRACKET AND FLYWHEEL HOUSING SCREW
10

11-32219 NUT, BRACKET AND FLYWHEEL HOUSING SCREW

NUT, BRACKET AND FLYWHEEL HOUSING SCREW
11

54-24871 CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING

CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING
12

10-22028 SCREW, WIRING HARNESS CLAMP ATTACHING

SCREW, WIRING HARNESS CLAMP ATTACHING
13

13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW

LOCKWASHER, WIRING HARNESS CLAMP SCREW
14

39974 CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
SERIAL 00000000-02816416

CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
SERIAL 00000000-02816416
15

10-37892 SCREW, CONNECTO TO FLYWHEEL HOUSING (7/8")
SERIAL 00000000-02816416

SCREW, CONNECTO TO FLYWHEEL HOUSING (7/8")
SERIAL 00000000-02816416
14

39974 CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
SERIAL 02816417-09999999

CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
SERIAL 02816417-09999999
15

10-47618 SCREW, CONNECTOR TO FLYWHEEL HOUSING (1")
SERIAL 02816417-09999999

SCREW, CONNECTOR TO FLYWHEEL HOUSING (1")
SERIAL 02816417-09999999
16

32832 MOUNT, FLYWHEEL HOUSING (LEFT)

MOUNT, FLYWHEEL HOUSING (LEFT)
16

8M0103028 MOUNT, FLYWHEEL HOUSING (RIGHT)

MOUNT, FLYWHEEL HOUSING (RIGHT)
17

54-72531 EYE, LIFTING - CYLINDER BLOCK

EYE, LIFTING - CYLINDER BLOCK
18

10-98261 SCREW, LIFTING EYE TO CYLINDER BLOCK

SCREW, LIFTING EYE TO CYLINDER BLOCK
19

13-35048 LOCKWASHER, LIFTING EYE SCREW

LOCKWASHER, LIFTING EYE SCREW
20

38-31042 SERIAL PLATE

SERIAL PLATE
21

10-28642 SCREW, DRIVE - SERIAL PLATE TO CYLINDER BLOCK

SCREW, DRIVE - SERIAL PLATE TO CYLINDER BLOCK
22

73571A2 BRACKET ASSEMBLY, FRONT MOUNTING

BRACKET ASSEMBLY, FRONT MOUNTING
23

23-99322 SPACER, FRONT MOUNTING BRACKET

SPACER, FRONT MOUNTING BRACKET
24

32833 MOUNT, FRONT MOUNTING BRACKET

MOUNT, FRONT MOUNTING BRACKET
25

8M0046293 BLOCK, SPACER - FRONT MOUNTING BRACKET

BLOCK, SPACER - FRONT MOUNTING BRACKET
26

10-8M2021918 SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK (4 1/2")

SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK (4 1/2")
27

13-32993 LOCKWASHER, BRACKET AND SPACER BLOCK SCREW

LOCKWASHER, BRACKET AND SPACER BLOCK SCREW
28

12-22248 WASHER, BRACKET AND SPACER BLOCK SCREW

WASHER, BRACKET AND SPACER BLOCK SCREW
29

10-26486 SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 3/8")

SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 3/8")
30

13-35048 LOCKWASHR, FRONT MOUNTING BRACKET SCREW

LOCKWASHR, FRONT MOUNTING BRACKET SCREW
31

12-37828 WASHER, FRONT MOUNTING BRACKET SCREW

WASHER, FRONT MOUNTING BRACKET SCREW
32

16-36100T STUD, ADJUSTING - FRONT MOUNTING BRACKET

STUD, ADJUSTING - FRONT MOUNTING BRACKET
33

12-36103 WASHER, FRONT MOUNTING BRACKET ADJUSING STUD

WASHER, FRONT MOUNTING BRACKET ADJUSING STUD
34

12-32638 WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD

WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
35

12-20959 WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD

WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
36

23-36101 SPACER, FRONT MOUNTING BRACKET ADJUSTING STUD

SPACER, FRONT MOUNTING BRACKET ADJUSTING STUD
37

12-36104 WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD

WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD
38

11-82671317 NUT, FRONT MOUNTING BRACKET ADJUSTING STUD (TOP)

NUT, FRONT MOUNTING BRACKET ADJUSTING STUD (TOP)
39

11-32882 NUT, FRONT MOUNTING BRACKET ADJUSTING STUD

NUT, FRONT MOUNTING BRACKET ADJUSTING STUD
40

32778T SUPPORT, FRONT - ENGINE MOUNT

SUPPORT, FRONT - ENGINE MOUNT
40A

32849 SUPPORT, FRONT - ENGINE MOUNT

SUPPORT, FRONT - ENGINE MOUNT
41

23-33064 SLEEVE, FRONT MOUNTING BRACKET ADJUSTING STUD

SLEEVE, FRONT MOUNTING BRACKET ADJUSTING STUD
42

13-33065 LOCKWASHER, FRONT MOUNTING BRACKET ADJUSTING STUD (BOTTOM)

LOCKWASHER, FRONT MOUNTING BRACKET ADJUSTING STUD (BOTTOM)
43

11-47525 NUT, JAM - FRONT MOUNTING BRACKET ADJUSTING STUD (BOTTOM)

NUT, JAM - FRONT MOUNTING BRACKET ADJUSTING STUD (BOTTOM)
