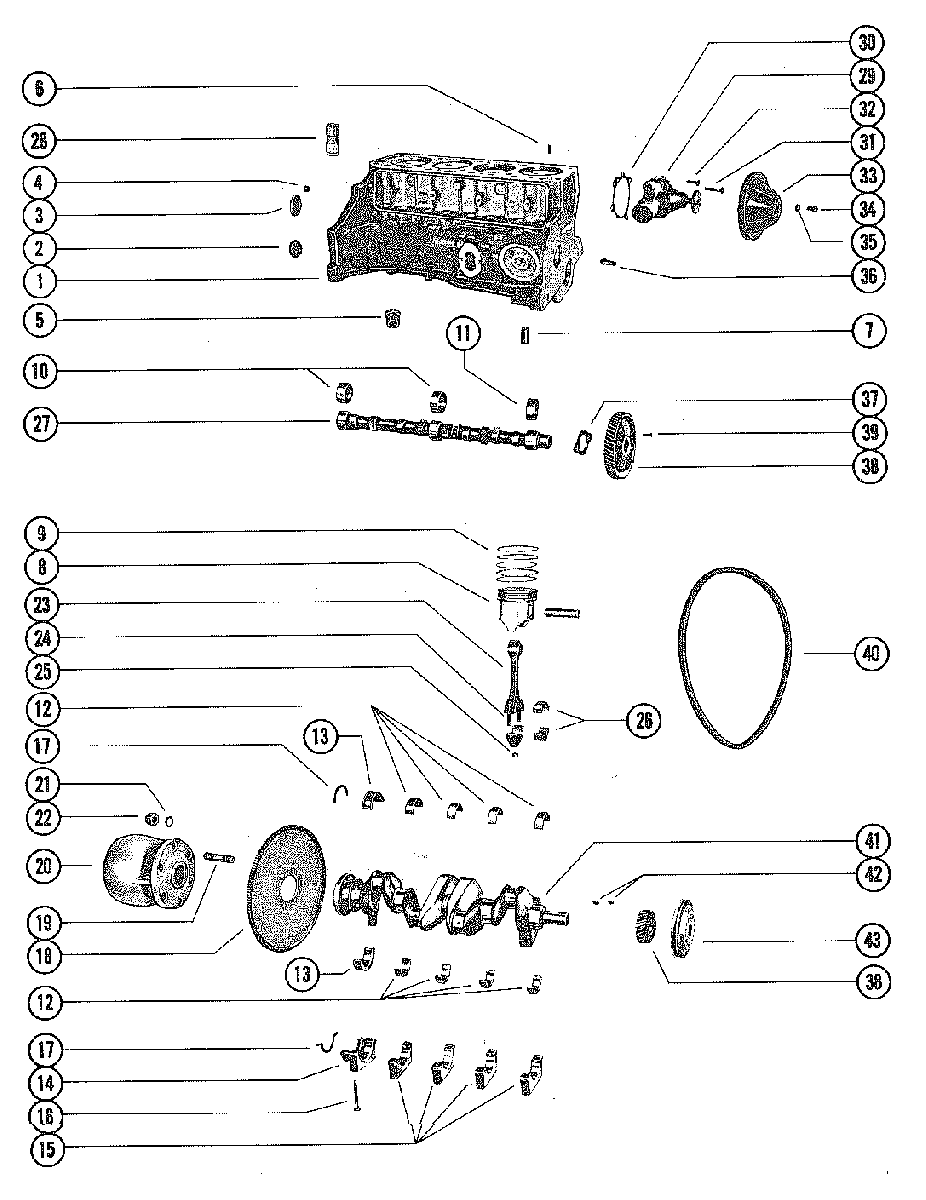

CYLINDER BLOCK, PISTON AND CRANKSHAFT для Mercruiser - 140 GM 181 I/L4 1968-1972 2508261 THRU 3332137

  • №
    Артикул
    Название
  • 1
    839-3814 CYLINDER BLOCK ASSEMBLY(SEE NOTE)
    CYLINDER BLOCK ASSEMBLY(SEE NOTE)
  • 2
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
  • 2
    19-34271 PLUG, EXPANSION - CYLINDER BLOCK (2" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (2" DIA.)
  • -
    19-37531 PLUG, OIL CHANNEL - CYLINDER BLOCK
    PLUG, OIL CHANNEL - CYLINDER BLOCK
  • 3
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 4
    22-36373 PLUG, PIPE - CYLINDER BLOCK (3/8")
    PLUG, PIPE - CYLINDER BLOCK (3/8")
  • 5
    22-36382 PLUG, WATER DRAIN - CYLINDER BLOCK
    PLUG, WATER DRAIN - CYLINDER BLOCK
  • 6
    17-35465 PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
    PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
  • 7
    23-35168 BEARING, DISTRIBUTOR PILOT SHAFT
    BEARING, DISTRIBUTOR PILOT SHAFT
  • 8
    733-3819 PISTON AND PISTON PIN ASSEMBLY (STANDARD)
    PISTON AND PISTON PIN ASSEMBLY (STANDARD)
  • 8
    733-38181 PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
  • 9
    39-17464 RING, PISTON - 4 SETS (STANDARD)
    RING, PISTON - 4 SETS (STANDARD)
  • 9
    39-66217 RING, PISTON - 4 SETS (.020 O.S.)
    RING, PISTON - 4 SETS (.020 O.S.)
  • 10
    23-85720T BEARING UNIT, CAMSHAFT (FRONT AND INTERMEDIATE)
    BEARING UNIT, CAMSHAFT (FRONT AND INTERMEDIATE)
  • 11
    23-85720T BEARING UNIT, CAMSHAFT (REAR)
    BEARING UNIT, CAMSHAFT (REAR)
  • 12
    23-818469001 BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
  • 12
    23-818470001 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
  • 12
    23-52258 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
  • 12
    23-818471001 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
  • 12
    23-818472 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 13
    23-818469001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 13
    23-818470001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
  • 13
    23-85671 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
  • 13
    23-85672 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 13
    23-85673 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 14
    49954 CAP, REAR - CRANKSHAFT BEARING
    CAP, REAR - CRANKSHAFT BEARING
  • 15
    35310 CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
    CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
  • 16
    10-46717 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
  • 17
    26-814622 OIL SEAL UNIT, CRANKSHAFT REAR BEARING
    SERIAL 00000000-02816416
    OIL SEAL UNIT, CRANKSHAFT REAR BEARING
    SERIAL 00000000-02816416
  • 17
    26-814622 OIL SEAL UNIT, CRANKSHAFT REAR BEARING
    SERIAL 02816417-09999999
    OIL SEAL UNIT, CRANKSHAFT REAR BEARING
    SERIAL 02816417-09999999
  • --
    34543 VALVE, BY-PASS - OIL FILTER
    VALVE, BY-PASS - OIL FILTER
  • 18
    220-2282 FLYWHEEL, CRANKSHAFT
    FLYWHEEL, CRANKSHAFT
  • 19
    16-98532A1 STUD, FOYWHEEL TO ENGINE COUPLING
    STUD, FOYWHEEL TO ENGINE COUPLING
  • 20
    76850A2 ENGINE COUPLING ASSEMBLY
    ENGINE COUPLING ASSEMBLY
  • 21
    12-35935 WASHER, FLYWHEEL STUD
    WASHER, FLYWHEEL STUD
  • 22
    11-34933 NUT, FLYWHEEL STUD
    NUT, FLYWHEEL STUD
  • 23
    613-3817T CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 24
    10-52269 BOLT, CONNECTING ROD BEARING CAP
    BOLT, CONNECTING ROD BEARING CAP
  • 25
    11-37493 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 26
    23-85701 BEARING(PAIR), CONN. ROD(STANDARD)
    BEARING(PAIR), CONN. ROD(STANDARD)
  • 26
    23-85702 BEARING(PAIR), CONN. ROD(.001 U.S.)
    BEARING(PAIR), CONN. ROD(.001 U.S.)
  • 26
    23-85703 BEARING(PAIR),CONN.ROD(.002 U.S.)
    BEARING(PAIR),CONN.ROD(.002 U.S.)
  • 26
    23-85704 BEARING(PAIR),CONN.ROD(.010 U.S.)
    BEARING(PAIR),CONN.ROD(.010 U.S.)
  • 26
    23-85705 BEARING(PAIR),CONN.ROD(.020 U.S.)
    BEARING(PAIR),CONN.ROD(.020 U.S.)
  • 27
    424-3864 CAMSHAFT
    CAMSHAFT
  • 28
    72638 LIFTER, HYDRAULIC -TAPPET
    LIFTER, HYDRAULIC -TAPPET
  • 29
    46-8M0113733 WATER PUMP ASSEMBLY (SPECIAL MARINE)
    WATER PUMP ASSEMBLY (SPECIAL MARINE)
  • 30
    27-879150138 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 31
    10-34471 SCREW, WATER PUMP TO CYLINDER BLOCK (1 1/2")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1 1/2")
  • 32
    10-8M0043993 SCREW, WATER PUMP TO CYLINDER BLOCK (3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (3/4")
  • 32
    10-34505 SCREW, WATER PUMP TO CYLINDER BLOCK (7/8")
    SCREW, WATER PUMP TO CYLINDER BLOCK (7/8")
  • 33
    52349 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 34
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 35
    13-39107 LOCKWASHER, PULLEY SCREW
    LOCKWASHER, PULLEY SCREW
  • 36
    32-46471 NOZZLE, OIL - TIMING GEAR
    NOZZLE, OIL - TIMING GEAR
  • 37
    23-34469 BEARING, CAMSHAFT THRUST
    BEARING, CAMSHAFT THRUST
  • 38&39
    43-58283A1 GEAR SET, TIMING - CAMSHAFT AND CRANKSHAFT
    SERIAL 00000000-02911134
    GEAR SET, TIMING - CAMSHAFT AND CRANKSHAFT
    SERIAL 00000000-02911134
  • 38
    43-46743 GEAR, TIMING - CRANKSHAFT
    SERIAL 02911135-09999999
    GEAR, TIMING - CRANKSHAFT
    SERIAL 02911135-09999999
  • 39
    43-46745 GEAR, TIMING - CAMSHAFT
    SERIAL 02911135-09999999
    GEAR, TIMING - CAMSHAFT
    SERIAL 02911135-09999999
  • 39
    10-21417A1 SCREW, TIMING GEAR TO CAMSHAFT (1/4")
    SCREW, TIMING GEAR TO CAMSHAFT (1/4")
  • 40
    57-64032Q1 BELT, ALTERNATOR, WATER PUMP PULLEY AND CRANKSHAFT PULLEY
    BELT, ALTERNATOR, WATER PUMP PULLEY AND CRANKSHAFT PULLEY
  • 41
    423-3816 CRANKSHAFT
    CRANKSHAFT
  • 42
    28-34466 KEY, PULLEY AND GEAR LOCATING
    KEY, PULLEY AND GEAR LOCATING
  • 43
    8M0086946 BALANCER, HARMONIC
    BALANCER, HARMONIC
