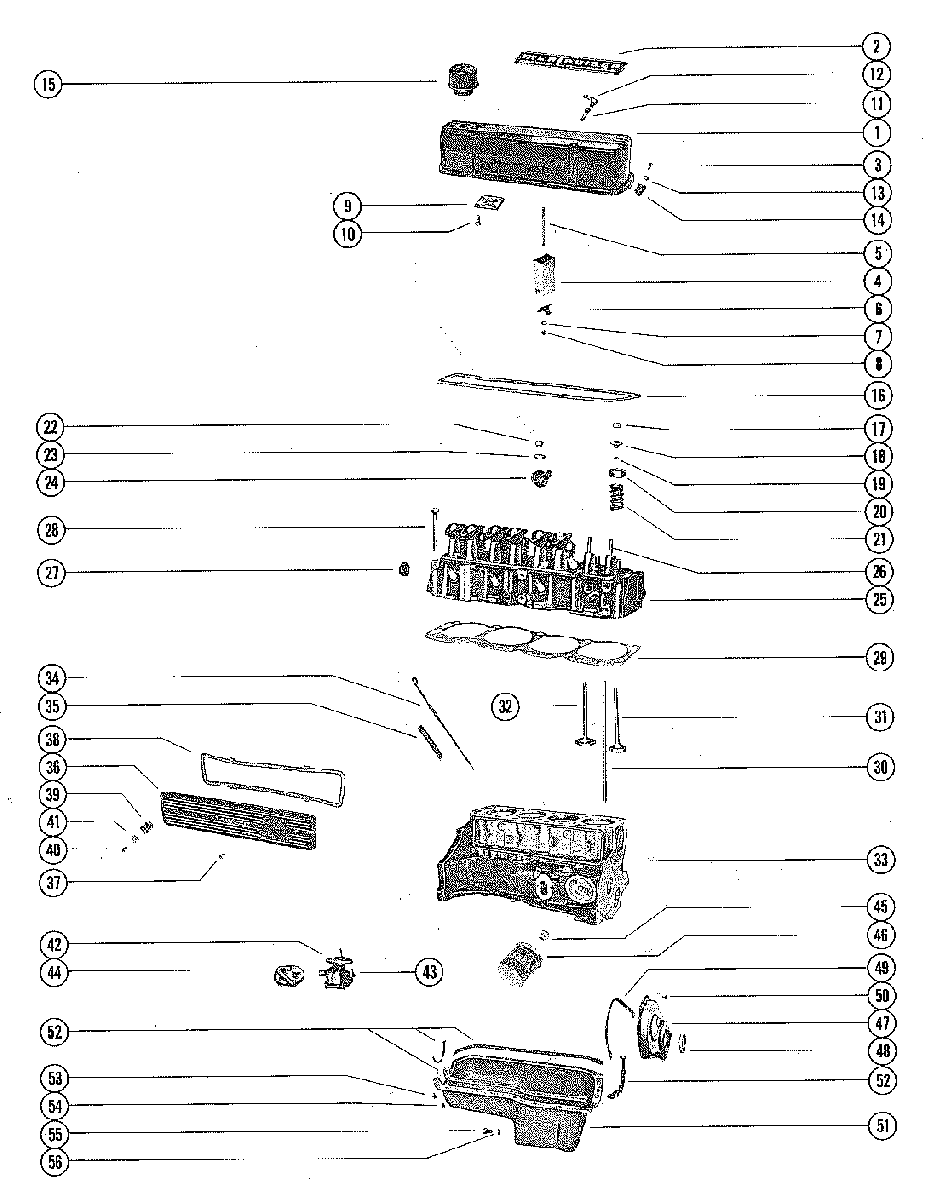

CYLINDER HEAD AND OIL PAN для Mercruiser - 140 GM 181 I/L4 1968-1972 2508261 THRU 3332137

№

Артикул

Название
1

62234A2 COVER ASSEMBLY, ROCKER
SERIAL 00000000-02816416

COVER ASSEMBLY, ROCKER
SERIAL 00000000-02816416
1

62234A2 COVER ASSEMBLY, ROCKER
SERIAL 02816417-02959983

COVER ASSEMBLY, ROCKER
SERIAL 02816417-02959983
1

62234A2 COVER ASSEMBLY, ROCKER
SERIAL 02959984-09999999

COVER ASSEMBLY, ROCKER
SERIAL 02959984-09999999
2

37-64707 DECAL, ROCKER COVER
SERIAL 00000000-02816416

DECAL, ROCKER COVER
SERIAL 00000000-02816416
2

37-55541 DECAL, ROCKER COVER
SERIAL 02816417-09999999

DECAL, ROCKER COVER
SERIAL 02816417-09999999
3

10-65746 SCREW, ROCKER COVER TO CYLINDER HEAD (3/4")

SCREW, ROCKER COVER TO CYLINDER HEAD (3/4")
4

45369 CHIMNEY, BREATHER

CHIMNEY, BREATHER
5

16-45969 STUD, BREATHER CHIMNEY TO ROCKER COVER (3 5/16")

STUD, BREATHER CHIMNEY TO ROCKER COVER (3 5/16")
6

54-35861 CLIP, ROCKER COVER CHIMNEY STUD

CLIP, ROCKER COVER CHIMNEY STUD
7

12-29245 WASHER, ROCKER COVER CHIMNEY STUD

WASHER, ROCKER COVER CHIMNEY STUD
8

11-826709109 NUT, ROCKER COVER CHIMNEY STUD

NUT, ROCKER COVER CHIMNEY STUD
9

58655 BAFFLE, ROCKER COVER
SERIAL 02959984-09999999

BAFFLE, ROCKER COVER
SERIAL 02959984-09999999
10

10-38792 SCREW, BAFFLE TO ROCKER COVER
SERIAL 02959984-09999999

SCREW, BAFFLE TO ROCKER COVER
SERIAL 02959984-09999999
11

22-52669 FITTING, ROCKER COVER (VENT HOSE)

FITTING, ROCKER COVER (VENT HOSE)
12

22-36221 ELBOW, ROCKER COVER FITTING

ELBOW, ROCKER COVER FITTING
13

12-29245 WASHER, ROCKER COVER SCREW

WASHER, ROCKER COVER SCREW
14

54-33361 CLIP, ROCKER COVER SCREW

CLIP, ROCKER COVER SCREW
14

54-49542 CLAMP, INLET HOSE - ROCKER COVER SCREW

CLAMP, INLET HOSE - ROCKER COVER SCREW
--

37-55539 DECAL, ROCKER COVER - "140 H.P."
SERIAL 00000000-02816416

DECAL, ROCKER COVER - "140 H.P."
SERIAL 00000000-02816416
--

37-55539 DECAL, ROCKER COVER - "140 H.P."
SERIAL 02816417-09999999

DECAL, ROCKER COVER - "140 H.P."
SERIAL 02816417-09999999
15

32721 OIL FILLER CAP ASSEMBLY, ROCKER COVER

OIL FILLER CAP ASSEMBLY, ROCKER COVER
16

27-851040 GASKET, ROCKER COVER TO CYLINDER HEAD

GASKET, ROCKER COVER TO CYLINDER HEAD
17

28-547971 KEY, VALVE STEM (2 PER VALVE)

KEY, VALVE STEM (2 PER VALVE)
18

FI1100604 CAP, VALVE STEM

CAP, VALVE STEM
19

26-34217 SEAL, VALVE SPRING CAP

SEAL, VALVE SPRING CAP
20

34518001 SHIELD, VALVE SPRING CAP

SHIELD, VALVE SPRING CAP
21

24-35214 SPRING, VALVE

SPRING, VALVE
22

11-34516 NUT, ROCKER VALVE ARM STUD

NUT, ROCKER VALVE ARM STUD
23

59340 BALL UNIT, ROCKER VALVE ARM STUD

BALL UNIT, ROCKER VALVE ARM STUD
24

34519 ARM, ROCKER VALVE

ARM, ROCKER VALVE
25

938-8M0115134 CYLINDER HEAD ASSEMBLY(SEE NOTE BELOW)

CYLINDER HEAD ASSEMBLY(SEE NOTE BELOW)
26

16-34521 STUD, VALVE ROCKER ARM (.013 O.S.)

STUD, VALVE ROCKER ARM (.013 O.S.)
26

16-34522 STUD, VALVE ROCKER ARM (.003 O.S.)

STUD, VALVE ROCKER ARM (.003 O.S.)
27

19-34272 PLUG, EXPANSION - CYLINDER HEAD (15/16"DIA.)

PLUG, EXPANSION - CYLINDER HEAD (15/16"DIA.)
28

10-34510 BOLT, CYLINDER HEAD TO CYLINDER BLOCK

BOLT, CYLINDER HEAD TO CYLINDER BLOCK
29

27-52364 GASKET, CYLINDER HEAD TO CYLINDER BLOCK

GASKET, CYLINDER HEAD TO CYLINDER BLOCK
30

34532 ROD, PUSH - VALVE
SERIAL 00000000-02911134

ROD, PUSH - VALVE
SERIAL 00000000-02911134
30

34532 ROD, PUSH - VALVE
SERIAL 02911135-09999999

ROD, PUSH - VALVE
SERIAL 02911135-09999999
31

97661 VALVE, INLET (STANDARD STEM)

VALVE, INLET (STANDARD STEM)
31

97662 VALVE, INLET (.015 O.S. STEM)

VALVE, INLET (.015 O.S. STEM)
32

52367 VALVE, EXHAUST (STANDARD STEM)

VALVE, EXHAUST (STANDARD STEM)
32

52368 VALVE, EXHAUST (.015 O.S. STEM)

VALVE, EXHAUST (.015 O.S. STEM)
33

839-3814 CYLINDER BLOCK ASSEMBLY (SEE PAGE 15 FOR BREAKDOWN)

CYLINDER BLOCK ASSEMBLY (SEE PAGE 15 FOR BREAKDOWN)
34

861942T1 GAUGE ASSEMBLY, OIL LEVEL (DIP STICK)

GAUGE ASSEMBLY, OIL LEVEL (DIP STICK)
35

87717A2 TUBE, OIL LEVEL GAUGE

TUBE, OIL LEVEL GAUGE
36

39332A1 COVER ASSEMBLY, PUSH ROD

COVER ASSEMBLY, PUSH ROD
37

10-35765A1 SCREW, PUSH ROD TO CYLINDER BLOCK

SCREW, PUSH ROD TO CYLINDER BLOCK
38

27-34208 GASKET, PUSH ROD COVER

GASKET, PUSH ROD COVER
39

54-22875 CLIP, WIRING HARNESS TO PUSH ROD COVER
SERIAL 00000000-02816416

CLIP, WIRING HARNESS TO PUSH ROD COVER
SERIAL 00000000-02816416
39

54-53883 CLIP, WIRING HARNESS TO PUSH ROD COVER
SERIAL 02816417-09999999

CLIP, WIRING HARNESS TO PUSH ROD COVER
SERIAL 02816417-09999999
40

10-62568 SCREW, WIRING HARNESS CLIP ATTACHING

SCREW, WIRING HARNESS CLIP ATTACHING
41

8M0084613 "D" WASHER, HARNESS CLIP SCREW
SERIAL 00000000-02816416

"D" WASHER, HARNESS CLIP SCREW
SERIAL 00000000-02816416
41

12-20583 WASHER, HARNESS CLIP SCREW
SERIAL 02816417-09999999

WASHER, HARNESS CLIP SCREW
SERIAL 02816417-09999999
42

36405 OIL PUMP ASSEMBLY

OIL PUMP ASSEMBLY
--

27-34460 GASKET, OIL PUMP COVER

GASKET, OIL PUMP COVER
43

10-8M0043993 SCREW, OIL PUMP TO CYLINDER BLOCK (3/4")

SCREW, OIL PUMP TO CYLINDER BLOCK (3/4")
44

52146 SCREEN ASSEBMBLY, OIL PUMP

SCREEN ASSEBMBLY, OIL PUMP
--

10-8M0040582 SCREW, OIL PUMP SCREEN SUPPORT CLAMPING

SCREW, OIL PUMP SCREEN SUPPORT CLAMPING
--

60717 SUPPORT, OIL PUMP

SUPPORT, OIL PUMP
45

22-805632 CONNECTOR, OIL FILTER TO CYLINDER BLOCK

CONNECTOR, OIL FILTER TO CYLINDER BLOCK
46

35-866340Q03 OIL FILTER ASSEMBLY

OIL FILTER ASSEMBLY
47

59341A1 COVER ASSEMBLY, CRANKCASE

COVER ASSEMBLY, CRANKCASE
48

26-97335 OIL SEAL, CRANKCASE COVER

OIL SEAL, CRANKCASE COVER
49

27-49953 GASKET, CRANKCASE COVER

GASKET, CRANKCASE COVER
50

10-8M0040582 SCREW, CRANKCASE COVER TO CYLINDER BLOCK (7/16")

SCREW, CRANKCASE COVER TO CYLINDER BLOCK (7/16")
51

52583A1 OIL PAN ASSEMBLY

OIL PAN ASSEMBLY
52

27-14901A1 GASKET SET, OIL PAN

GASKET SET, OIL PAN
53

10-72607 SCREW, OIL PAN TO CYLINDER BLKOCK (1/4")

SCREW, OIL PAN TO CYLINDER BLKOCK (1/4")
54

10-34500 SCREW, OIL PAN TO CYLINDER BLOCK (5/16")

SCREW, OIL PAN TO CYLINDER BLOCK (5/16")
55

10-49956 SCREW, DRAIN - OIL PAN

SCREW, DRAIN - OIL PAN
56

27-8M0077608 GASKET, OIL PAN DRAIN SCREW

GASKET, OIL PAN DRAIN SCREW
