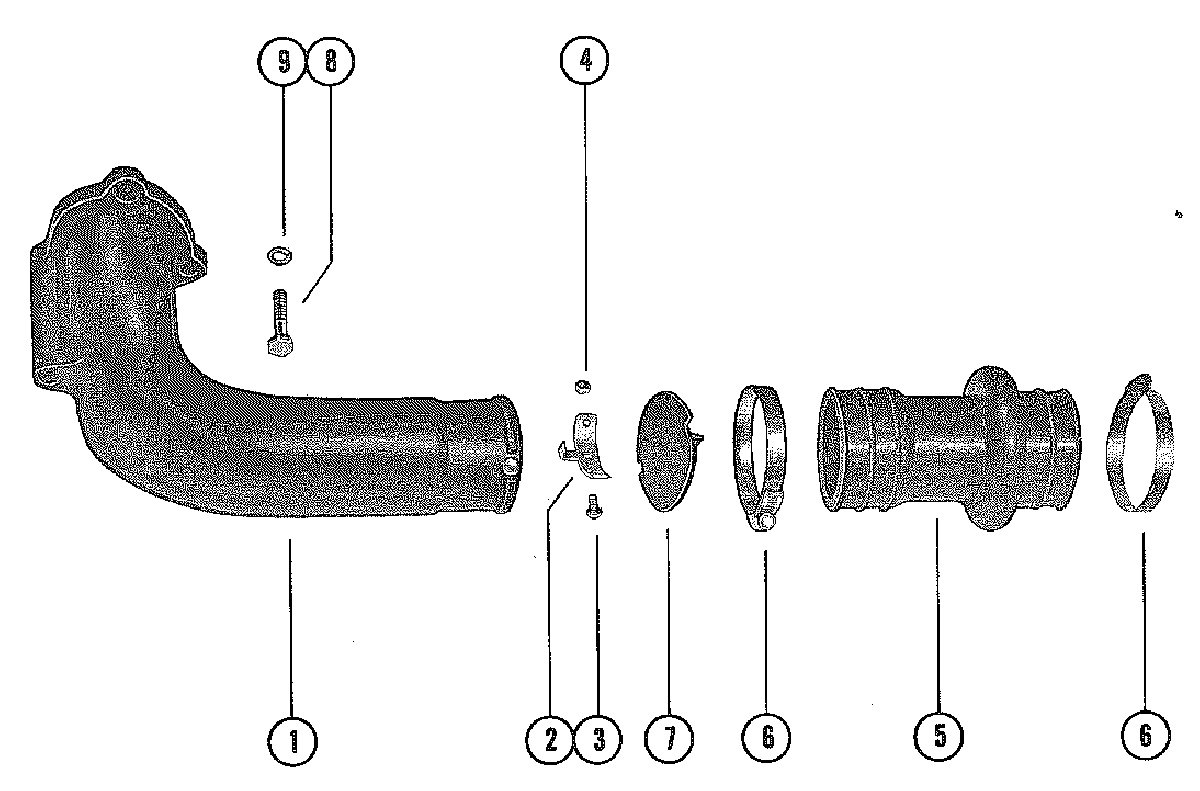

EXHAUST ELBOW ASSEMBLY для Mercruiser - 120 GM 153 I/L4 1972-1978 3377341 THRU 5192048

  • №
    Артикул
    Название
  • 1
    53272A5 EXHAUST ELBOW ASSEMBLY
    EXHAUST ELBOW ASSEMBLY
  • 2
    45798 BRACKET, SUPPORT - WATER SEALING
    BRACKET, SUPPORT - WATER SEALING
  • 3
    10-37655 SCREW, SUPPORT BRACKET TO EXHAUST ELBOW (1/2")
    SCREW, SUPPORT BRACKET TO EXHAUST ELBOW (1/2")
  • 4
    11-859124 NUT, SUPPORT BRACKET SCREW
    NUT, SUPPORT BRACKET SCREW
  • 5
    45597A1 EXHAUST BELLOWS, UPPER
    EXHAUST BELLOWS, UPPER
  • 6
    54-815504352 CLAMP, BELLOWS ATTACHING
    CLAMP, BELLOWS ATTACHING
  • 6
    54-815504456 CLAMP, BELLOWS ATTACHING
    CLAMP, BELLOWS ATTACHING
  • 7
    45586 WATER SHUTTER
    WATER SHUTTER
  • 8
    10-85577 SCREW, EXHAUST ELBOW ATTACHING (2 1/4")
    SCREW, EXHAUST ELBOW ATTACHING (2 1/4")
  • 9
    13-35048 LOCKWASHER, EXHAUST ELBOW SCREW
    LOCKWASHER, EXHAUST ELBOW SCREW
