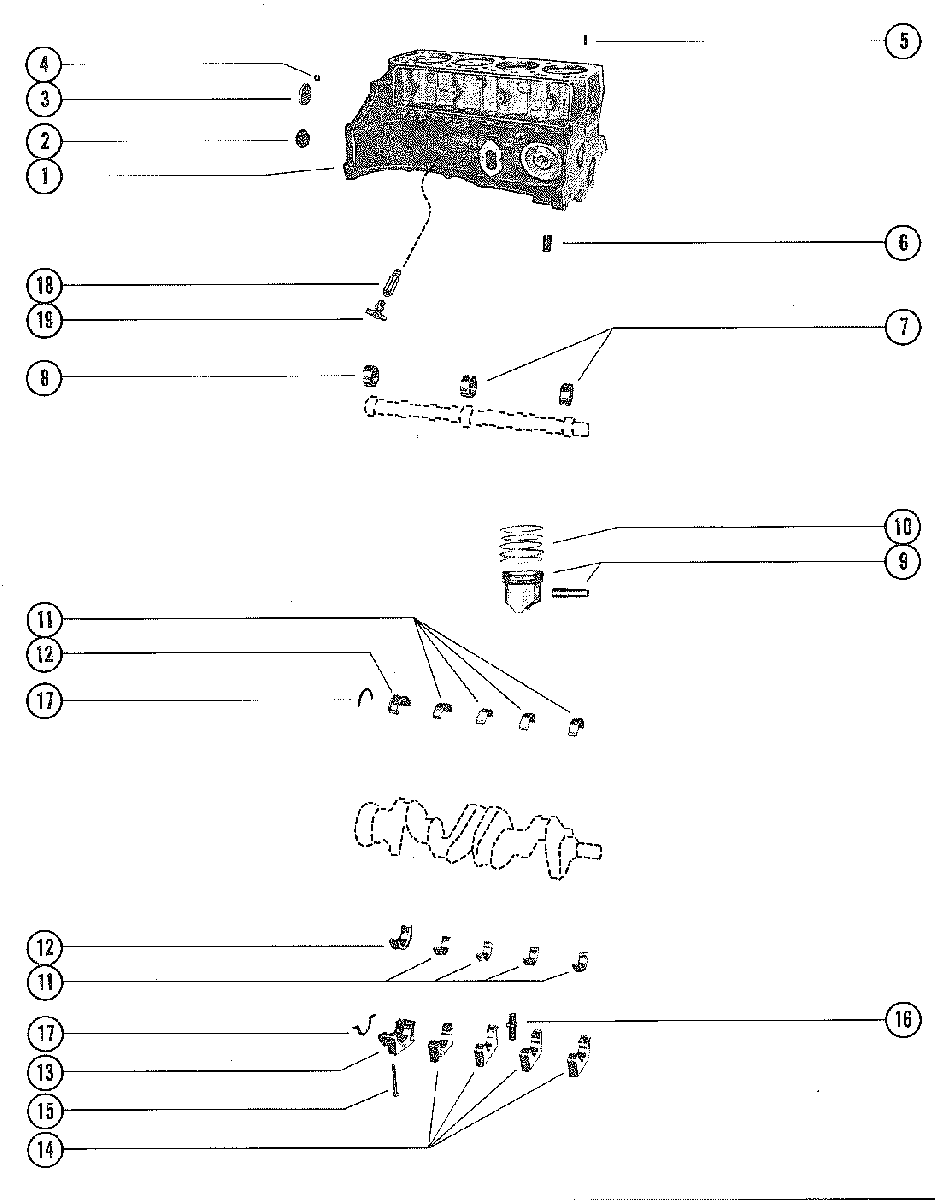

CYLINDER BLOCK, PISTON AND BEARINGS для Mercruiser - 120 GM 153 I/L4 1972-1978 3377341 THRU 5192048

  • №
    Артикул
    Название
  • 1
    87956R1 CYLINDER BLOCK ASSEMBLY
    SEE NOTE
    CYLINDER BLOCK ASSEMBLY
    SEE NOTE
  • 2
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1 5/8"DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1 5/8"DIA.)
  • 2
    19-34271 PLUG, EXPANSION - CYLINDER BLOCK (2"DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (2"DIA.)
  • -
    25-20034 PLUG, OIL CHANNEL - CYLINDER BLOCK
    PLUG, OIL CHANNEL - CYLINDER BLOCK
  • 3
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 4
    22-36373 PLUG, PIPE - CYLINDER BLOCK (3/8")
    PLUG, PIPE - CYLINDER BLOCK (3/8")
  • 5
    17-35465 PIN, DOWEL -CYLINDER BLOCK TO CYLINDER HEAD
    PIN, DOWEL -CYLINDER BLOCK TO CYLINDER HEAD
  • 6
    23-35168 BEARING, DISTRIBUTOR PILOT SHAFT
    BEARING, DISTRIBUTOR PILOT SHAFT
  • 7&8
    90-8M0143356 BEARING, CAMSHAFT
    SEE M/C SERVICE BULLETIN 83-19
    BEARING, CAMSHAFT
    SEE M/C SERVICE BULLETIN 83-19
  • 9
    736-2343 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
  • 9
    733-2279 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
  • 10
    39-67132 RING,PISTON (STANDARD)
    SERIAL 03377341-03506318
    RING,PISTON (STANDARD)
    SERIAL 03377341-03506318
  • 10
    39-67134 RING, PISTON (.030 O.S.)
    SERIAL 03377341-03506318
    RING, PISTON (.030 O.S.)
    SERIAL 03377341-03506318
  • 10
    39-67132 RING, PISTON (STANDARD)
    SERIAL 03506319-09999999
    RING, PISTON (STANDARD)
    SERIAL 03506319-09999999
  • 10
    39-67134 RING, PISTON (.030 O.S.)
    SERIAL 03506319-09999999
    RING, PISTON (.030 O.S.)
    SERIAL 03506319-09999999
  • 11
    23-818469001 BEARING UNIT, CRANLSHAFT MAIN (STANDARD)
    BEARING UNIT, CRANLSHAFT MAIN (STANDARD)
  • 11
    23-818470001 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
  • 11
    23-52258 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
  • 11
    23-818471001 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
  • 11
    23-818472 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 12
    23-818469001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 12
    23-818470001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 12
    23-85671 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
  • 12
    23-818471001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 12
    23-818472 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 13
    49954 CAP, REAR - CRANKSHAFT BEARING
    CAP, REAR - CRANKSHAFT BEARING
  • 14
    35310 CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
    CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
  • --
    15-34533 SHIM UNIT, BEARING CAP - FRONT AND INTERMEDIATE
    SHIM UNIT, BEARING CAP - FRONT AND INTERMEDIATE
  • --
    15-34534 SHIM UNIT, BEARING CAP -REAR
    SHIM UNIT, BEARING CAP -REAR
  • 15
    10-46717 BOLT, BEARING CAP TO BLOCK (2 31/32")
    SERIAL 03377341-03825578
    BOLT, BEARING CAP TO BLOCK (2 31/32")
    SERIAL 03377341-03825578
  • 15
    10-46717 BOLT, BEARING CAP TO BLOCK (2 31/32")
    SERIAL 03825579-09999999
    BOLT, BEARING CAP TO BLOCK (2 31/32")
    SERIAL 03825579-09999999
  • 16
    16-48350 STUD, BEARING CAP AND OIL PUMP ATTACHING
    SERIAL 03825579-09999999
    STUD, BEARING CAP AND OIL PUMP ATTACHING
    SERIAL 03825579-09999999
  • 17
    26-814622 OIL SEAL UNIT, CRANKSHAFT REAR BEARING
    OIL SEAL UNIT, CRANKSHAFT REAR BEARING
  • --
    34543 VALVE, BY-PASS - OIL FILTER
    VALVE, BY-PASS - OIL FILTER
  • 18
    22-64425 FITTING, EXTENTION - CYLINDER BLOCK
    FITTING, EXTENTION - CYLINDER BLOCK
  • 19
    22-16951Q1 FITTING, DRAIN - CYLINDER BLOCK
    FITTING, DRAIN - CYLINDER BLOCK
