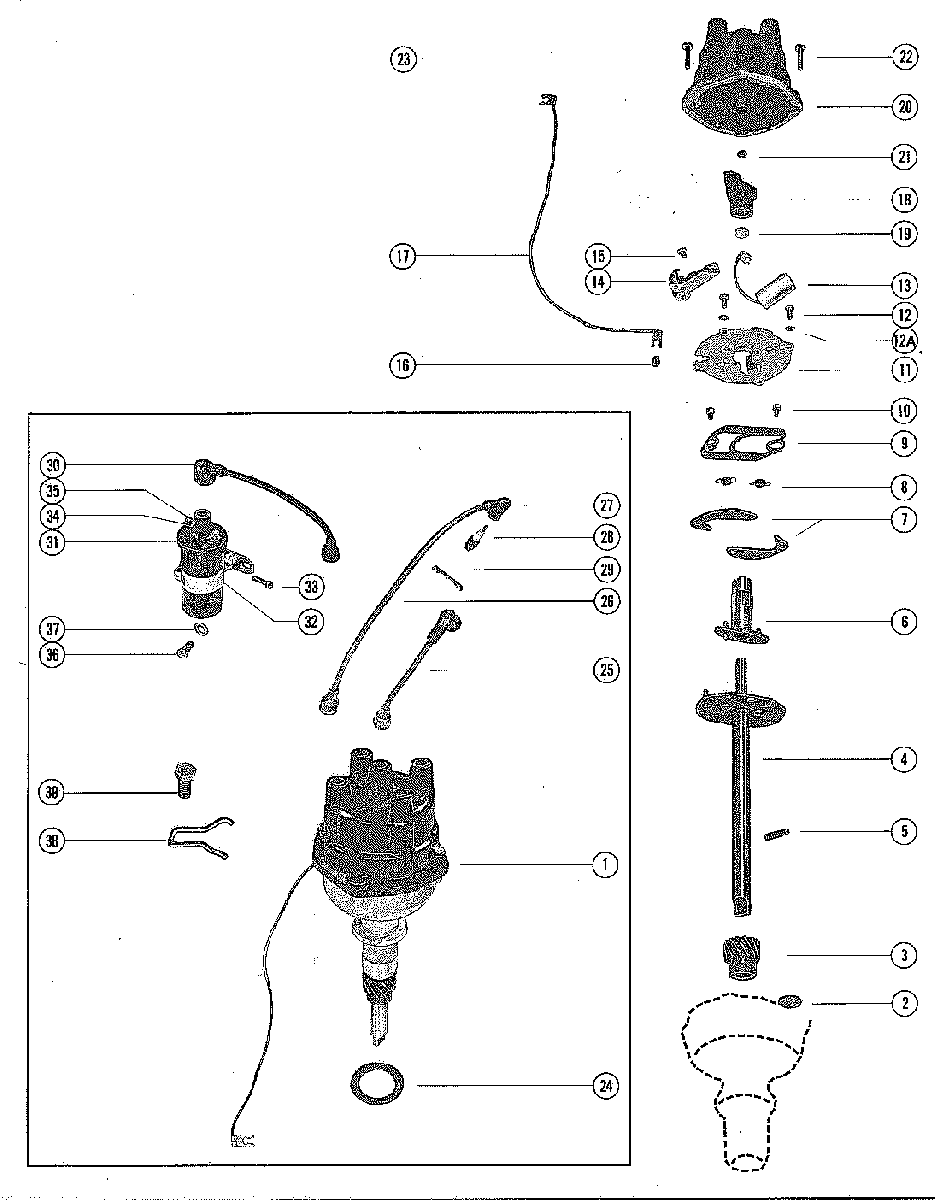

DISTRIBUTOR ASSEMBLY AND COIL для Mercruiser - 120 GM 153 I/L4 1972-1978 3377341 THRU 5192048

  • №
    Артикул
    Название
  • 1
    195141 DUSTRIBUTOR ASSEMBLY , COMPLETE
    DUSTRIBUTOR ASSEMBLY , COMPLETE
  • 1
    62426 SCREEN, VENT -DISTRIBUTOR HOUSING
    SCREEN, VENT -DISTRIBUTOR HOUSING
  • 3
    43-33664 GRAR, DRIVE - MAIN SHAFT
    GRAR, DRIVE - MAIN SHAFT
  • 4
    58218 MAIN SHAFT AND WEIGHT PLATE
    MAIN SHAFT AND WEIGHT PLATE
  • 5
    17-33649 PIN, DIRVE GREAR TO MAIN SHAFT
    PIN, DIRVE GREAR TO MAIN SHAFT
  • 6
    58235 CAM, BREAKER - ADVANCE
    CAM, BREAKER - ADVANCE
  • -
    12-58220 WASHER, CAM AND SHAFT
    WASHER, CAM AND SHAFT
  • -
    26-58219 SEAL, HOUSING
    SEAL, HOUSING
  • -
    33653 FELT, BREAKER CAM LUBRICATOR
    FELT, BREAKER CAM LUBRICATOR
  • -
    33670 RETAINER, BREAKER CAM ADVANCE WEIGHT
    RETAINER, BREAKER CAM ADVANCE WEIGHT
  • 7
    33768 WEIGHT, BREAKER CAM ADVANCE
    WEIGHT, BREAKER CAM ADVANCE
  • 8
    24-58236 SPRING, BREAKER CAM ADVANCE WEIGHT
    SPRING, BREAKER CAM ADVANCE WEIGHT
  • 10
    10-33722 SCREW, WEIGHT HOLD DOWN PLATE TO WEIGHT PLATE
    SCREW, WEIGHT HOLD DOWN PLATE TO WEIGHT PLATE
  • 11
    33665 PLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSER
    PLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSER
  • 12
    10-20650 SCREW, MOUNTING PLATE TO PRIMARY HOUSING
    SCREW, MOUNTING PLATE TO PRIMARY HOUSING
  • 12
    12-62425 WASHER, SEALING - MOUNTING PLATE SCREW
    WASHER, SEALING - MOUNTING PLATE SCREW
  • 13
    8M6001218 CONDENSER
    CONDENSER
  • --
    48024 BRACKET, CONDENSER MOUNTING
    BRACKET, CONDENSER MOUNTING
  • --
    10-48021 SCREW, CONDENSER BRACKET ATTACHING
    SCREW, CONDENSER BRACKET ATTACHING
  • 14
    34235T BREAKER ASSEMBLY, DISTRIBUTOR
    BREAKER ASSEMBLY, DISTRIBUTOR
  • 15
    10-33650 SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
    SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
  • 16
    25-33666 GROUMMET, MOUNTING PLATE - PRIMARY WIRE
    GROUMMET, MOUNTING PLATE - PRIMARY WIRE
  • 17
    33658 LEAD, PRIMARY
    LEAD, PRIMARY
  • 18
    8M6001251 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 19
    12-36275 WASHER, ROTOR
    WASHER, ROTOR
  • 20
    393-9459Q1 CAP, DISTRIBUTOR
    CAP, DISTRIBUTOR
  • 21
    33654 BUTTON, CARBON - DISTRIBUTOR CAP
    BUTTON, CARBON - DISTRIBUTOR CAP
  • 22
    10-33660 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
  • 23
    10-33663 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
  • 24
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 25
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (6")
    LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (6")
  • 26
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION-DISTRIBUTOR (14")
    LEAD ASSEMBLY, HIGH TENSION-DISTRIBUTOR (14")
  • 27
    85-63709A1 PROTECTOR, HIGH TENSION LEAD
    PROTECTOR, HIGH TENSION LEAD
  • --
    85-94589 SLEEVE, TERMINAL END COVER
    SLEEVE, TERMINAL END COVER
  • 28
    33-8134711 SPARK PLUG (AC#CR43N)-NON TAPERED
    SPARK PLUG (AC#CR43N)-NON TAPERED
  • 28
    33-898264001 SPARK PLUG (AC#R43T)-TAPERED
    SPARK PLUG (AC#R43T)-TAPERED
  • 29
    32782 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
  • 30
    327663A1 WIRE ASSEMBLY, COIL (8 1/4")
    SERIAL 03377341-03770649
    WIRE ASSEMBLY, COIL (8 1/4")
    SERIAL 03377341-03770649
  • 31
    898253T24 COIL, IGNITION
    SERIAL 03377341-03770649
    COIL, IGNITION
    SERIAL 03377341-03770649
  • 32
    33321 BRACKET, COIL MOUNTING
    SERIAL 03377341-03770649
    BRACKET, COIL MOUNTING
    SERIAL 03377341-03770649
  • 33
    10-33311 SCREW, BRACKET TO COIL (1 1/2")
    SERIAL 03377341-03770649
    SCREW, BRACKET TO COIL (1 1/2")
    SERIAL 03377341-03770649
  • 30
    84-815297A44 WIRE ASSEMBLY, COIL (12")
    SERIAL 03770650-03824295
    WIRE ASSEMBLY, COIL (12")
    SERIAL 03770650-03824295
  • 31
    898253T24 COIL, IGNITION
    SERIAL 03770650-03824295
    COIL, IGNITION
    SERIAL 03770650-03824295
  • 32
    65970T1 BRACKET, COIL MOUNTING
    SERIAL 03770650-03824295
    BRACKET, COIL MOUNTING
    SERIAL 03770650-03824295
  • 33
    10-66652 SCREW, BRACKET TO COIL
    SERIAL 03770650-03824295
    SCREW, BRACKET TO COIL
    SERIAL 03770650-03824295
  • 34
    12-30164 WASHER, IGNITION COIL TERMINAL
    WASHER, IGNITION COIL TERMINAL
  • 34
    13-26996 LOCKWASHER, IGNTION COIL TERMINAL
    LOCKWASHER, IGNTION COIL TERMINAL
  • 35
    11-68219 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 36
    10-98261 SCREW, IGNITION COIL TO CYLINDER BLOCK
    SCREW, IGNITION COIL TO CYLINDER BLOCK
  • 37
    12-20553 WASHER, IGNITION COIL SCREW
    WASHER, IGNITION COIL SCREW
  • 38
    72624 CLAMP, DISTRIBUTOR
    SERIAL 00000000-04509005
    CLAMP, DISTRIBUTOR
    SERIAL 00000000-04509005
  • 38
    72624 CLAMP, DISTRIBUTOR
    SERIAL 04509006-09999999
    CLAMP, DISTRIBUTOR
    SERIAL 04509006-09999999
  • 39
    10-11976 SCREW, DISTRIBUTOR TO CYLINDER BLOCK
    SCREW, DISTRIBUTOR TO CYLINDER BLOCK
