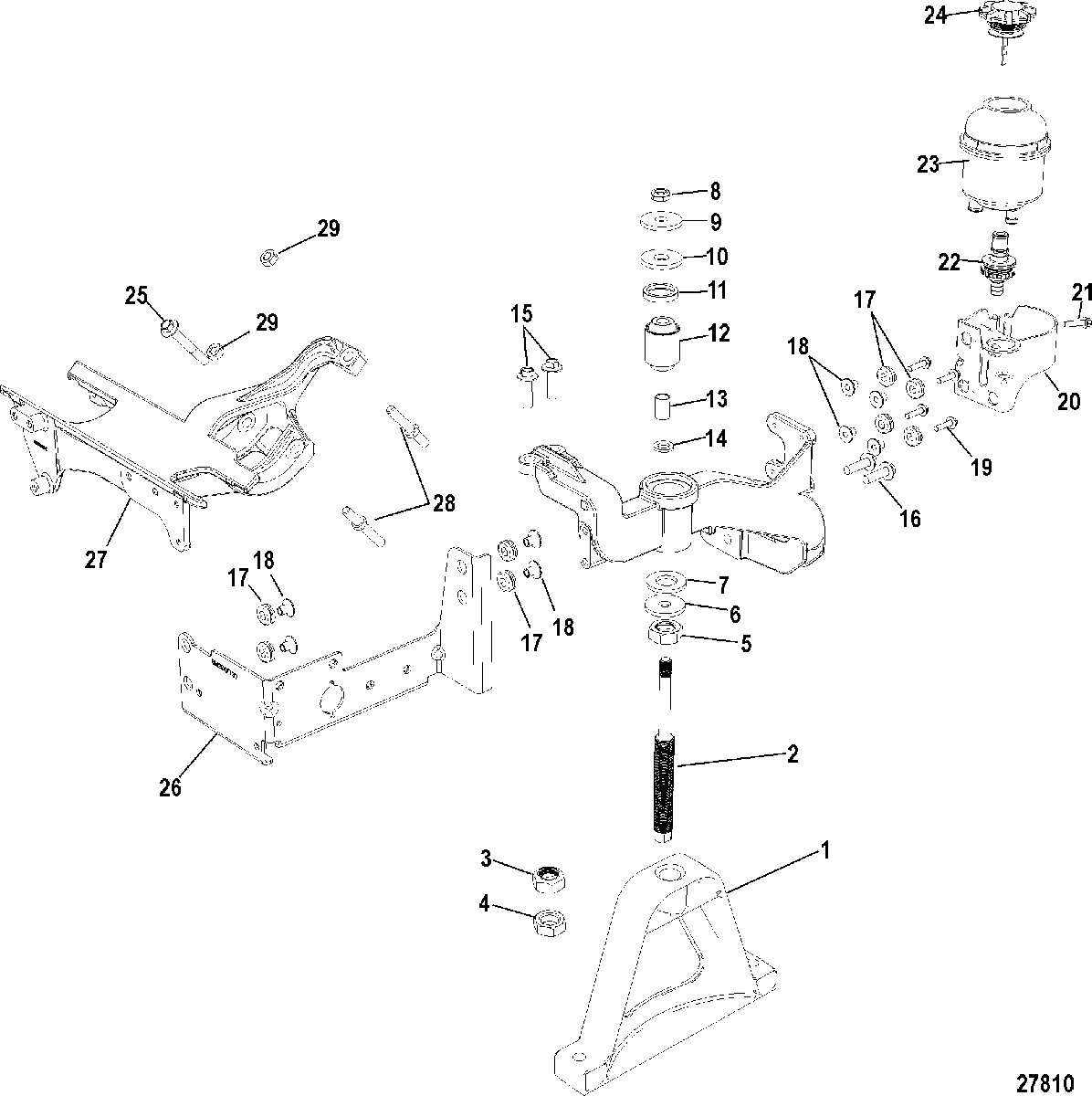

Front Mount Assembly для Mercruiser - 100 VAZER 1A035000 THRU 1A036006

  • №
    Артикул
    Название
  • 1
    32778T SUPPORT
    SUPPORT
  • 2
    16-36100T STUD
    STUD
  • 3
    11-32882 NUT, (.875-14)
    NUT, (.875-14)
  • 4
    11-47525 NUT, (.875-14)
    NUT, (.875-14)
  • 5
    11-32882 NUT, (.875-14)
    NUT, (.875-14)
  • 6
    12-36103 WASHER, (Steel, 1.75 Inch Outside Diameter)
    WASHER, (Steel, 1.75 Inch Outside Diameter)
  • 7
    12-32638 WASHER, Rubber
    WASHER, Rubber
  • 8
    11-82671317 NUT, (.500-20)
    NUT, (.500-20)
  • 9
    12-36103 WASHER, (Steel, 1.75 Inch Outside Diameter)
    WASHER, (Steel, 1.75 Inch Outside Diameter)
  • 10
    12-36104 WASHER, Rubber
    WASHER, Rubber
  • 11
    23-35903 SPACER
    SPACER
  • 12
    32833 MOUNT
    MOUNT
  • 13
    23-32756 SPACER
    SPACER
  • 14
    12-30119 WASHER, (.875 Inch Outside Diameter)
    WASHER, (.875 Inch Outside Diameter)
  • 15
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
  • 16
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
  • 17
    25-834985 GROMMET
    GROMMET
  • 18
    23-856954 BUSHING
    BUSHING
  • 19
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 20
    879150T30 BRACKET
    BRACKET
  • 21
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 22
    22-866571 FITTING
    FITTING
  • 23
    865264T RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
    RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
  • 24
    8M0121097 CAP, Oil Reservoir - Brown
    CAP, Oil Reservoir - Brown
  • 25
    10-4010870 SCREW, (M10 x 70) Hex Flange - Stainless Steel
    SCREW, (M10 x 70) Hex Flange - Stainless Steel
  • 26
    8M2001737 BRACKET
    BRACKET
  • 27
    866593T01 BRACKET
    BRACKET
  • 28
    16-866693 STUD, (M10 x 76)
    STUD, (M10 x 76)
  • 29
    11-40114 NUT, (M10 x 1.5)
    NUT, (M10 x 1.5)
