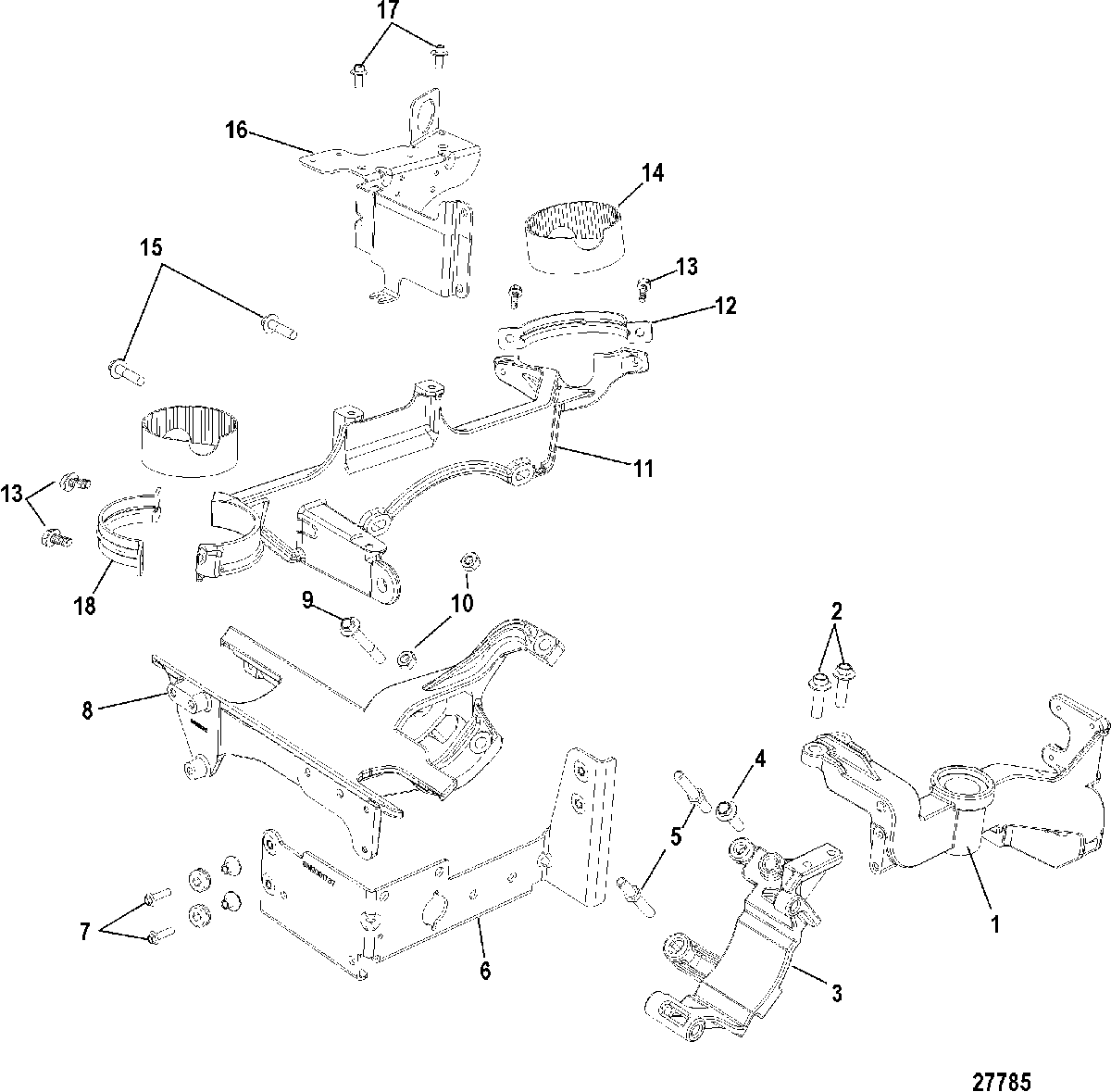

Engine Brackets для Mercruiser - 100 VAZER 1A035000 THRU 1A036006

  • №
    Артикул
    Название
  • 1
    866578T01 BRACKET
    BRACKET
  • 2
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
  • 3
    866325T01 BRACKET, Alternator
    BRACKET, Alternator
  • 4
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
  • 5
    16-866693 STUD, (M10 x 76)
    STUD, (M10 x 76)
  • 6
    8M2001737 BRACKET, Circuit Breaker/Luber Bottle
    BRACKET, Circuit Breaker/Luber Bottle
  • 7
    10-4010725 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 8
    866593T01 BRACKET, Heat Exchanger
    BRACKET, Heat Exchanger
  • 9
    10-4010870 SCREW, (M10 x 70) Hex Flange - Stainless Steel
    SCREW, (M10 x 70) Hex Flange - Stainless Steel
  • 10
    11-40114 NUT, (M10 x 1.5)
    NUT, (M10 x 1.5)
  • 11
    866819T01 BRACKET, Exhaust Cross-Over
    BRACKET, Exhaust Cross-Over
  • 12
    8M2001157 BRACKET
    BRACKET
  • 13
    10-4010716 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 14
    8M2001799 PAD
    PAD
  • 15
    10-4010840 SCREW, (M10 x 40) Hex Flange - Stainless Steel
    SCREW, (M10 x 40) Hex Flange - Stainless Steel
  • 16
    866349T BRACKET, ECM
    BRACKET, ECM
  • 17
    10-4010716 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 18
    8M2001156 BRACKET
    BRACKET
