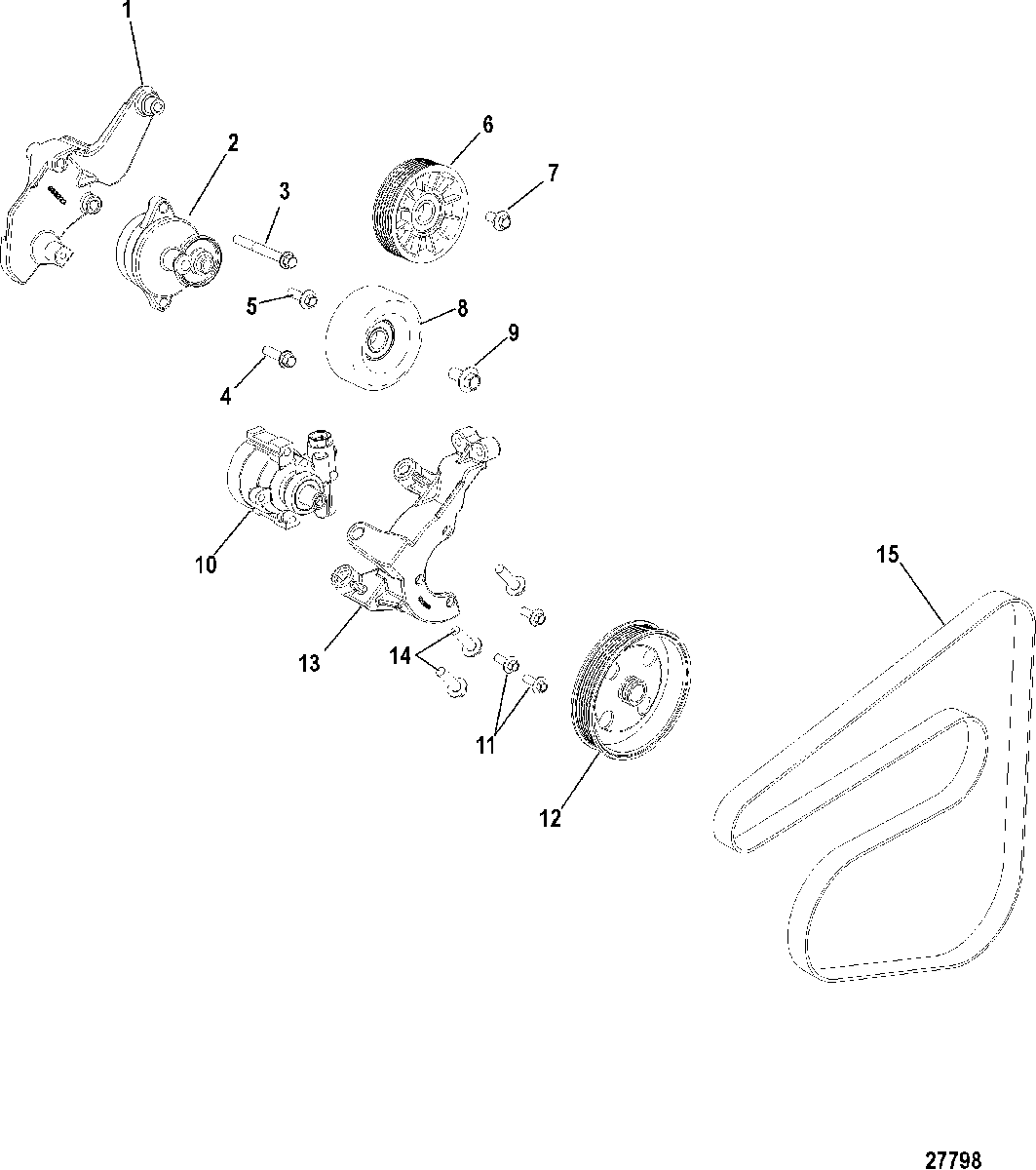

Front Accessory Drive, Belts and Pulleys для Mercruiser - 100 VAZER 1A035000 THRU 1A036006

  • №
    Артикул
    Название
  • 1
    866323T BRACKET
    BRACKET
  • 2
    865597T TENSIONER, Belt
    TENSIONER, Belt
  • 3
    10-8M0103818 SCREW, (M8 x 75)
    SCREW, (M8 x 75)
  • 4
    10-8M0103813 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 5
    10-4010725 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 6
    865444T PULLEY, (3.50 Inch Diameter)
    PULLEY, (3.50 Inch Diameter)
  • 7
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 8
    865777 PULLEY
    PULLEY
  • 9
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 10
    865710T PUMP
    PUMP
  • 11
    10-4010720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 12
    8M2001037 PULLEY
    PULLEY
  • 13
    866321T01 BRACKET
    BRACKET
  • 14
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
  • 15
    57-8M0028573 BELT, Serpentine
    BELT, Serpentine
