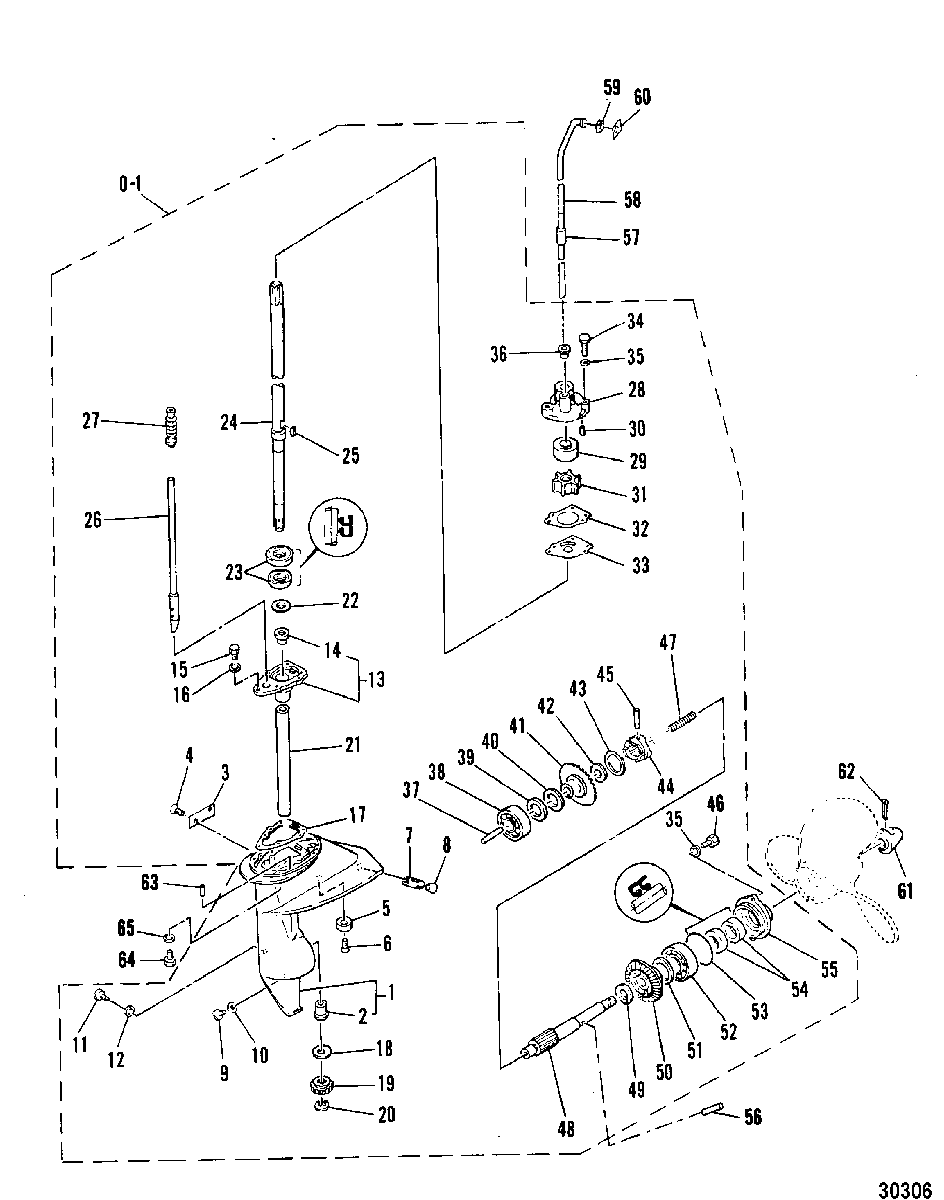

GEARHOUSING ASSEMBLY для Mariner - W8 (SUL)(W/Marathon) 677-702821 & Up

  • №
    Артикул
    Название
  • 0-1
    1651-9835M GEAR HOUSING ASSEMBLY (SHORT SHAFT)
    GEAR HOUSING ASSEMBLY (SHORT SHAFT)
  • 0-1
    1651-9836M GEAR HOUSING ASSEMBLY (LONG SHAFT)
    GEAR HOUSING ASSEMBLY (LONG SHAFT)
  • 1
    1651-6942M GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    23-80536M BUSHING, DRIVE SHAFT
    BUSHING, DRIVE SHAFT
  • 3
    83091M COVER, WATER INLET
    COVER, WATER INLET
  • 4
    10-95467M SCREW
    SCREW
  • 5
    95609M ANODE
    SN# M-057971/ML-383909/MUL-702821 & Up
    ANODE
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 5
    95609M ANODE
    SN# M-057970/ML-383908/MUL-702820 & Below
    ANODE
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 6
    10-91772M BOLT
    SN# M-057971/ML-383909/MUL-702821 & Up
    BOLT
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 6
    10-82791M BOLT
    SN# M-057970/ML-383908/MUL-702820 & Below
    BOLT
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 7
    35-80246M CLAMP, WATER INLET
    CLAMP, WATER INLET
  • 8
    22-81920M PLUG
    PLUG
  • 9
    22-81924M PLUG
    PLUG
  • 10
    27-81987 GASKET
    GASKET
  • 11
    10-81752M SCREW, DETENT
    SCREW, DETENT
  • 12
    27-95610 GASKET
    GASKET
  • 13
    80537M HOUSING, BEARING
    HOUSING, BEARING
  • 14
    23-80536M BUSHING
    BUSHING
  • 15
    10-84058M BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 16
    12-82214M WASHER
    WASHER
  • 17
    27-80535M GASKET, LOWER CASING
    GASKET, LOWER CASING
  • 18
    12-80538M THRUST WASHER (0.8MM)
    THRUST WASHER (0.8MM)
  • 18
    12-80539M THRUST WASHER (1.0MM)
    THRUST WASHER (1.0MM)
  • 18
    12-80540M THRUST WASHER (1.2MM)
    THRUST WASHER (1.2MM)
  • 18
    12-80541M THRUST WASHER (1.4MM)
    THRUST WASHER (1.4MM)
  • 19
    43-82542M GEAR, Pinion
    GEAR, Pinion
  • 20
    53-82332M RING, Snap
    RING, Snap
  • 21
    23-81983M SLEEVE
    SLEEVE
  • 22
    12-81809M WASHER
    WASHER
  • 23
    26-82228M SEAL, Oil
    SEAL, Oil
  • 24
    45-81086M DRIVESHAFT (SHORT-644MM)
    DRIVESHAFT (SHORT-644MM)
  • 24
    45-81087M DRIVESHAFT (LONG-784MM)
    DRIVESHAFT (LONG-784MM)
  • 24
    45-83748M DRIVESHAFT (ULTRA LONG-834MM)
    DRIVESHAFT (ULTRA LONG-834MM)
  • 24
    45-83753M DRIVESHAFT (SUPER ULTRA LONG-911MM)
    DRIVESHAFT (SUPER ULTRA LONG-911MM)
  • 25
    28-81912M KEY, WATER PUMP
    KEY, WATER PUMP
  • 26
    81071M SHIFT CAM (SHORT-311MM)
    SHIFT CAM (SHORT-311MM)
  • 26
    81072M SHIFT CAM (LONG-451MM)
    SHIFT CAM (LONG-451MM)
  • 26
    83744M CAM ASSEMBLY, Shift (ULTRA LONG-501MM)
    CAM ASSEMBLY, Shift (ULTRA LONG-501MM)
  • 26
    83750M CAM ASSEMBLY, Shift (SUPER ULTRA LONG-578MM)
    CAM ASSEMBLY, Shift (SUPER ULTRA LONG-578MM)
  • 27
    15304M BOOT, SHIFT ROD
    BOOT, SHIFT ROD
  • 28
    46-81074T HOUSING, Water Pump
    HOUSING, Water Pump
  • 29
    80902M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 29
    81076M INSERT, CARTRIDGE (CHROME, OPT)
    INSERT, CARTRIDGE (CHROME, OPT)
  • 30
    17-82357M PIN, Dowel
    PIN, Dowel
  • 31
    47-95611M IMPELLER
    IMPELLER
  • 32
    27-81075 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 33
    81077M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 33
    81078M OUTER PLATE, CARTRIDGE (CHROME, OPT)
    OUTER PLATE, CARTRIDGE (CHROME, OPT)
  • 34
    10-827043M BOLT
    BOLT
  • 35
    12-82214M WASHER
    WASHER
  • 36
    26-80532M RUBBER, WATER SEAL
    RUBBER, WATER SEAL
  • 37
    81014M PLUNGER, SHIFT
    PLUNGER, SHIFT
  • 38
    30-82291T BEARING, FORWARD GEAR
    BEARING, FORWARD GEAR
  • 39
    15-80543M SHIM, GEAR ADJUST (0.1MM)
    SHIM, GEAR ADJUST (0.1MM)
  • 40
    15-80174M SHIM, GEAR ADJUST (0.3MM)
    SHIM, GEAR ADJUST (0.3MM)
  • 40
    15-80175M SHIM, GEAR ADJUST (0.5MM)
    SHIM, GEAR ADJUST (0.5MM)
  • 41
    43-80542M GEAR, Forward
    GEAR, Forward
  • 42
    12-82560M WASHER
    WASHER
  • 43
    53-82339M RING, CROSS PIN
    RING, CROSS PIN
  • 44
    52-81089M CLUTCH, DOG
    CLUTCH, DOG
  • 45
    17-82362M PIN, Dowel
    PIN, Dowel
  • 46
    10-84058M BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 47
    24-82077M SPRING
    SPRING
  • 48
    44-95406M PROPELLER SHAFT
    SN# M-057971/ML-383909/MUL-702821 & Up
    PROPELLER SHAFT
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 48
    44-81088M SHAFT, PROPELLER
    SN# M-057970/ML-383908/MUL-702820 & Below
    SHAFT, PROPELLER
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 49
    12-81824M THRUST WASHER
    THRUST WASHER
  • 50
    43-80544M GEAR, Reverse
    GEAR, Reverse
  • 51
    15-19148005 SHIM, GEAR ADJUST (0.1MM)
    SHIM, GEAR ADJUST (0.1MM)
  • 51
    15-80259M SHIM, GEAR ADJUST (0.3MM)
    SHIM, GEAR ADJUST (0.3MM)
  • 51
    15-879172251 SHIM, GEAR ADJUST (0.5MM)
    SHIM, GEAR ADJUST (0.5MM)
  • 52
    30-8528001 BEARING, Roller, REVERSE GEAR
    BEARING, Roller, REVERSE GEAR
  • 53
    25-15377M O-RING
    SN# M-060864/ML-389233/MUL-702829 & Up
    O-RING
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 53
    25-15377M O-RING
    SN# M-060863/ML-389232/MUL-702828 & Below
    O-RING
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 54
    26-82226M SEAL, Oil
    SEAL, Oil
  • 55
    82548M CAP, LOWER CASING
    CAP, LOWER CASING
  • 56
    17-81901M PIN, Drive
    PIN, Drive
  • 57
    23-82021M SLEEVE (SHORT AND LONG)
    SLEEVE (SHORT AND LONG)
  • 58
    32-82547M TUBE, Water (SHORT-373MM)
    TUBE, Water (SHORT-373MM)
  • 58
    32-81079M TUBE, Water (LONG-513MM)
    TUBE, Water (LONG-513MM)
  • 58
    32-83745M TUBE, WATER (ULTRA LONG-563MM)
    TUBE, WATER (ULTRA LONG-563MM)
  • 58
    32-83752M TUBE, WATER (SUPER ULTRA LONG-640MM)
    TUBE, WATER (SUPER ULTRA LONG-640MM)
  • 59
    26-81080M RUBBER, WATER SEAL
    RUBBER, WATER SEAL
  • 60
    81081M SET PLATE, WATER TUBE
    SET PLATE, WATER TUBE
  • 61
    859931 PROP NUT, PROPELLER
    PROP NUT, PROPELLER
  • 62
    18-82132M COTTER PIN
    COTTER PIN
  • 63
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 64
    10-84058M BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 65
    12-82214M WASHER
    WASHER
  • -
    27-84172M GASKET SET, Lower Unit
    GASKET SET, Lower Unit
  • 84181T REPAIR KIT
    REPAIR KIT
  • -
    95615M PUMP KIT, Water Pump - Chrome
    PUMP KIT, Water Pump - Chrome
  • -
    27-84161M GASKET SET
    GASKET SET
