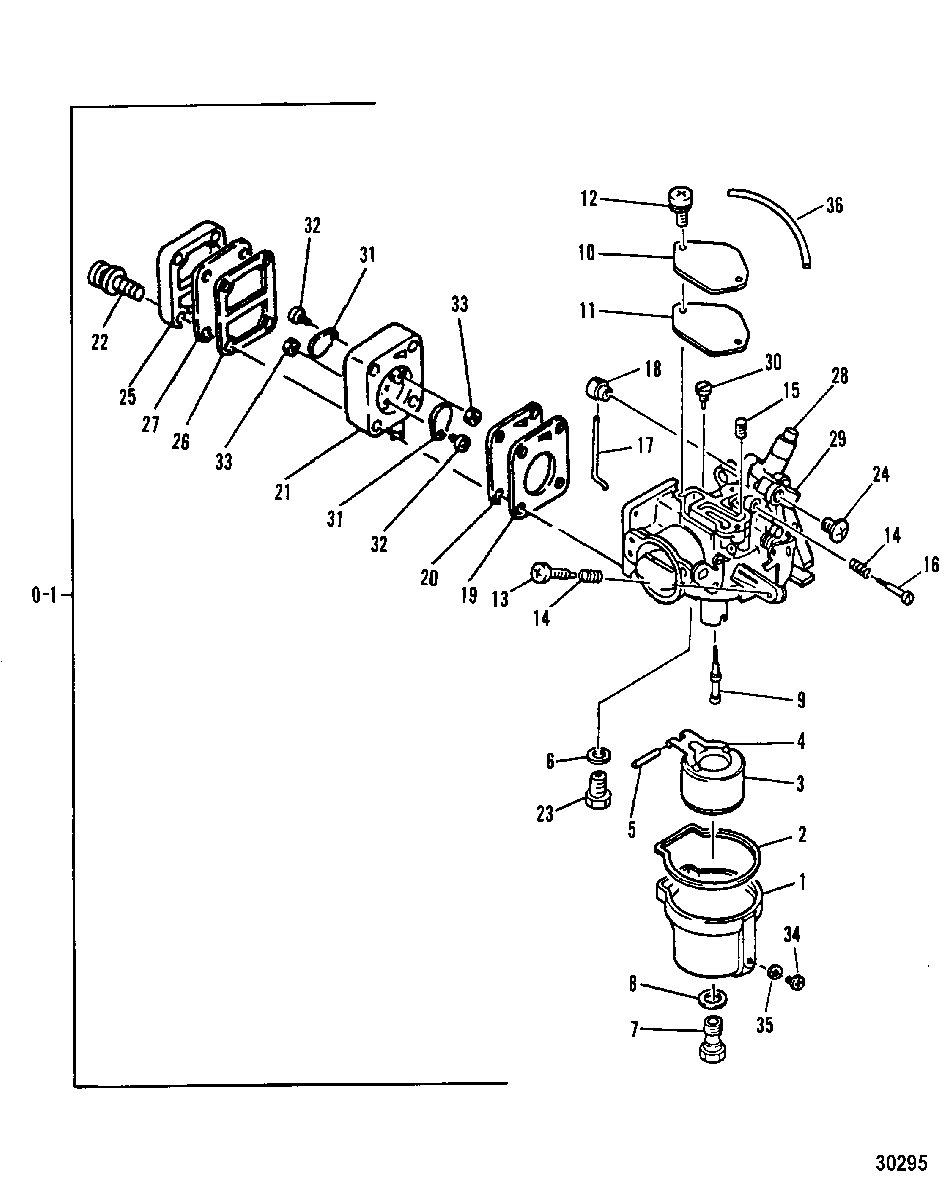

CARBURETOR для Mariner - W8 (SUL)(W/Marathon) 677-702821 & Up

  • №
    Артикул
    Название
  • 0-1
    1383-9523M CARBURETOR ASSEMBLY
    SN# M-059525/ML-387112/MUL-702821 & Up
    CARBURETOR ASSEMBLY
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 0-1
    1383-9523M CARBURETOR ASSEMBLY
    SN# M-059524/ML-387111/MUL-702820 & Below
    CARBURETOR ASSEMBLY
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 1
    14217M FLOAT BOWL
    SN# M-059525/ML-387112/MUL-702821 & Up
    FLOAT BOWL
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 1
    84252M FLOAT BOWL
    SN# M-059524/ML-387111/MUL-702820 & Below
    FLOAT BOWL
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 2
    27-43115M GASKET, FLOAT CHAMBER
    GASKET, FLOAT CHAMBER
  • 3
    14180M FLAOT
    SN# M-059525/ML-387112/MUL-702821 & Up
    FLAOT
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 3
    80450M FLOAT
    SN# M-059524/ML-387111/MUL-702820 & Below
    FLOAT
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 4
    80202M FLOAT ARM
    SN# M-059524/ML-387111/MUL-702820 & Below
    FLOAT ARM
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 5
    17-80451M PIN, FLOAT
    SN# M-059525/ML-387112/MUL-702821 & Up
    PIN, FLOAT
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 5
    17-80451M PIN, FLOAT
    SN# M-059524/ML-387111/MUL-702820 & Below
    PIN, FLOAT
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 6
    12-80261M WASHER, VALVE SEAT
    WASHER, VALVE SEAT
  • 7
    10-83289M MAIN JET, (#80)
    SN# M-059525/ML-387112/MUL-702821 & Up
    MAIN JET, (#80)
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 7
    10-84670M JET, Main (#78)
    SN# M-059524/ML-387111/MUL-702820 & Below
    JET, Main (#78)
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 8
    27-80267 GASKET
    GASKET
  • 9
    14272M NOZZLE, MAIN (#66)
    SN# M-059525/ML-387112/MUL-702821 & Up
    NOZZLE, MAIN (#66)
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 9
    94664M NOZZLE, MAIN (#66)
    SN# M-059524/ML-387111/MUL-702820 & Below
    NOZZLE, MAIN (#66)
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 10
    84258M PLATE
    PLATE
  • 11
    27-84259M GASKET
    GASKET
  • 12
    10-83509M SCREW
    SCREW
  • 13
    10-83509M SCREW, IDLE SPEED
    SCREW, IDLE SPEED
  • 14
    24-814460M SPRING
    SPRING
  • 15
    95404M JET, Pilot (#44)
    SN# M-057971/ML-383909/MUL-702821 & Up
    JET, Pilot (#44)
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 15
    94665M JET, Pilot (#42)
    SN# M-057970/ML-383908/MUL-702820 & Below
    JET, Pilot (#42)
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 16
    10-80573M SCREW, IDLE MIXTURE
    SCREW, IDLE MIXTURE
  • 17
    83299M ROD
    ROD
  • 18
    83300M RETAINER, LEVER END
    RETAINER, LEVER END
  • 19
    27-815009 GASKET, PUMP
    GASKET, PUMP
  • 20
    84262M DIAPHRAGM, PUMP
    DIAPHRAGM, PUMP
  • 21
    99966M COVER, PUMP
    COVER, PUMP
  • 22
    10-80954M SCREW
    SCREW
  • 23
    14216M VALVE SEAT
    SN# M-059525/ML-387112/MUL-702821 & Up
    VALVE SEAT
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 23
    11930M SEAT, Valve
    SN# M-057971/ML-383909 THRU M-059524/ML-387111
    SEAT, Valve
    SN# M-057971/ML-383909 THRU M-059524/ML-387111
  • 23
    80447M VALVE SEAT ASSEMBLY
    SN# M-057970/ML-383908/MUL-702820 & Below
    VALVE SEAT ASSEMBLY
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 24
    10-80091M SCREW
    SCREW
  • 25
    84266M COVER, PUMP
    COVER, PUMP
  • 26
    27-84264 GASKET, COVER
    GASKET, COVER
  • 27
    84265M DIAPHRAGM, PUMP
    DIAPHRAGM, PUMP
  • 28
    23-80227M BUSHING, GUIDE PIN
    BUSHING, GUIDE PIN
  • 29
    81148M ARM ASSEMBLY, Throttle
    ARM ASSEMBLY, Throttle
  • 30
    10-80434M SCREW
    SCREW
  • 31
    21-41888M CHECK VALVE
    CHECK VALVE
  • 32
    10-11837M SCREW
    SN# M-057971/ML-383909/MUL-702821 & Up
    SCREW
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 32
    10-813484M SCREW
    SN# M-057970/ML-383908/MUL-702820 & Below
    SCREW
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 33
    11-82537M NUT
    NUT
  • 34
    10-82512M SCREW
    SN# M-059525/ML-387112/MUL-702821 & Up
    SCREW
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 35
    27-14218M GASKET
    SN# M-059525/ML-387112/MUL-702821 & Up
    GASKET
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 36
    14281M TUBE
    SN# M-059525/ML-387112/MUL-702821 & Up
    TUBE
    SN# M-059525/ML-387112/MUL-702821 & Up
  • -
    814480M REPAIR KIT
    SN# M-059525/ML-387112/MUL-702821 & Up
    REPAIR KIT
    SN# M-059525/ML-387112/MUL-702821 & Up
  • -
    84473T REPAIR KIT
    SN# M-059524/ML-387111/MUL-702820 & Below
    REPAIR KIT
    SN# M-059524/ML-387111/MUL-702820 & Below
