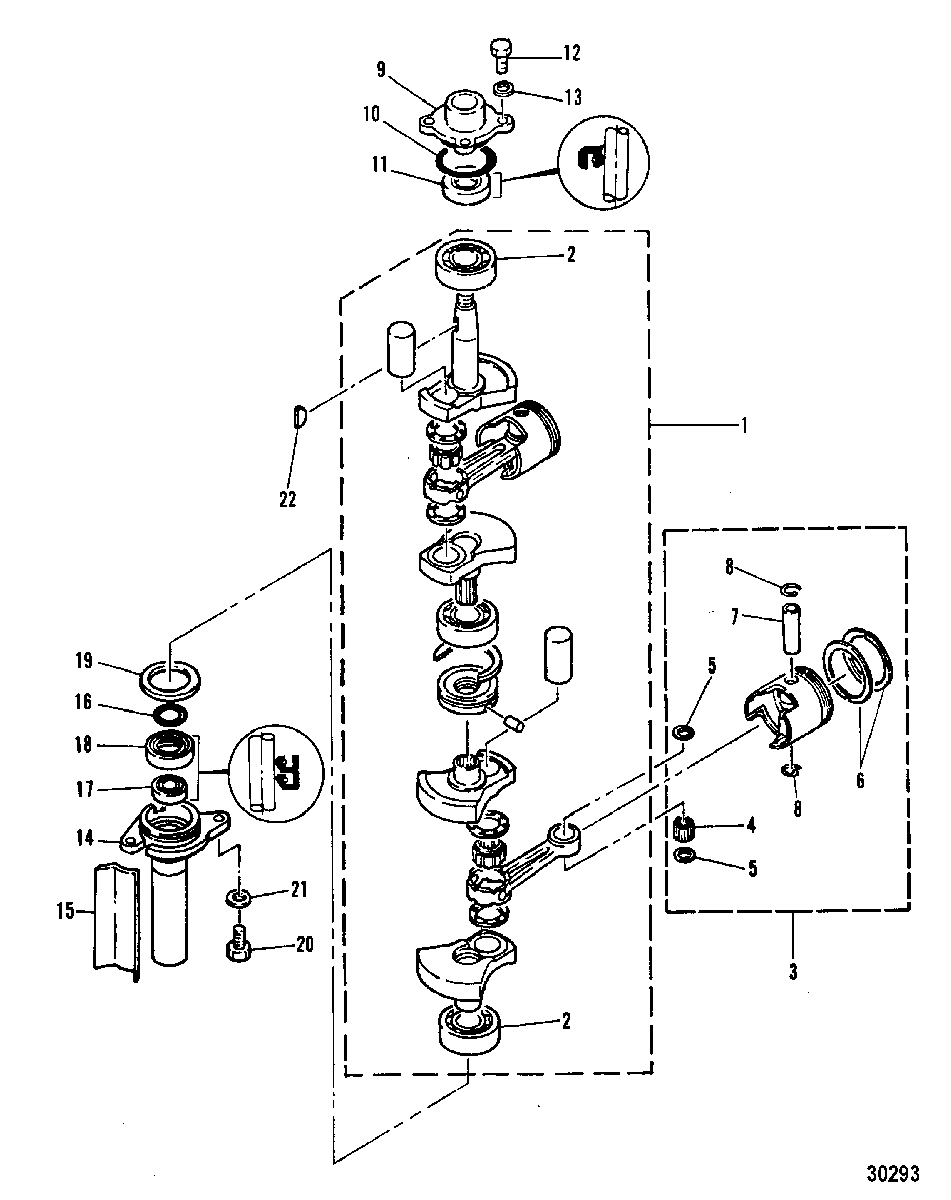

CRANKSHAFT AND PISTON для Mariner - W8 (SUL)(W/Marathon) 677-702821 & Up

  • №
    Артикул
    Название
  • 1
    463-9380M CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-18859T BEARING
    BEARING
  • 3
    761-8224M PISTON (STD)
    PISTON (STD)
  • 3
    761-8225M PISTON (1ST O.S. 51.25MM)
    PISTON (1ST O.S. 51.25MM)
  • 3
    761-8226M PISTON (2ND O.S. 51.50MM)
    PISTON (2ND O.S. 51.50MM)
  • 4
    29-82350M BEARING, Needle
    BEARING, Needle
  • 5
    12-81816M WASHER
    WASHER
  • 6
    39-80422T RING SET, Piston (STD)
    RING SET, Piston (STD)
  • 6
    39-80423T RING SET, Piston (1ST O.S. 51.25MM)
    RING SET, Piston (1ST O.S. 51.25MM)
  • 6
    39-80424M RING SET, Piston (2ND O.S. 51.50MM)
    RING SET, Piston (2ND O.S. 51.50MM)
  • 7
    41-80005M PIN, PISTON
    PIN, PISTON
  • 8
    53-82342M CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 9
    83246M HOUSING, OIL SEAL UPPER
    HOUSING, OIL SEAL UPPER
  • 10
    25-82276M O-RING
    O-RING
  • 11
    26-14195M SEAL, Oil, UPPER
    SN# M-059525/ML-387112/MUL-702821 & Up
    SEAL, Oil, UPPER
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 11
    26-18843M SEAL, Oil, UPPER
    SN# M-059524/ML-387111/MUL-702820 & Below
    SEAL, Oil, UPPER
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 12
    10-82423M BOLT
    BOLT
  • 13
    12-82214M WASHER
    WASHER
  • 14
    814493M HOUSING, OIL SEAL LOWER
    HOUSING, OIL SEAL LOWER
  • 15
    26-94662M SEAL
    SEAL
  • 16
    25-95602M O-RING
    O-RING
  • 17
    26-82165M SEAL, Oil
    SEAL, Oil
  • 18
    26-18843M SEAL, Oil, LOWER
    SEAL, Oil, LOWER
  • 19
    23-81841M WASHER
    WASHER
  • 20
    10-826957M BOLT
    BOLT
  • 21
    12-82214M WASHER
    WASHER
  • 22
    28-893761 KEY, FLYWHEEL
    KEY, FLYWHEEL
