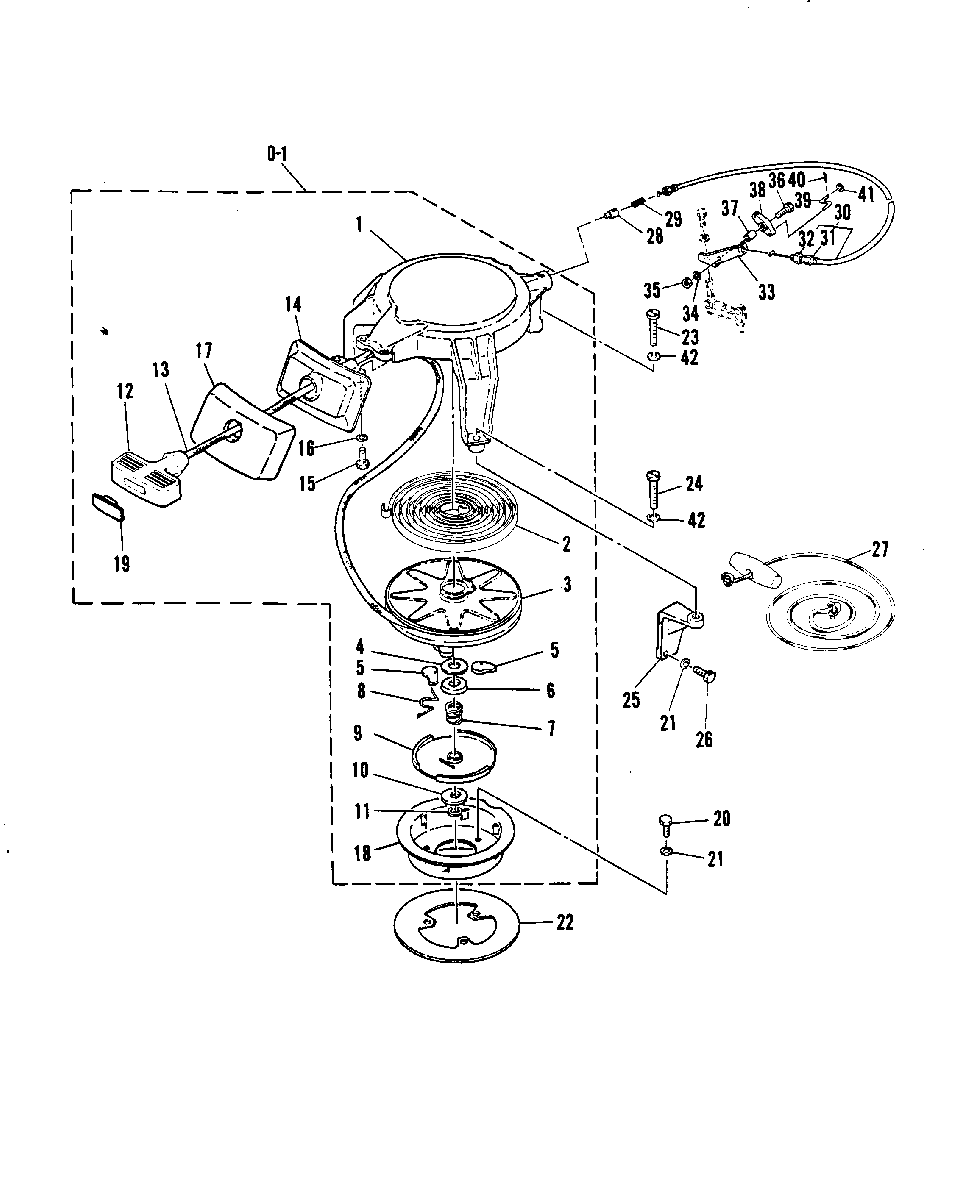

RECOIL STARTER для Mariner - W15 662-304411 AND UP

  • №
    Артикул
    Название
  • 0-1
    50-97125M STARTER ASS'Y
    SERIAL 00002086-09999999
    STARTER ASS'Y
    SERIAL 00002086-09999999
  • 0-1
    50-84499M STARTER ASS'Y
    SERIAL 00000000-00002085
    STARTER ASS'Y
    SERIAL 00000000-00002085
  • 1
    2169-7174M HOUSING, STARTER .
    SERIAL 00004784-09999999
    HOUSING, STARTER .
    SERIAL 00004784-09999999
  • 1
    2169-7174M HOUSING, STARTER .
    SERIAL 00000000-00004783
    HOUSING, STARTER .
    SERIAL 00000000-00004783
  • 2
    24-80207M SPRING, STARTER
    SPRING, STARTER
  • 3
    50-80208M SHEAVE, STARTER
    SERIAL 00004326-09999999
    SHEAVE, STARTER
    SERIAL 00004326-09999999
  • 3
    50-84500M SHEAVE, STARTER
    SERIAL 00000000-00004325
    SHEAVE, STARTER
    SERIAL 00000000-00004325
  • 4
    12-80213M WASHER, THRUST
    WASHER, THRUST
  • 5
    80214M PAWL, STARTER
    PAWL, STARTER
  • 6
    12-80211M WASHER, THRUST PLATE SPRING
    WASHER, THRUST PLATE SPRING
  • 7
    24-80209M SPRING, DRIVE PLATE
    SPRING, DRIVE PLATE
  • 8
    24-81696M SPRING, STARTER PAWL
    SPRING, STARTER PAWL
  • 9
    80210M DRIVE, PLATE
    DRIVE, PLATE
  • 10
    12-80212M WASHER
    WASHER
  • 11
    53-81693M SNAP RING
    SNAP RING
  • 12
    814491A1 HANDLE, STARTER
    HANDLE, STARTER
  • 13
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 14
    94669M GUIDE, ROPE .
    SERIAL 00002086-09999999
    GUIDE, ROPE .
    SERIAL 00002086-09999999
  • 14
    81218M GUIDE, ROPE .
    SERIAL 00000000-00002085
    GUIDE, ROPE .
    SERIAL 00000000-00002085
  • 15
    10-826957M BOLT
    BOLT
  • 16
    13-82212M LOCKWASHER
    LOCKWASHER
  • 17
    26-43087M SEAL
    SEAL
  • 18
    84501M PULLEY, STARTER
    PULLEY, STARTER
  • 19
    814491A1 COVER .
    SERIAL 00004326-09999999
    COVER .
    SERIAL 00004326-09999999
  • 20
    10-84211M BOLT
    BOLT
  • 21
    13-82212M LOCKWASHER
    LOCKWASHER
  • 22
    81247M BASE, STARTER PULLEY
    BASE, STARTER PULLEY
  • 23
    10-83285M BOLT
    BOLT
  • 24
    10-82405M BOLT
    BOLT
  • 25
    81219M BRACKET, STARTER HOUSING
    BRACKET, STARTER HOUSING
  • 26
    10-84058M BOLT
    BOLT
  • 27
    47341A11 EMERGENCY STARTER ROPE
    EMERGENCY STARTER ROPE
  • 28
    81106M PLUNGER
    PLUNGER
  • 29
    24-82079M SPRING
    SPRING
  • 30
    84-43088M STARTER LOCKOUT WIRE ASS'Y
    SERIAL 00004326-09999999
    STARTER LOCKOUT WIRE ASS'Y
    SERIAL 00004326-09999999
  • 30
    84-84502M STARTER LOCKOUT WIRE ASS'Y
    SERIAL 00000000-00004325
    STARTER LOCKOUT WIRE ASS'Y
    SERIAL 00000000-00004325
  • 31
    10-81746M ADJUSTING COLLAR
    ADJUSTING COLLAR
  • 32
    11-82389M NUT
    NUT
  • 33
    84503M BRACKET
    BRACKET
  • 34
    13-82212M LOCKWASHER
    LOCKWASHER
  • 35
    11-82389M NUT
    NUT
  • 36
    10-82405M BOLT
    BOLT
  • 37
    23-84055M BISJOMG
    BISJOMG
  • 38
    84504M ARM, LINK
    ARM, LINK
  • 39
    84505M LINK
    LINK
  • 40
    18-43089M PIN, COTTER
    PIN, COTTER
  • 41
    12-82209M WASHER
    WASHER
  • 42
    12-82214M WASHER
    SERIAL 00005135-09999999
    WASHER
    SERIAL 00005135-09999999
