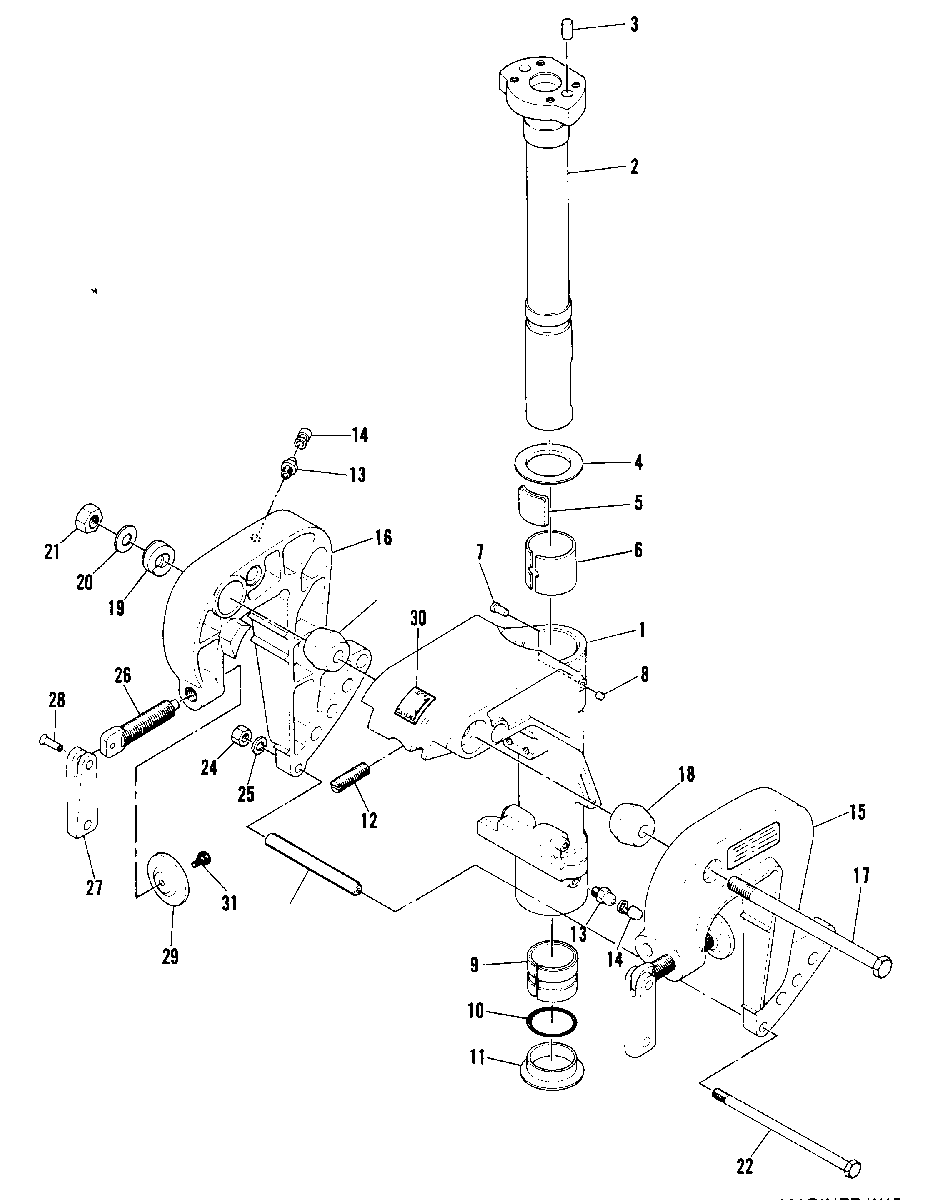

CLAMP AND SWIVEL BRACKET для Mariner - W15 662-304411 AND UP

  • №
    Артикул
    Название
  • 1
    1485-6756M SWIVEL BRACKET
    SWIVEL BRACKET
  • 2
    80880M SHAFT, STEERING PIVOT
    SHAFT, STEERING PIVOT
  • 3
    17-82368M PIN, DOWEL
    PIN, DOWEL
  • 4
    12-81872M COLLAR, THRUST (PIVOT SHAFT)
    COLLAR, THRUST (PIVOT SHAFT)
  • 5
    80225M PLATE, FRICTION
    PLATE, FRICTION
  • 6
    23-81960M BUSHING, PIVOT SHAFT (UPPER)
    BUSHING, PIVOT SHAFT (UPPER)
  • 7
    17-81887M PIN
    PIN
  • 8
    22-81917M PLUG
    PLUG
  • 9
    23-81956M BUSHING, PIVOT SHAFT (LOWER)
    BUSHING, PIVOT SHAFT (LOWER)
  • 10
    25-82273M O-RING, PIVOT SHAFT BUSHING
    O-RING, PIVOT SHAFT BUSHING
  • 11
    23-81958M COLLAR, THRUST (PIVOT SHAFT)
    COLLAR, THRUST (PIVOT SHAFT)
  • 12
    10-81721M SCREW
    SCREW
  • 13
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 14
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 15
    1484-9064M CLAMP BRACKET (PORT)
    SERIAL 00004326-09999999
    CLAMP BRACKET (PORT)
    SERIAL 00004326-09999999
  • 15
    1484-6754M CLAMP BRACKET (PORT)
    SERIAL 00000000-00004325
    CLAMP BRACKET (PORT)
    SERIAL 00000000-00004325
  • 16
    1484-9065M CLAMP BRACKET (STARBOARD)
    SERIAL 00004326-09999999
    CLAMP BRACKET (STARBOARD)
    SERIAL 00004326-09999999
  • 16
    1484-6755M CLAMP BRACKET (STARBOARD)
    SERIAL 00000000-00004325
    CLAMP BRACKET (STARBOARD)
    SERIAL 00000000-00004325
  • 17
    10-81708M BOLT
    BOLT
  • 18
    80230M MOUNT, RUBBER CLAMP BRACKET
    MOUNT, RUBBER CLAMP BRACKET
  • 19
    24-82101M SPRING
    SPRING
  • 20
    12-81806M WASHER
    WASHER
  • 21
    11-82395M NUT
    NUT
  • 22
    10-82921M BOLT, CLAMP BRACKET
    BOLT, CLAMP BRACKET
  • 23
    23-82116M SPACER, CLAMP BRACKET BOLT
    SPACER, CLAMP BRACKET BOLT
  • 24
    11-82389M NUT
    NUT
  • 25
    13-82212M LOCKWASHER
    LOCKWASHER
  • 26
    10-43098M SCREW, TRANSOM CLAMP
    SERIAL 00004326-09999999
    SCREW, TRANSOM CLAMP
    SERIAL 00004326-09999999
  • 26
    10-81756M SCREW, TRANSOM CLAMP
    SERIAL 00000000-00004325
    SCREW, TRANSOM CLAMP
    SERIAL 00000000-00004325
  • 27
    809959M HANDLE, TRANSOM CLAMP SCREW
    HANDLE, TRANSOM CLAMP SCREW
  • 28
    17-81888M PIN
    PIN
  • 29
    12-43099M PAD, TRANSOM CLAMP SCREW
    SERIAL 00004326-09999999
    PAD, TRANSOM CLAMP SCREW
    SERIAL 00004326-09999999
  • 29
    12-80638M PAD, TRANSOM CLAMP SCREW
    SERIAL 00000000-00004325
    PAD, TRANSOM CLAMP SCREW
    SERIAL 00000000-00004325
  • 30
    83713M INDICATOR
    INDICATOR
  • 31
    10-43097M BOLT
    SERIAL 00004326-09999999
    BOLT
    SERIAL 00004326-09999999
