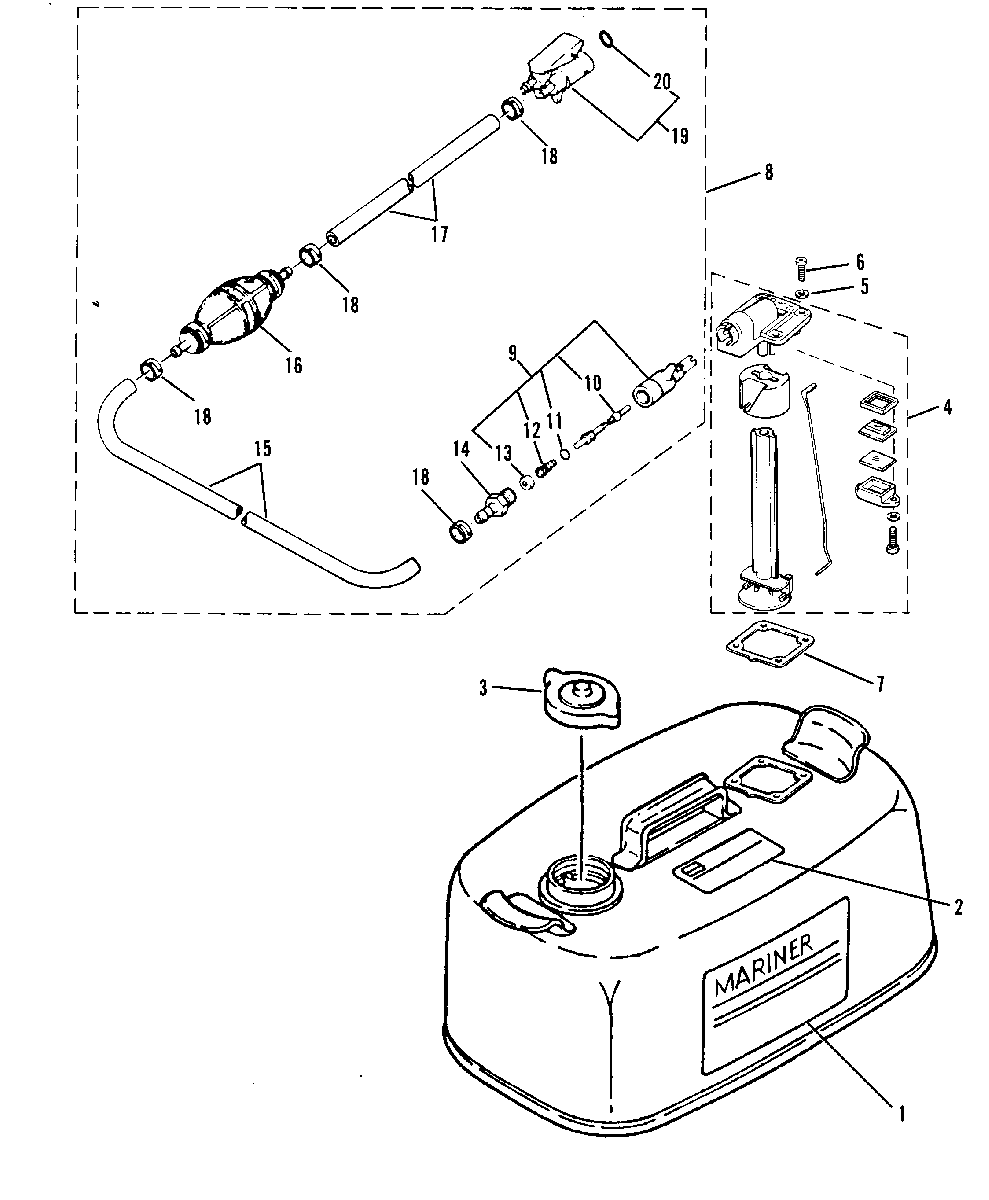

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - W15 662-304411 AND UP

  • №
    Артикул
    Название
  • 1
    37-14617M DECAL, SIDE (ENGLISH)
    SERIAL 00004957-09999999
    DECAL, SIDE (ENGLISH)
    SERIAL 00004957-09999999
  • 1
    37-14617M DECAL, SIDE (ENGLISH)
    SERIAL 00000000-00004956
    DECAL, SIDE (ENGLISH)
    SERIAL 00000000-00004956
  • 1
    37-95504M DECAL, SIDE (FRENCH)
    DECAL, SIDE (FRENCH)
  • 2
    37-95489M DECAL, TOP (ENGLISH)
    DECAL, TOP (ENGLISH)
  • 2
    37-95503M DECAL, TOP (FRENCH)
    DECAL, TOP (FRENCH)
  • 3
    36-18962M FUEL TANK CAP
    SERIAL 00004957-09999999
    FUEL TANK CAP
    SERIAL 00004957-09999999
  • 3
    36-18962M FUEL TANK CAP
    SERIAL 00000000-00004956
    FUEL TANK CAP
    SERIAL 00000000-00004956
  • 4
    95499M FUEL METER ASS'Y
    FUEL METER ASS'Y
  • 5
    12-95501M SEAL
    SEAL
  • 6
    10-95502M SCREW
    SCREW
  • 7
    27-95500M GASKET, FUEL METER ASS'Y
    GASKET, FUEL METER ASS'Y
  • 8
    32-17143M FUEL LINE ASS'Y
    SERIAL 00015135-09999999
    FUEL LINE ASS'Y
    SERIAL 00015135-09999999
  • 8
    32-17143M FUEL LINE ASS'Y
    SERIAL 00000000-00015134
    FUEL LINE ASS'Y
    SERIAL 00000000-00015134
  • 9
    30185Q3 BAYONET BODY ASS'Y
    BAYONET BODY ASS'Y
  • 10
    30185Q3 STEM, BAYONET BODY
    STEM, BAYONET BODY
  • 11
    25-16524 O-RING, BAYONET BODY STEM
    O-RING, BAYONET BODY STEM
  • 12
    24-30189 SPRING, BAYONET BODY ASS'Y
    SPRING, BAYONET BODY ASS'Y
  • 13
    30188 WASHER, CAP
    WASHER, CAP
  • 14
    22-63187 FITTING, FUEL LINE
    FITTING, FUEL LINE
  • 15
    32-94727M HOSE, CONNECTOR HOUSING TO BULB .
    SERIAL 00005135-09999999
    HOSE, CONNECTOR HOUSING TO BULB .
    SERIAL 00005135-09999999
  • 15
    32-94727M HOSE, CONNECTOR HOUSING TO BULB .
    SERIAL 00004957-00005134
    HOSE, CONNECTOR HOUSING TO BULB .
    SERIAL 00004957-00005134
  • 15
    32-94727M HOSE, CONNECTOR HOUSING TO BULB .
    SERIAL 00000000-00004956
    HOSE, CONNECTOR HOUSING TO BULB .
    SERIAL 00000000-00004956
  • 16
    89396Q01 BULB, PRIMER .
    SERIAL 00005135-09999999
    BULB, PRIMER .
    SERIAL 00005135-09999999
  • 16
    89396Q01 BULB, PRIMER .
    SERIAL 00004957-00005134
    BULB, PRIMER .
    SERIAL 00004957-00005134
  • 17
    32-94727M HOSE BULB TO ENGINE CONNECTOR .
    SERIAL 00005135-09999999
    HOSE BULB TO ENGINE CONNECTOR .
    SERIAL 00005135-09999999
  • 17
    32-94727M HOSE BULB TO ENGINE CONNECTOR .
    SERIAL 00004957-00005134
    HOSE BULB TO ENGINE CONNECTOR .
    SERIAL 00004957-00005134
  • 17
    32-94727M HOSE BULB TO ENGINE CONNECTOR .
    SERIAL 00000000-00004956
    HOSE BULB TO ENGINE CONNECTOR .
    SERIAL 00000000-00004956
  • 18
    54-16725M CLAMP, HOSE
    CLAMP, HOSE
  • 19
    95569M FUEL CONNECTOR .
    SERIAL 00005135-09999999
    FUEL CONNECTOR .
    SERIAL 00005135-09999999
  • 19
    80751M FUEL CONNECTOR, ENGINE END
    SERIAL 00000000-00005134
    FUEL CONNECTOR, ENGINE END
    SERIAL 00000000-00005134
  • 20
    25-82789M O-RING
    SERIAL 00005135-09999999
    O-RING
    SERIAL 00005135-09999999
