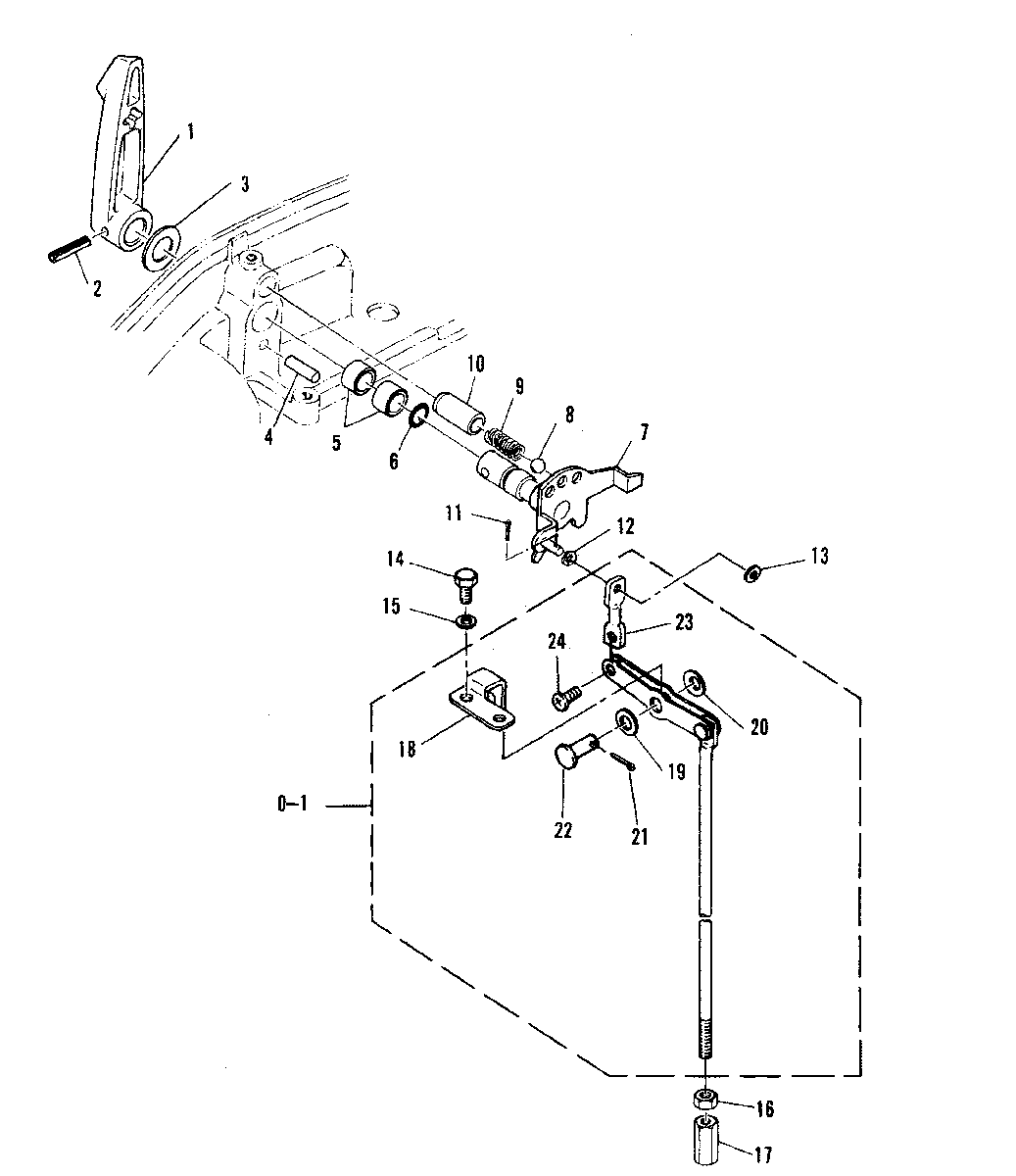

GEAR SHIFT LINKAGE для Mariner - W15 (M) 662-02241 THRU 662-001845

  • №
    Артикул
    Название
  • 1
    80893M HANDLE, GEAR SHIFT
    HANDLE, GEAR SHIFT
  • 2
    17-82158M PIN
    PIN
  • 3
    12-81856M WASHER
    WASHER
  • 4
    17-82366M PIN, DOWEL
    SERIAL 00000000-00003740
    PIN, DOWEL
    SERIAL 00000000-00003740
  • 5
    23-81934M BUSHING, SHIFT CAM
    BUSHING, SHIFT CAM
  • 6
    25-82264M O-RING, SHIFT CAM
    O-RING, SHIFT CAM
  • 7
    84495M CAM, SHIFT
    SERIAL 00000101-09999999
    CAM, SHIFT
    SERIAL 00000101-09999999
  • 7
    80894M CAM, SHIFT
    SERIAL 00000000-00000100
    CAM, SHIFT
    SERIAL 00000000-00000100
  • 8
    82347M BALL, SHIFT DETENT
    BALL, SHIFT DETENT
  • 9
    24-82082M SPRING, SHIFT DETENT
    SPRING, SHIFT DETENT
  • 10
    23-80228M RETAINER, SHIFT DETENT
    RETAINER, SHIFT DETENT
  • 11
    18-43089M PIN, COTTER
    SERIAL 00000101-09999999
    PIN, COTTER
    SERIAL 00000101-09999999
  • 11
    18-82128M PIN, COTTER
    SERIAL 00000000-00000100
    PIN, COTTER
    SERIAL 00000000-00000100
  • 12
    13-81865M WASHER, WAVE
    WASHER, WAVE
  • 13
    12-82211M WASHER
    WASHER
  • 14
    10-84058M BOLT
    SERIAL 00000101-09999999
    BOLT
    SERIAL 00000101-09999999
  • 14
    10-826957M BOLT
    SERIAL 00000000-00000100
    BOLT
    SERIAL 00000000-00000100
  • 15
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 16
    11-82390M NUT
    NUT
  • 17
    11-81763M CONNECTOR, ADJUSTING NUT
    CONNECTOR, ADJUSTING NUT
  • 0-1
    84496M SHIFT ROD ASS'Y
    SERIAL 00000101-09999999
    SHIFT ROD ASS'Y
    SERIAL 00000101-09999999
  • 0-1
    80892M SHIFT ROD ASS'Y
    SERIAL 00000000-00000100
    SHIFT ROD ASS'Y
    SERIAL 00000000-00000100
  • 18
    80896M BRACKET (SHIFT SHAFT)
    BRACKET (SHIFT SHAFT)
  • 19
    13-81867M WASHER, LOCK
    WASHER, LOCK
  • 20
    12-82217M WASHER
    WASHER
  • 21
    18-84301M PIN, COTTER
    PIN, COTTER
  • 22
    17-81886M PIN
    PIN
  • 23
    84497M LINKAGE, SHIFT
    SERIAL 00000101-09999999
    LINKAGE, SHIFT
    SERIAL 00000101-09999999
  • 24
    10-80485M SET SCREW
    SERIAL 00000101-09999999
    SET SCREW
    SERIAL 00000101-09999999
