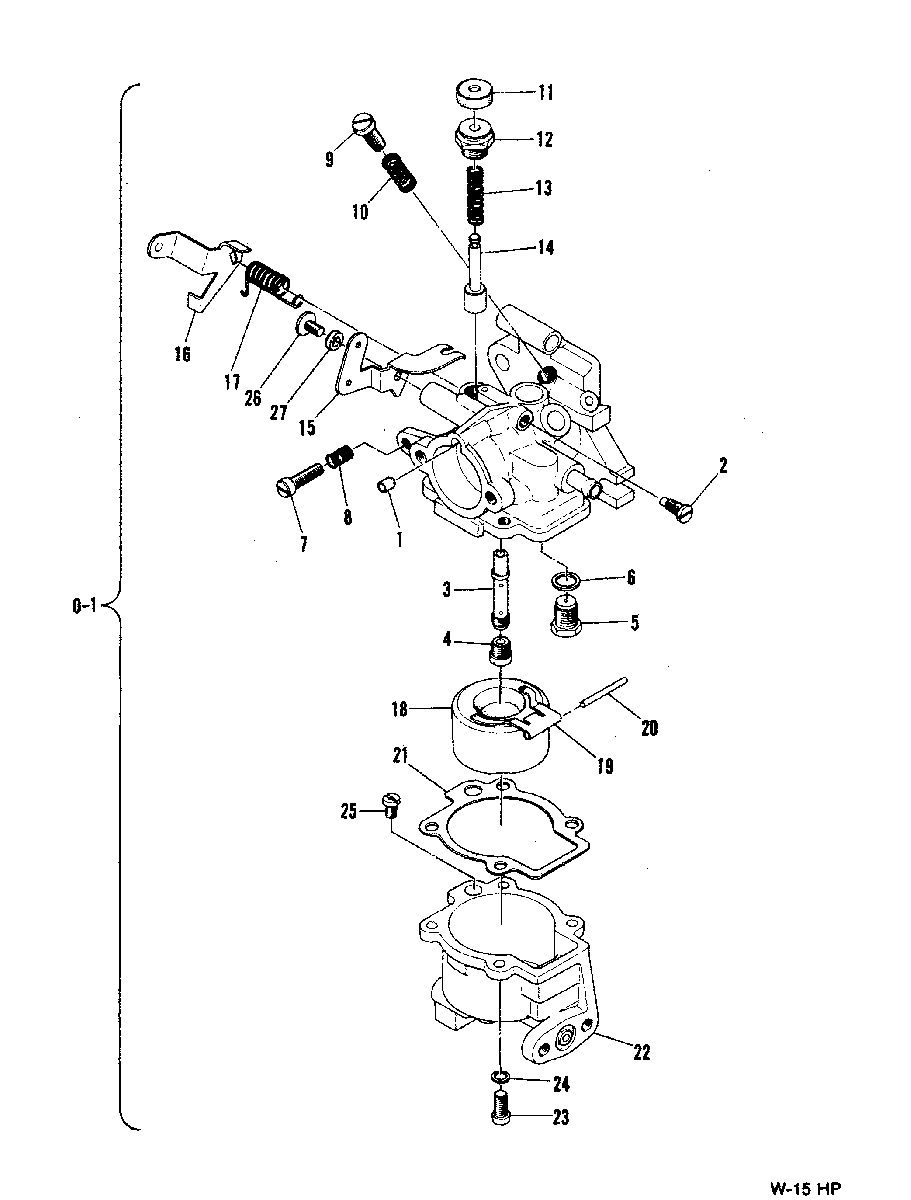

CARBURETOR для Mariner - W15 (M) 662-02241 THRU 662-001845

  • №
    Артикул
    Название
  • 0-1
    1383-6819M CARBURETOR ASS'Y
    CARBURETOR ASS'Y
  • 1
    80585M AIR JET, LOW SPEED
    AIR JET, LOW SPEED
  • 2
    80578M JET, LOW SPEED (#60)
    JET, LOW SPEED (#60)
  • 3
    80941M NOZZLE, MAIN
    NOZZLE, MAIN
  • 4
    80581M JET, MAIN (#135)
    JET, MAIN (#135)
  • 5
    80447M INLET VALVE SEAT ASS'Y
    INLET VALVE SEAT ASS'Y
  • 6
    27-80205M GASKET, VALVE SEAT
    GASKET, VALVE SEAT
  • 7
    10-80738M SCREW, IDLE SPEED
    SCREW, IDLE SPEED
  • 8
    24-80193M SPRING, IDLE SPEED SCREW
    SPRING, IDLE SPEED SCREW
  • 9
    10-80573M SCREW, IDLE MIXTURE
    SCREW, IDLE MIXTURE
  • 10
    24-80575M SPRING, IDLE MIXTURE SCREW
    SPRING, IDLE MIXTURE SCREW
  • 11
    80196M COVER, CHOKE PLUNGER CAP
    COVER, CHOKE PLUNGER CAP
  • 12
    80197M CAP, CHOKE PLUNGER
    CAP, CHOKE PLUNGER
  • 13
    24-80194M SPRING, CHOKE PLUNGER
    SPRING, CHOKE PLUNGER
  • 14
    80195M PLUNGER, CHOKE
    PLUNGER, CHOKE
  • 15
    80198M LEVER, CHOKE
    LEVER, CHOKE
  • 16
    83217M LEVER, THROTTLE
    LEVER, THROTTLE
  • 17
    24-80574M RETURN SPRING, THROTTLE LEVER
    RETURN SPRING, THROTTLE LEVER
  • 18
    80450M FLOAT
    FLOAT
  • 19
    80203M ARM, FLOAT
    ARM, FLOAT
  • 20
    17-80451M PIN, FLOAT
    PIN, FLOAT
  • 21
    27-80740M GASKET, FLOAT BOWL
    GASKET, FLOAT BOWL
  • 22
    83114M BOWL, FLOAT
    BOWL, FLOAT
  • 23
    10-83509M SCREW
    SCREW
  • 24
    13-82206M WASHER, LOCK
    WASHER, LOCK
  • 25
    80584M JET, STARTER
    JET, STARTER
  • 26
    10-83112M SET SCREW
    SET SCREW
  • 27
    83115M COLLAR
    COLLAR
  • 27
    84474M REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS
    REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS
