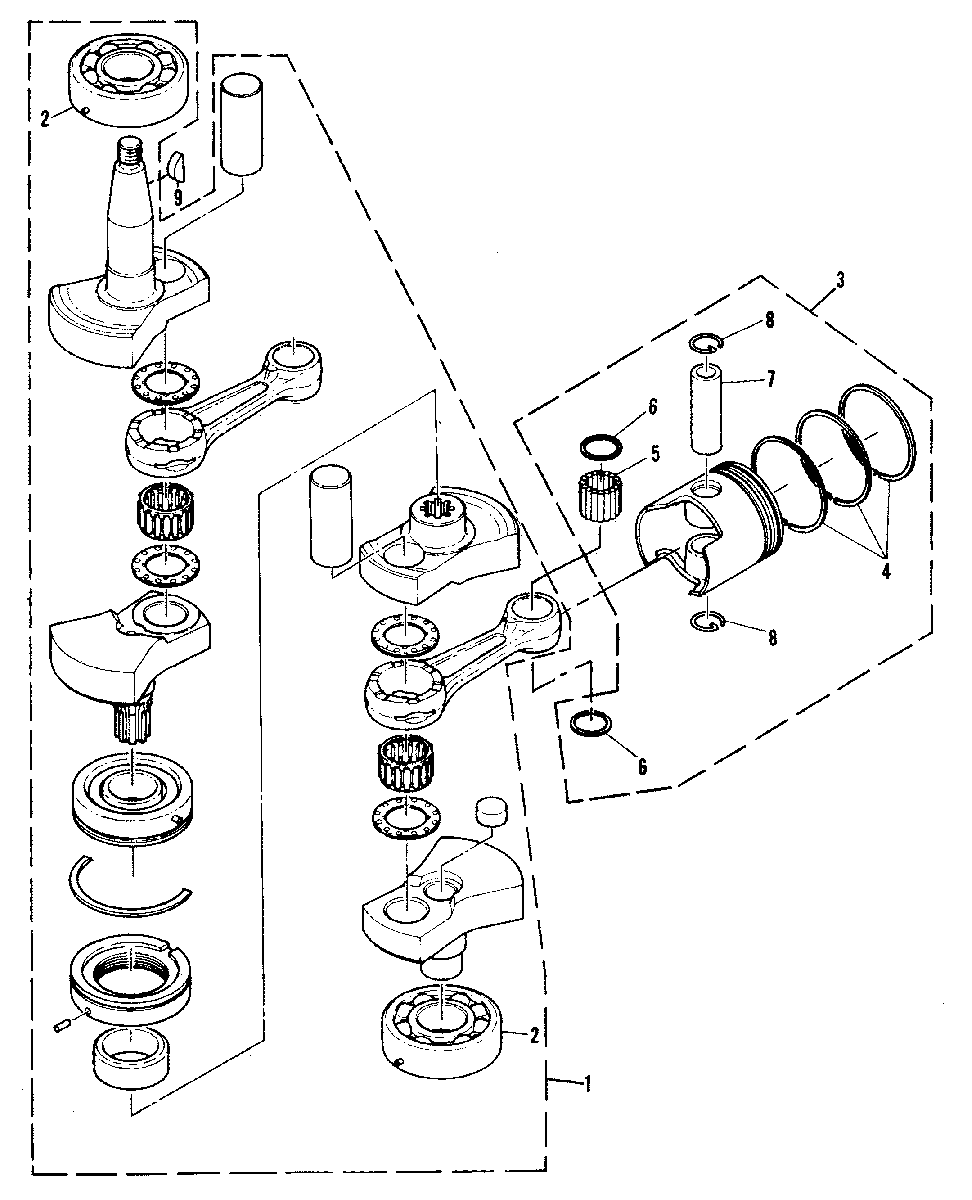

CRANKSHAFT AND PISTON для Mariner - W15 (M) 662-02241 THRU 662-001845
-
№АртикулНазвание
-
12168-8614M CRANKSHAFT ASS'YCRANKSHAFT ASS'Y
-
230-95518T BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
3761-8220M PISTON ASS'Y (STD)PISTON ASS'Y (STD)
-
3761-8221M PISTON ASS'Y (1ST O.S. 56.25 MM)PISTON ASS'Y (1ST O.S. 56.25 MM)
-
3761-8222M PISTON ASS'Y (2ND O.S. 56.50 MM)PISTON ASS'Y (2ND O.S. 56.50 MM)
-
439-83216M PISTON RING SET (STD)PISTON RING SET (STD)
-
439-83711M PISTON RING SET (1ST O.S. 56.25 MM)PISTON RING SET (1ST O.S. 56.25 MM)
-
439-83712M PISTON RING SET (2ND O.S. 56.50 MM)PISTON RING SET (2ND O.S. 56.50 MM)
-
529-82351M BEARINGS, PISTON PINBEARINGS, PISTON PIN
-
612-81826M WASHER, PISTON PINWASHER, PISTON PIN
-
741-80021M PIN, PISTONPIN, PISTON
-
853-82344M CLIP, PISTON PINCLIP, PISTON PIN
-
928-8M0057164 KEY, CRANKSHAFT TO FLYWHEELKEY, CRANKSHAFT TO FLYWHEEL
