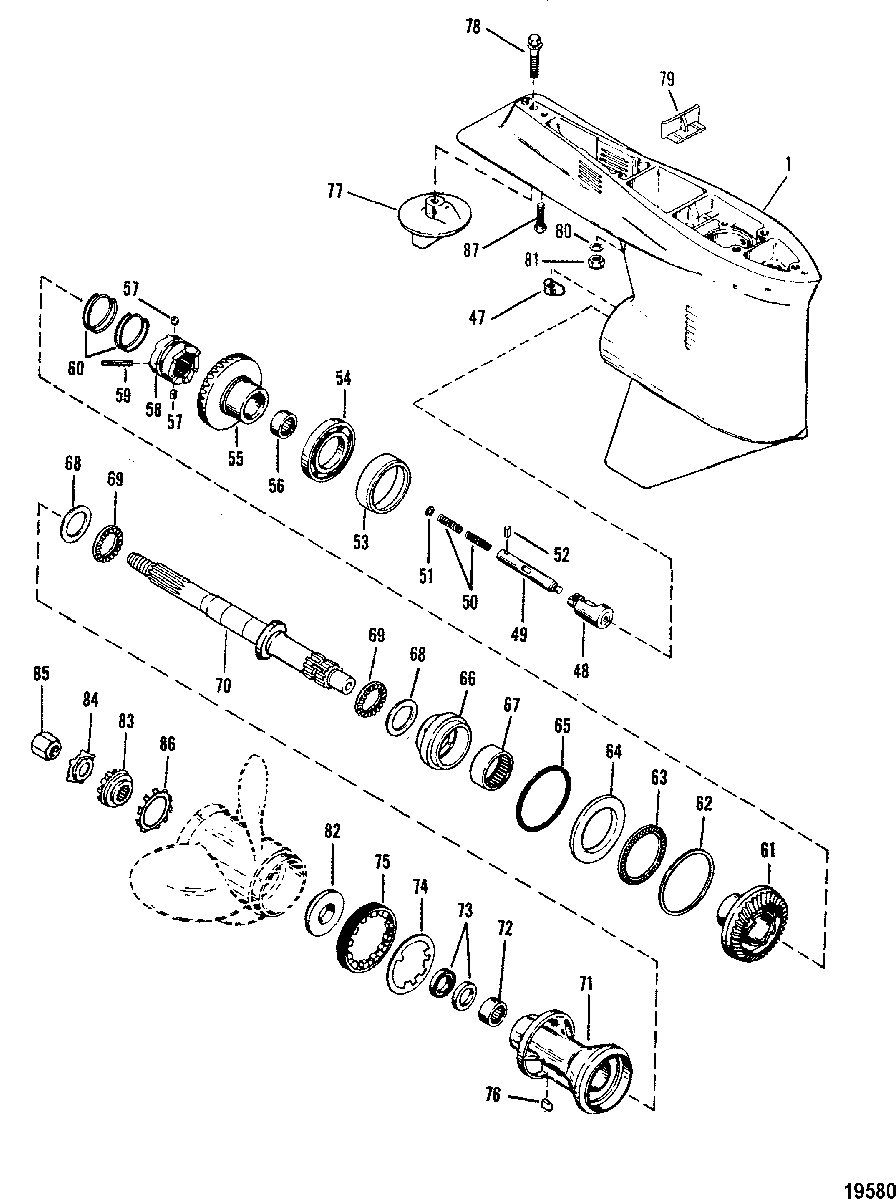

GEAR HOUSING(PROPELLER SHAFT) (COUNTER ROTATION) для Mariner - V-200 0C100861 THRU 0C291519
-
№АртикулНазвание
-
-1647-9148T86 GEAR HOUSING ASSEMBLY, Counter Rotation
(X-LONG) (BLACK)GEAR HOUSING ASSEMBLY, Counter Rotation
(X-LONG) (BLACK) -
-1647-9148T86 GEAR HOUSING ASSEMBLY, Counter Rotation
(X-LONG) (GRAY)GEAR HOUSING ASSEMBLY, Counter Rotation
(X-LONG) (GRAY) -
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC)
(BLACK)GEAR HOUSING ASSEMBLY (BASIC)
(BLACK) -
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC)
(GRAY)GEAR HOUSING ASSEMBLY (BASIC)
(GRAY) -
47789562 SHIFT CAMSHIFT CAM
-
4889594A1 FOLLOWER ASSEMBLY, CAMFOLLOWER ASSEMBLY, CAM
-
4979911A1 ROD, CLUTCH ACTUATORROD, CLUTCH ACTUATOR
-
5024-79910 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5112-78910 WASHER, SPRINGWASHER, SPRING
-
5217-8M0084245 PIN, SPRING LOCATORPIN, SPRING LOCATOR
-
5314469T CUP, BearingCUP, Bearing
-
5430-88957T BEARING, BallBEARING, Ball
-
55N.S.S. Not Sold Separate, Reverse Gear (PART OF 43-18475A1)Not Sold Separate, Reverse Gear (PART OF 43-18475A1)
-
5631-15844 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
5717-78909 PIN, Detent, RATCHETPIN, Detent, RATCHET
-
5852-8M0100493 RATCHET, SLIDIING CLUTCHRATCHET, SLIDIING CLUTCH
-
5917-8M0084243 PIN, Cross, RATCHETPIN, Cross, RATCHET
-
6024-78962 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6143-18475T1 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
6223-176151 SPACER SHIM, (.125)SPACER SHIM, (.125)
-
6223-176152 SPACER SHIM, (.127)SPACER SHIM, (.127)
-
6223-176153 SPACER SHIM, (.129)SPACER SHIM, (.129)
-
6223-176154 SPACER SHIM, (.131)SPACER SHIM, (.131)
-
6223-176155 SPACER SHIM, (.133)SPACER SHIM, (.133)
-
6223-176156 SPACER SHIM, (.135)SPACER SHIM, (.135)
-
6223-176157 SPACER SHIM, (.137)SPACER SHIM, (.137)
-
6223-176158 SPACER SHIM, (.139)SPACER SHIM, (.139)
-
6223-176159 SPACER SHIM, (.141)SPACER SHIM, (.141)
-
6223-1761510 SPACER SHIM, (.143)SPACER SHIM, (.143)
-
6223-1761511 SPACER SHIM, (.145)SPACER SHIM, (.145)
-
6223-1761512 SPACER SHIM, (.147)SPACER SHIM, (.147)
-
6223-1761513 SPACER SHIM, (.149)SPACER SHIM, (.149)
-
6331-15841 BEARING, RollerBEARING, Roller
-
6412-17616 THRUST RINGTHRUST RING
-
6525-31534 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6618447T2 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
6731-15843T BEARING, RollerBEARING, Roller
-
6812-18448 THRUST WASHERTHRUST WASHER
-
6931-15842 BEARING, ThrustBEARING, Thrust
-
7044-18446 PROPELLER SHAFTPROPELLER SHAFT
-
71818896T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
7231-30956T BEARING, Needle, BEARING CARRIERBEARING, Needle, BEARING CARRIER
-
7326-76868 SEAL, BEARING CARRIERSEAL, BEARING CARRIER
-
7414-79447 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
758M2000347 RETAINER, GEAR HOUSINGRETAINER, GEAR HOUSING
-
7628-30281 KEY, LOCATING - BEARIING CARRIERKEY, LOCATING - BEARIING CARRIER
-
7797-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7810-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSINGSCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
-
798M0039169 FILLER BLOCKFILLER BLOCK
-
8012-45176 WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDSWASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS
-
8111-34933 NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDSNUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS
-
8212-835467Q01 THRUST HUBTHRUST HUB
-
8312-31211Q03 WASHER, Splined, PROPELLER NUTWASHER, Splined, PROPELLER NUT
-
8414-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8511-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
8613-423511 LOCKWASHER, Toothed, PROPELLER SHAFTLOCKWASHER, Toothed, PROPELLER SHAFT
-
8710-74727 SCREW, (.375-16 x 6.00), GEAR HOUSINGSCREW, (.375-16 x 6.00), GEAR HOUSING
-
-26-89238A2 SEAL KITSEAL KIT
