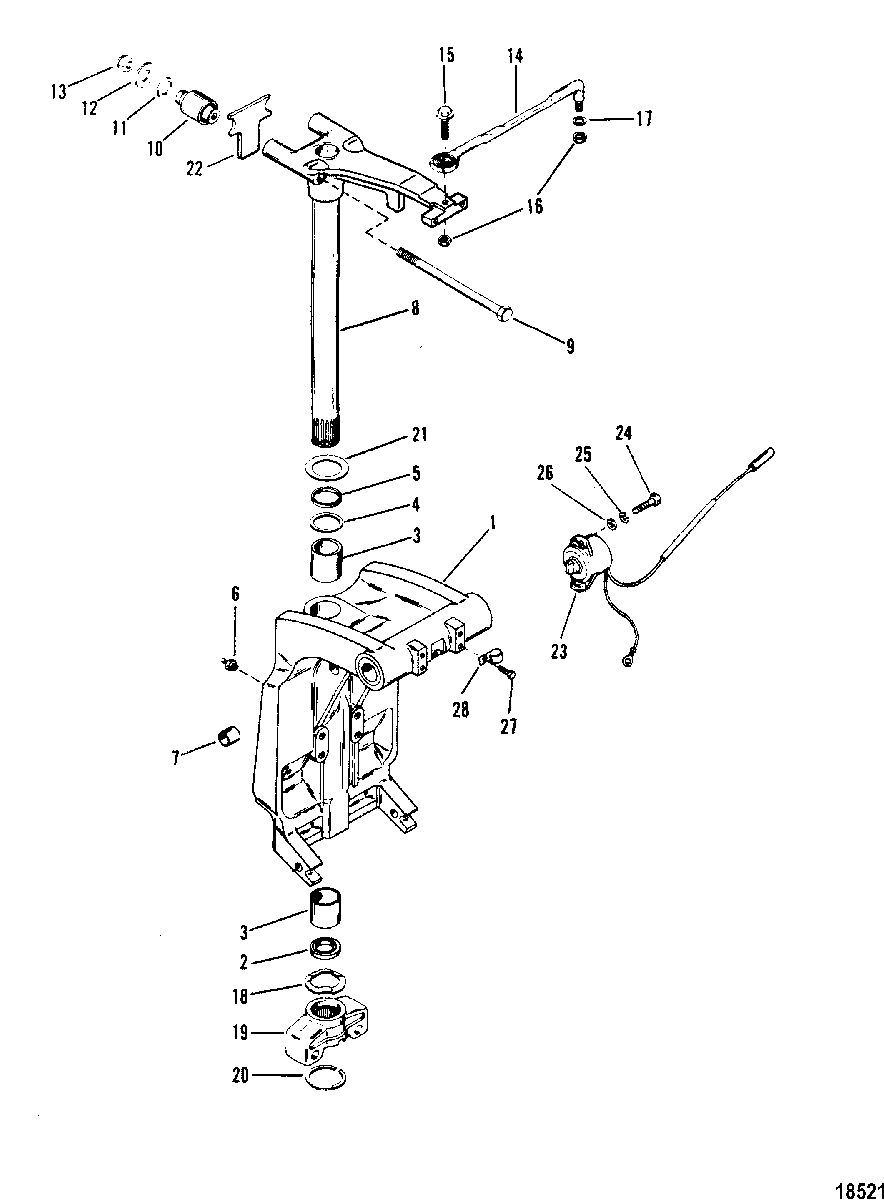

SWIVEL BRACKET AND STEERING ARM для Mariner - V-200 0C100861 THRU 0C291519

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    (BLACK)
    SWIVEL BRACKET ASSEMBLY
    (BLACK)
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    (GRAY)
    SWIVEL BRACKET ASSEMBLY
    (GRAY)
  • 2
    26-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)
    SEAL, Oil, SWIVEL BRACKET (LOWER)
  • 3
    23-818764 BUSHING, SWIVEL BRACKET (LOWER AND UPPER)
    BUSHING, SWIVEL BRACKET (LOWER AND UPPER)
  • 4
    25-33466 O-RING, SWIVEL BRACKET (UPPER)
    O-RING, SWIVEL BRACKET (UPPER)
  • 5
    23-67668 SPACER, SWIVEL BRACKET (UPPER)
    SPACER, SWIVEL BRACKET (UPPER)
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 8
    17-8M0132731 SWIVEL PIN ASSEMBLY
    (BLACK)
    SWIVEL PIN ASSEMBLY
    (BLACK)
  • 8
    17-8M0132731 SWIVEL PIN ASSEMBLY
    (GRAY)
    SWIVEL PIN ASSEMBLY
    (GRAY)
  • 9
    10-8M0000491 SCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNT
    SCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNT
  • 10
    77326 MOUNT, RUBBER - UPPER
    (LONG)
    MOUNT, RUBBER - UPPER
    (LONG)
  • 10
    77326 MOUNT, RUBBER - UPPER
    (X-LONG)
    MOUNT, RUBBER - UPPER
    (X-LONG)
  • 11
    12-66921 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 12
    12-78688 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 13
    11-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
    NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
  • 14
    92876A12 LINK ASSEMBLY, Steering
    LINK ASSEMBLY, Steering
  • 15
    10-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
    SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
  • 16
    11-8M0042636 NUT, (.375-24), STEERING LINK SCREW
    NUT, (.375-24), STEERING LINK SCREW
  • 17
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
    WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
  • 18
    13-78854 WAVE WASHER, BOTTOM YOKE
    WAVE WASHER, BOTTOM YOKE
  • 19
    878182T01 YOKE ASSEMBLY, Bottom
    (BLACK)
    YOKE ASSEMBLY, Bottom
    (BLACK)
  • 19
    878182T01 YOKE ASSEMBLY, Bottom
    (GRAY)
    YOKE ASSEMBLY, Bottom
    (GRAY)
  • 20
    53-67684 RING, Retaining, BOTTOM YOKE
    RING, Retaining, BOTTOM YOKE
  • 21
    12-67670 WASHER, THRUST - SWIVEL BRACKET
    WASHER, THRUST - SWIVEL BRACKET
  • 22
    88882 BUMPER, Top Yoke
    BUMPER, Top Yoke
  • 23
    8M0098273 SENDER ASSEMBLY, Trim (OLD DESIGN)
    SENDER ASSEMBLY, Trim (OLD DESIGN)
  • 24
    10-852368 SCREW, (#10-24 x .750), TRIM SENDER (OLD DESIGN)
    SCREW, (#10-24 x .750), TRIM SENDER (OLD DESIGN)
  • 25
    13-26996 LOCKWASHER, (#10) Stainless Steel, TRIM SENDER SCREW (OLD DESIGN)
    LOCKWASHER, (#10) Stainless Steel, TRIM SENDER SCREW (OLD DESIGN)
  • 26
    12-89302 WASHER, (.203 x .406 x .040), TRIM SENDER SCREW (OLD DESIGN)
    WASHER, (.203 x .406 x .040), TRIM SENDER SCREW (OLD DESIGN)
  • 27
    10-64014 SCREW, (.250-28 x .500), SWIVEL BRACKET
    SCREW, (.250-28 x .500), SWIVEL BRACKET
  • 28
    54-54457 J CLIP
    J CLIP
  • -
    27-89221A88 GASKET SET
    GASKET SET
