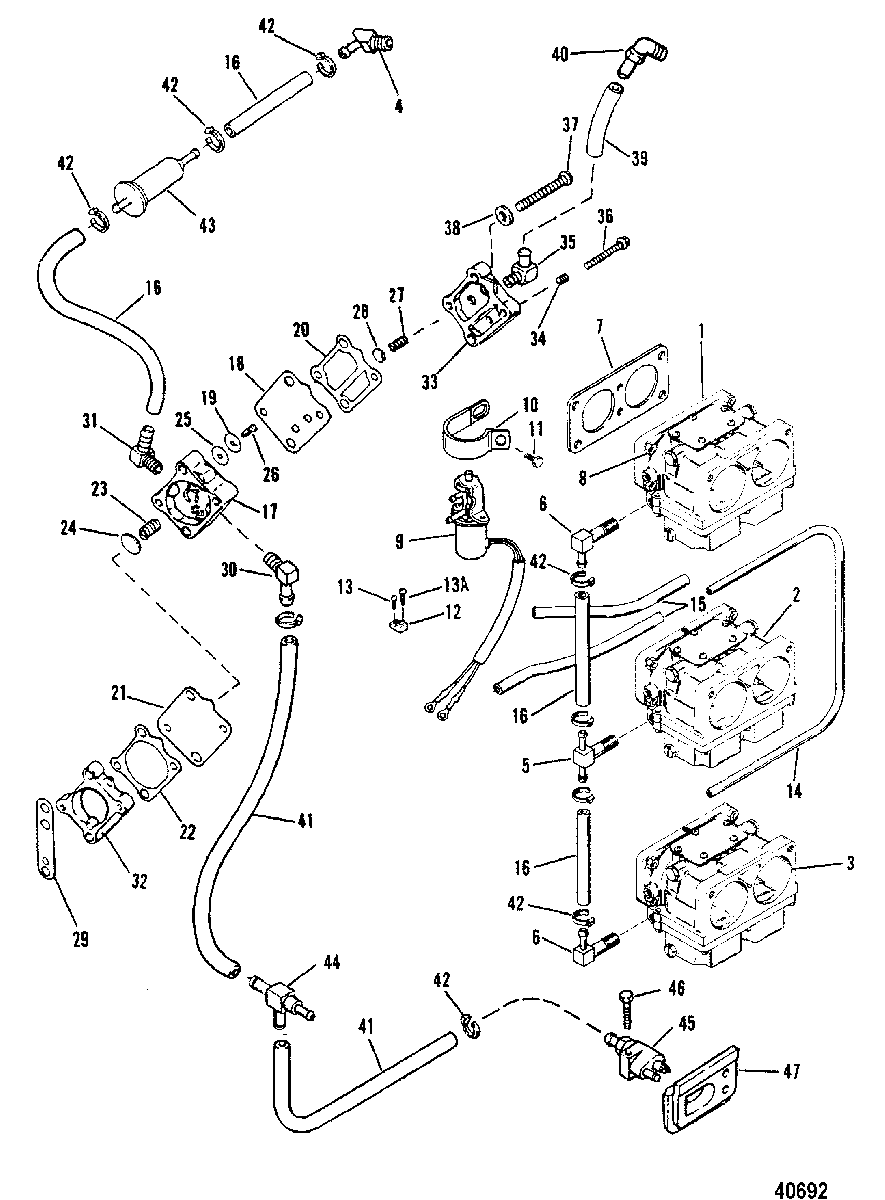

FUEL PUMP AND CARBURETOR для Mariner - V-200 0C100861 THRU 0C291519

  • №
    Артикул
    Название
  • 1
    1374-9242T42 CARBURETOR (TOP)
    CARBURETOR (TOP)
  • 2
    1374-9242T43 CARBURETOR (CENTER)
    CARBURETOR (CENTER)
  • 3
    1374-9242T44 CARBURETOR (BOTTOM)
    CARBURETOR (BOTTOM)
  • 4
    22-70007 FITTING, 45 Degree, FUEL INLET (MIDDLE)
    FITTING, 45 Degree, FUEL INLET (MIDDLE)
  • 5
    1395-7900 TEE FITTING, FUEL INLET (MIDDLE)
    TEE FITTING, FUEL INLET (MIDDLE)
  • 6
    1395-7901 ELBOW, FUEL INLET-UPPER AND LOWER
    ELBOW, FUEL INLET-UPPER AND LOWER
  • 7
    27-677511 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 8
    11-20184 NUT, (1/4-28X7/32), CARBURETOR MOUNTING
    NUT, (1/4-28X7/32), CARBURETOR MOUNTING
  • 9
    42859A2 VALVE ASSEMBLY, Enrichner
    VALVE ASSEMBLY, Enrichner
  • 10
    54-633001 CLAMP, ENRICHENER VALVE
    CLAMP, ENRICHENER VALVE
  • 11
    10-73286 SCREW, (.250-20 x .500) Stainless Steel, VALVE CLAMP
    SCREW, (.250-20 x .500) Stainless Steel, VALVE CLAMP
  • 12
    86-45915 TERMINAL BLOCK, REED BLOCK HOUSING
    TERMINAL BLOCK, REED BLOCK HOUSING
  • 13
    10-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK
    SCREW, (#10-16 x .500), TERMINAL BLOCK
  • 13
    10-38055 SCREW, (.190-32 x .620), TERMINAL BLOCK
    SCREW, (.190-32 x .620), TERMINAL BLOCK
  • 13A
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 14
    32-892024122 TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE
    TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE
  • 15
    32-9912688 TUBING, (36.00 Inches Bulk), CARBURETOR (4-1/4")
    TUBING, (36.00 Inches Bulk), CARBURETOR (4-1/4")
  • 16
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 17
    15930A15 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 18
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 19
    NSS NOT SOLD SEPARATE, CHECK VALVE, RUBBER
    NOT SOLD SEPARATE, CHECK VALVE, RUBBER
  • 20
    NSS NOT SOLD SEPARATE, GASKET, BOOST
    NOT SOLD SEPARATE, GASKET, BOOST
  • 21
    NSS NOT SOLD SEPARATE, DIAPHRAGM
    NOT SOLD SEPARATE, DIAPHRAGM
  • 22
    NSS NOT SOLD SEPARATE, GASKET, PULSE
    NOT SOLD SEPARATE, GASKET, PULSE
  • 23
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 24
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 25
    NSS NOT SOLD SEPARATE, CHECK VALVE
    NOT SOLD SEPARATE, CHECK VALVE
  • 26
    NSS NOT SOLD SEPARATE, RETAINER
    NOT SOLD SEPARATE, RETAINER
  • 27
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 28
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 29
    27-987691 GASKET, BASE
    GASKET, BASE
  • 30
    22-14868 FITTING, FUEL PUMP (ELBOW)
    FITTING, FUEL PUMP (ELBOW)
  • 31
    22-19688 FITTING, FUEL PUMP (ELBOW)
    FITTING, FUEL PUMP (ELBOW)
  • 32
    144303 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 33
    987752 PLATE, FUEL PUMP
    PLATE, FUEL PUMP
  • 34
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 35
    22-15979 FITTING
    FITTING
  • 36
    10-16452 SCREW, (#12-24 x 2.00), FULE PUMP
    SCREW, (#12-24 x 2.00), FULE PUMP
  • 37
    10-4000310 SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE
    SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE
  • 38
    12-4002314 WASHER, FUEL PUMP SCREW
    WASHER, FUEL PUMP SCREW
  • 39
    32-9072925 HOSE, PULSE
    HOSE, PULSE
  • 40
    22-997511 FITTING, (.0625-27) Brass, PULSE HOSE (90 DEG.)
    FITTING, (.0625-27) Brass, PULSE HOSE (90 DEG.)
  • 41
    32-8M0108349 TUBING, TO CENTER CARBURETOR
    TUBING, TO CENTER CARBURETOR
  • 42
    54-816311T TIE STRAP, FUEL TUBING
    TIE STRAP, FUEL TUBING
  • 43
    35-816296Q03 FILTER, Fuel
    FILTER, Fuel
  • 44
    22-424253 TEE
    TEE
  • 45
    22-816856Q3 CONNECTOR, Fuel
    CONNECTOR, Fuel
  • 46
    10-69067 SCREW, (.250-20 x 1.375), FUEL CONNECTOR
    SCREW, (.250-20 x 1.375), FUEL CONNECTOR
  • 47
    812782 SEAL
    SEAL
