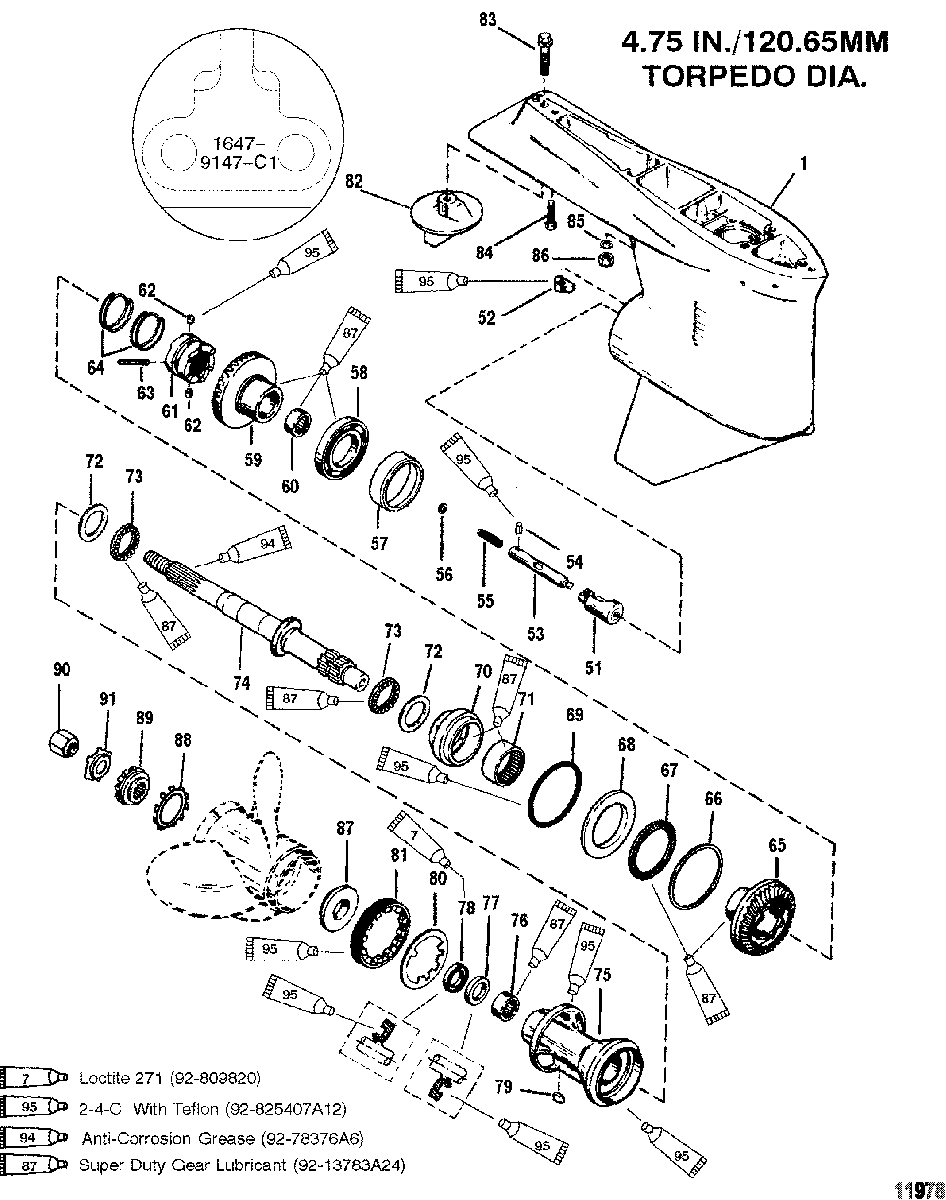

Gear Housing(Propshaft-Counter-S/N-0G437999 & Below) для Mariner - V-175 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (Basic, Black)
    GEAR HOUSING ASSEMBLY
    (Basic, Black)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (Basic, Gray)
    GEAR HOUSING ASSEMBLY
    (Basic, Gray)
  • 67
    31-15841 BEARING, Roller
    BEARING, Roller
  • 68
    12-17616 THRUST RING
    THRUST RING
  • 69
    25-31534 O-RING
    O-RING
  • 70
    18447T2 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 71
    31-15843T BEARING, Roller
    BEARING, Roller
  • 72
    12-18448 THRUST WASHER
    THRUST WASHER
  • 73
    31-15842 BEARING, Thrust
    BEARING, Thrust
  • 74
    44-18446 PROPELLER SHAFT
    PROPELLER SHAFT
  • 75
    818896T2 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 76
    31-30956T BEARING, Needle
    BEARING, Needle
  • 77
    26-76868 SEAL, Inside
    SEAL, Inside
  • 78
    26-76868 SEAL, Outside
    SEAL, Outside
  • 79
    28-30281 KEY
    KEY
  • 80
    14-183231 TAB WASHER
    TAB WASHER
  • 81
    8M2000347 RETAINER
    RETAINER
  • 82
    31640T07 TRIM TAB
    TRIM TAB
  • 83
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 84
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 85
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 86
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 87
    12-835467Q01 THRUST HUB
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
    THRUST HUB
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
  • 88
    13-423511 LOCKWASHER, Toothed
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
    LOCKWASHER, Toothed
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
  • 89
    12-31211Q03 WASHER, Splined
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
    WASHER, Splined
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
  • 90
    11-52707Q1 PROP NUT KIT, (.750-16)
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
    PROP NUT KIT, (.750-16)
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
  • 91
    14-816629Q TAB WASHER
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
    TAB WASHER
    (These Replacement Parts AreNot Included With Complete Gear Housing Replacement)
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
