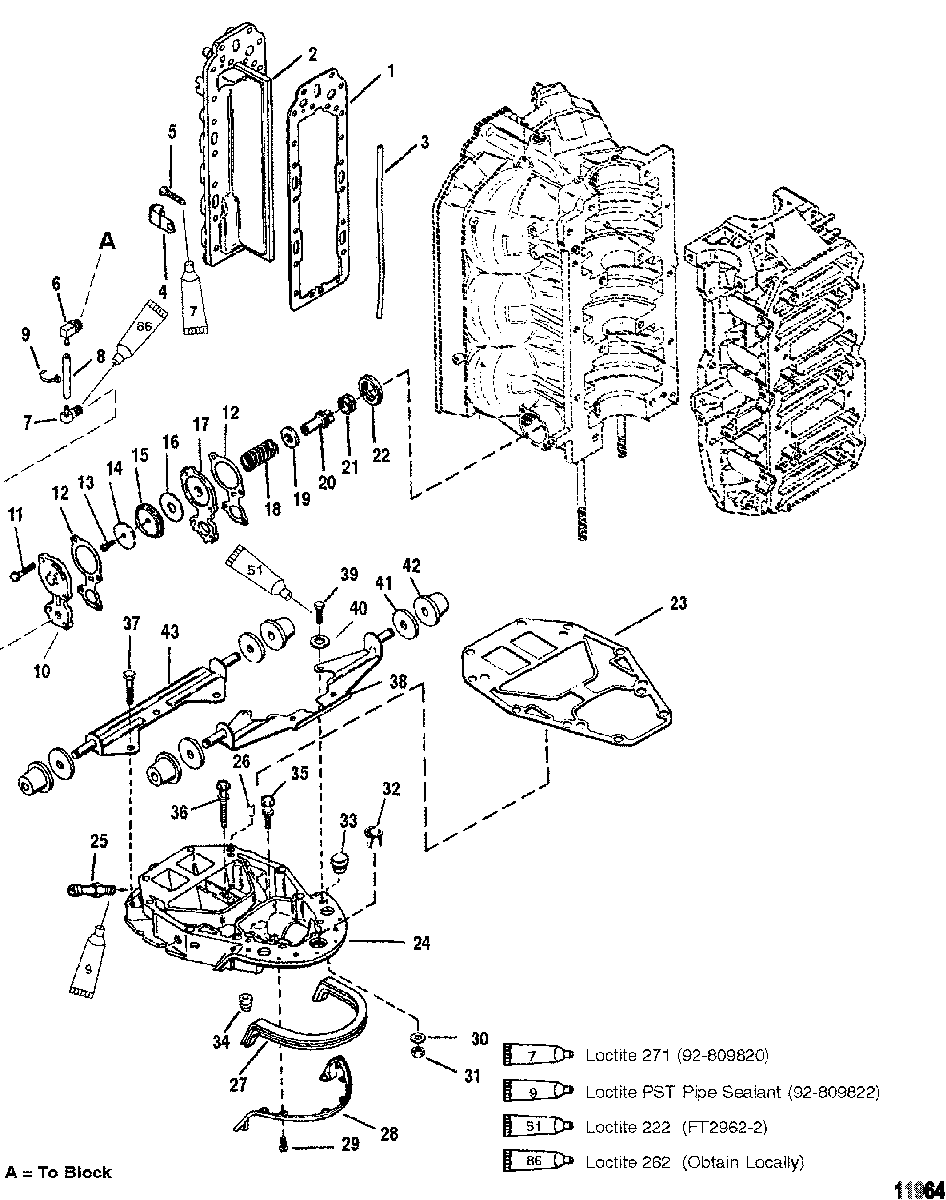

Exhaust Manifold And Exhaust Plate для Mariner - V-175 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    27-190503 GASKET
    GASKET
  • 2
    827323A2 DIVIDER PLATE
    DIVIDER PLATE
  • 3
    26-814754 SEAL, (12.50 Inches)
    SEAL, (12.50 Inches)
  • 4
    54-814634 CLAMP
    CLAMP
  • 5
    10-8263561 SCREW AND WASHER, (.312-18 x 1.500)
    SCREW AND WASHER, (.312-18 x 1.500)
  • 6
    22-8144301 FITTING, (.500-14)
    FITTING, (.500-14)
  • 7
    22-920071 FITTING, (.250-18) (90 Degrees)
    FITTING, (.250-18) (90 Degrees)
  • 8
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 23.50 Inch Length)
    HOSE, (57.00 Inches Bulk) (Cut to 23.50 Inch Length)
  • 9
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 10
    8M0039767 COVER
    COVER
  • 11
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 12
    27-78690002 GASKET
    GASKET
  • 13
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 14
    12-76451 WASHER
    WASHER
  • 15
    144791 DIAPHRAGM
    DIAPHRAGM
  • 16
    16496 DEFLECTOR, Water
    DEFLECTOR, Water
  • 17
    16497A1 PLATE
    PLATE
  • 18
    24-64878 SPRING
    SPRING
  • 19
    12-85303 WASHER
    WASHER
  • 20
    14480 POPPET
    POPPET
  • 21
    25-64872 GROMMET
    GROMMET
  • 22
    65848 CARRIER
    CARRIER
  • 23
    27-991764 GASKET
    GASKET
  • 24
    18260T2 PLATE ASSEMBLY, Exhaust
    PLATE ASSEMBLY, Exhaust
  • 25
    22-89772Q1 CONNECTOR, (.125-27), Straight
    CONNECTOR, (.125-27), Straight
  • 26
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 27
    8M0043164 SEAL
    SEAL
  • 28
    680101 BRACKET
    BRACKET
  • 29
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 30
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 31
    11-69254 NUT
    NUT
  • 32
    23-27132 BUSHING
    BUSHING
  • 33
    25-19564001 GROMMET
    GROMMET
  • 34
    25-19565002 GROMMET
    GROMMET
  • 35
    10-66727 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 36
    10-68783 SCREW, (.312-18 x 2.50)
    SCREW, (.312-18 x 2.50)
  • 37
    10-898833 SCREW, (.375-16 x 3.50)
    SCREW, (.375-16 x 3.50)
  • 38
    812905T BRACKET ASSEMBLY, Front
    BRACKET ASSEMBLY, Front
  • 39
    10-8055571 SCREW, (.3125-18 x .50)
    SCREW, (.3125-18 x .50)
  • 39
    10-90285 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 40
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel, Use With .625 Inch Reference #39
    WASHER, (.330 x .750 x .060) Stainless Steel, Use With .625 Inch Reference #39
  • 41
    12-187031 WASHER
    WASHER
  • 42
    25-18778001 GROMMET
    GROMMET
  • 43
    18578T09 BRACKET ASSEMBLY, Rear
    BRACKET ASSEMBLY, Rear
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135/150)
    POWERHEAD ASSEMBLY
    (135/150)
  • -
    823434R97 POWERHEAD ASSEMBLY
    (XR6/Magnum III)
    POWERHEAD ASSEMBLY
    (XR6/Magnum III)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
  • -
    813043R97 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
