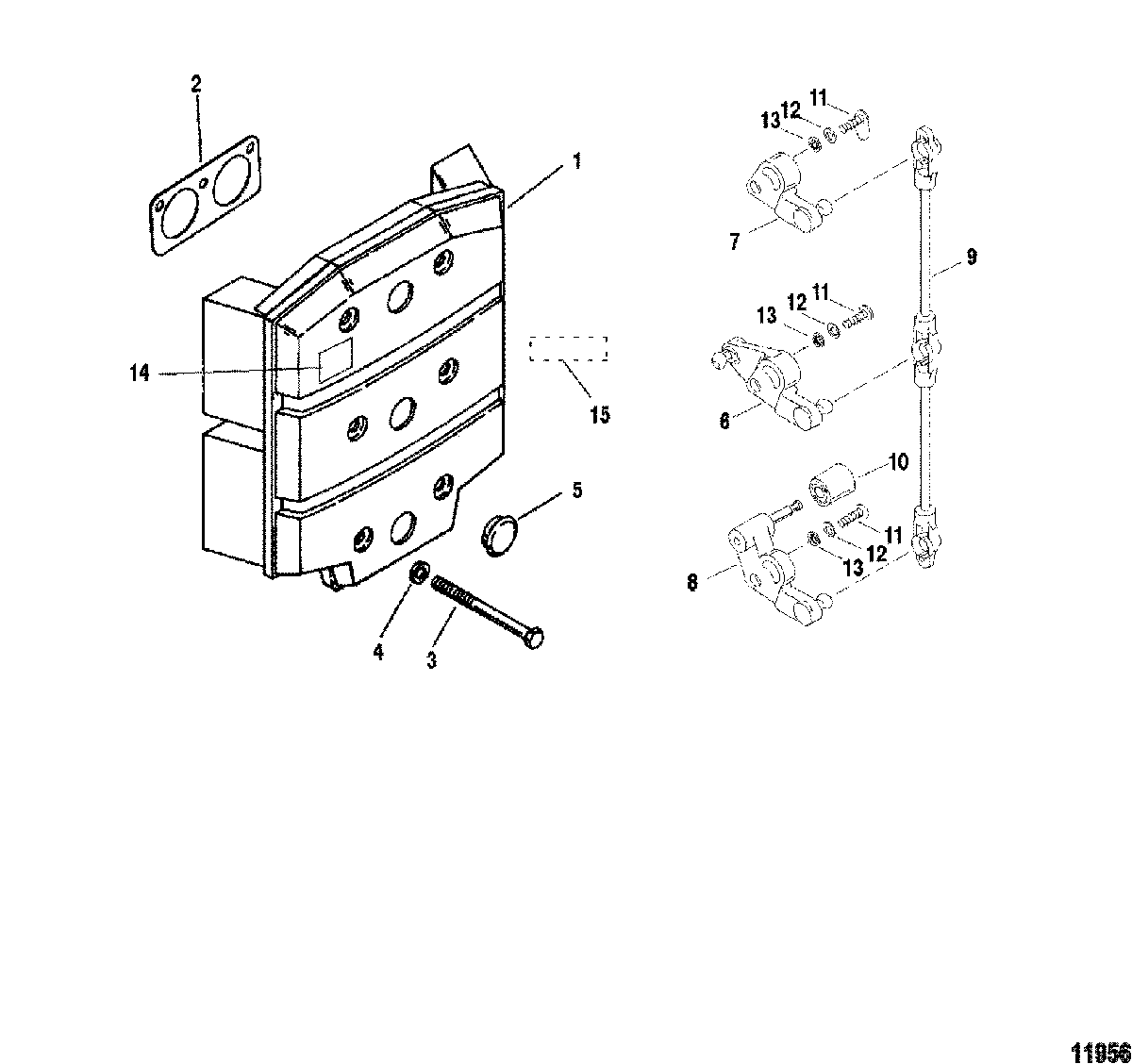

Attenuator Plate And Throttle Levers для Mariner - V-175 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    817495A1 PLATE ASSEMBLY, Sound Attenuator
    PLATE ASSEMBLY, Sound Attenuator
  • 2
    27-892211 GASKET
    GASKET
  • 3
    10-884891 SCREW, (.250-28 x 2.500)
    SCREW, (.250-28 x 2.500)
  • 4
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 5
    19-815784 CAP
    CAP
  • 6
    828277A1 LINKAGE KIT
    LINKAGE KIT
  • 7
    NSS NOT SOLD SEPARATE, Throttle Level
    NOT SOLD SEPARATE, Throttle Level
  • 8
    NSS NOT SOLD SEPARATE, Throttle Level
    NOT SOLD SEPARATE, Throttle Level
  • 9
    NSS NOT SOLD SEPARATE, Throtlle Link
    NOT SOLD SEPARATE, Throtlle Link
  • 10
    18178 ROLLER
    ROLLER
  • 11
    10-15124 SCREW, (#10-32 x .750)
    SCREW, (#10-32 x .750)
  • 12
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 13
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 14
    NSS NOT SOLD SEPARATE, Decal-Caution Airbox
    NOT SOLD SEPARATE, Decal-Caution Airbox
  • 15
    37-855577A12 DECAL, EPA Label Information
    (1998)(135/150) (135/150) (See Note)
    DECAL, EPA Label Information
    (1998)(135/150) (135/150) (See Note)
  • 15
    37-855577A13 DECAL, EPA Label Information
    (1998)(XR6/Mag III/175/200) (XR6/Mag, III/175/200) (See Note
    DECAL, EPA Label Information
    (1998)(XR6/Mag III/175/200) (XR6/Mag, III/175/200) (See Note
  • 15
    37-855920 DECAL, EPA Label Information
    (1998)(Export) (See Note)
    DECAL, EPA Label Information
    (1998)(Export) (See Note)
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
