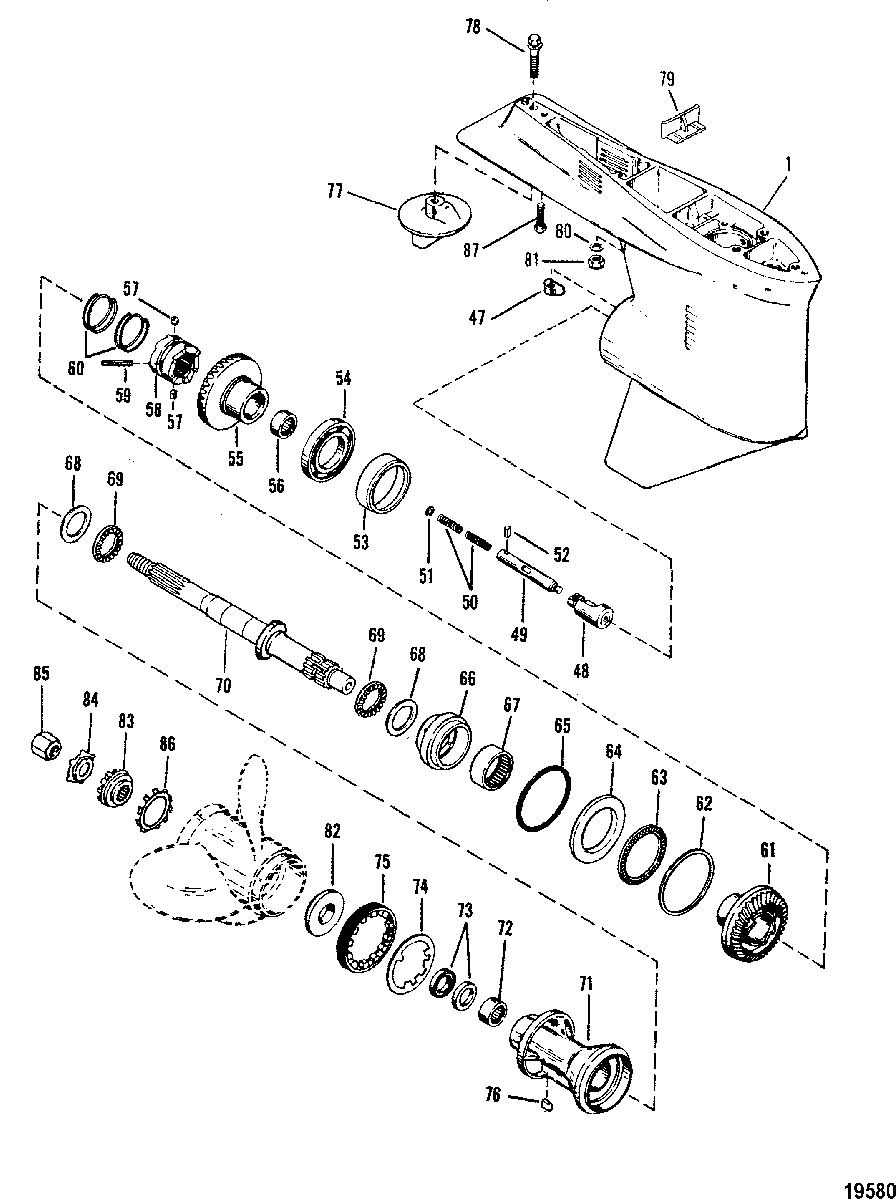

Gear Housing(Prop-Counter Rotation 135/150/175/200) для Mariner - V-175 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • -
    1647-9148T83 GEAR HOUSING (X-LONG)
    (Black 135/150)
    GEAR HOUSING (X-LONG)
    (Black 135/150)
  • -
    1647-9148T89 GEAR HOUSING (X-LONG)
    (Gray 135/150)
    GEAR HOUSING (X-LONG)
    (Gray 135/150)
  • -
    1647-9148T86 GEAR HOUSING (X-LONG)(BLACK)
    (Black 175/200)
    GEAR HOUSING (X-LONG)(BLACK)
    (Black 175/200)
  • -
    1647-9148T86 GEAR HOUSING (X-LONG)
    (Gray 175/200)
    GEAR HOUSING (X-LONG)
    (Gray 175/200)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY (BLACK)(BASIC)
    GEAR HOUSING ASSEMBLY (BLACK)(BASIC)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY (GRAY)(BASIC)
    GEAR HOUSING ASSEMBLY (GRAY)(BASIC)
  • 47
    789562 SHIFT CAM
    SHIFT CAM
  • 48
    89594A1 FOLLOWER, CAM
    FOLLOWER, CAM
  • 49
    79911A1 ROD, CLUTCH ACTUATOR
    ROD, CLUTCH ACTUATOR
  • 50
    24-79910 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 51
    12-78910 WASHER, SPRING
    WASHER, SPRING
  • 52
    17-8M0084245 PIN, SPRING LOCATOR
    PIN, SPRING LOCATOR
  • 53
    14469T BEARING CUP
    BEARING CUP
  • 54
    30-88957T BEARING
    BEARING
  • 55
    NSS NOT SOLD SEPARATE, Reverse Gear (PART OF 43-18572A1 or 43-18475A1)
    NOT SOLD SEPARATE, Reverse Gear (PART OF 43-18572A1 or 43-18475A1)
  • 56
    31-15844 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 57
    17-78909 PIN, Detent, RATCHET
    PIN, Detent, RATCHET
  • 58
    52-8M0100493 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 59
    17-8M0084243 PIN, Cross, RATCHET
    PIN, Cross, RATCHET
  • 60
    24-78962 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 61
    43-18572T1 FORWARD GEAR
    (135/150)
    FORWARD GEAR
    (135/150)
  • 61
    43-18475T1 FORWARD GEAR
    (175/200)
    FORWARD GEAR
    (175/200)
  • 62
    23-176151 SPACER SHIM
    (.125)
    SPACER SHIM
    (.125)
  • 62
    23-176152 SPACER SHIM
    (.127)
    SPACER SHIM
    (.127)
  • 62
    23-176153 SPACER SHIM
    (.129)
    SPACER SHIM
    (.129)
  • 62
    23-176154 SPACER SHIM
    (.131)
    SPACER SHIM
    (.131)
  • 62
    23-176155 SPACER SHIM
    (.133)
    SPACER SHIM
    (.133)
  • 62
    23-176156 SPACER SHIM
    (.135)
    SPACER SHIM
    (.135)
  • 62
    23-176157 SPACER SHIM
    (.137)
    SPACER SHIM
    (.137)
  • 62
    23-176158 SPACER SHIM
    (.139)
    SPACER SHIM
    (.139)
  • 62
    23-176159 SPACER SHIM
    (.141)
    SPACER SHIM
    (.141)
  • 62
    23-1761510 SPACER SHIM
    (.143)
    SPACER SHIM
    (.143)
  • 62
    23-1761511 SPACER SHIM
    (.145)
    SPACER SHIM
    (.145)
  • 62
    23-1761512 SPACER SHIM
    (.147)
    SPACER SHIM
    (.147)
  • 62
    23-1761513 SPACER SHIM
    (.149)
    SPACER SHIM
    (.149)
  • 63
    31-15841 ROLLER BEARING
    ROLLER BEARING
  • 64
    12-17616 THRUST RING
    THRUST RING
  • 65
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 66
    18447T2 BEARING ADAPTOR
    BEARING ADAPTOR
  • 67
    31-15843T ROLLER BEARING
    ROLLER BEARING
  • 68
    12-18448 THRUST WASHER
    THRUST WASHER
  • 69
    31-15842 BEARING, Thrust
    BEARING, Thrust
  • 70
    44-18446 PROPELLER SHAFT
    PROPELLER SHAFT
  • 71
    818896T2 BEARING CARRIER
    BEARING CARRIER
  • 72
    31-30956T ROLLER BEARING, BEARING CARRIER
    ROLLER BEARING, BEARING CARRIER
  • 73
    26-76868 SEAL
    SEAL
  • 74
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 75
    8M2000347 RETAINER, GEAR HOUSING
    RETAINER, GEAR HOUSING
  • 76
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 77
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 78
    10-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
    SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
  • 79
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 80
    12-45176 WASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDS
    WASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDS
  • 81
    11-34933 NUT, (.437-20), DRIVE SHAFT HOUSING STUDS
    NUT, (.437-20), DRIVE SHAFT HOUSING STUDS
  • 82
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 83
    12-31211Q03 WASHER, Splined, PROPELLER NUT
    WASHER, Splined, PROPELLER NUT
  • 84
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 85
    11-52707Q1 NUT, Propeller
    NUT, Propeller
  • 86
    13-423511 LOCKWASHER, Toothed, PROPELLER SHAFT
    LOCKWASHER, Toothed, PROPELLER SHAFT
  • 87
    10-65210 SCREW, (.375-16 x 1.00), GEAR HOUSING
    SCREW, (.375-16 x 1.00), GEAR HOUSING
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
