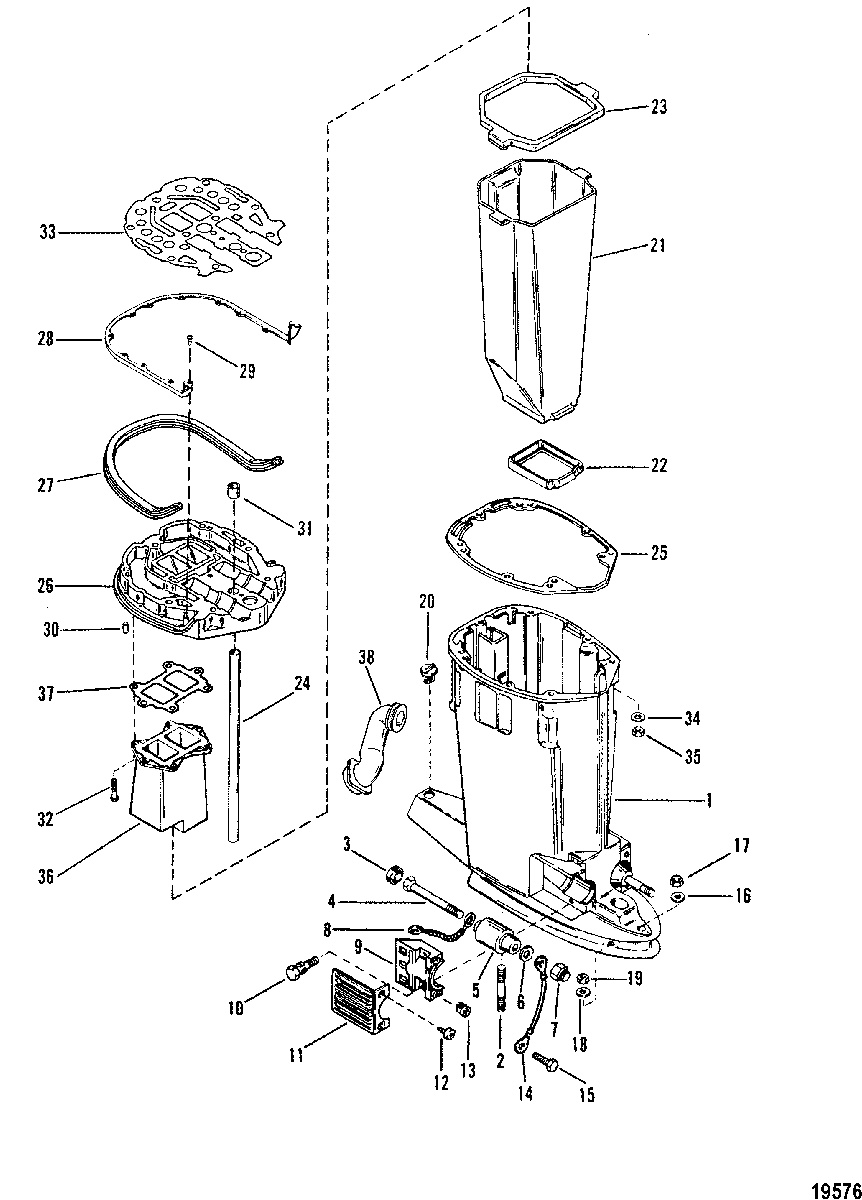

Driveshaft Housing для Mariner - V-175 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    1590-8343T10 DRIVESHAFT HOUSING (BLACK)(LONG)
    DRIVESHAFT HOUSING (BLACK)(LONG)
  • 1
    1590-8343T10 DRIVESHAFT HOUSING (GRAY)(LONG)
    DRIVESHAFT HOUSING (GRAY)(LONG)
  • 1
    3503-813563T1 DRIVESHAFT HOUSING (BLACK) (X-LONG)
    DRIVESHAFT HOUSING (BLACK) (X-LONG)
  • 1
    3503-813563T1 DRIVESHAFT HOUSING (GRAY)(X-LONG)
    DRIVESHAFT HOUSING (GRAY)(X-LONG)
  • 2
    16-56295 STUD, (.437 x 2.69), DRIVE SHAFT HSG./GEAR HSG.
    STUD, (.437 x 2.69), DRIVE SHAFT HSG./GEAR HSG.
  • 3
    25067 BUMPER, LOWER MOUNT SCREW
    BUMPER, LOWER MOUNT SCREW
  • 4
    10-898831 SCREW, (.500-20 x 6.00), LOWER MOUNT
    SCREW, (.500-20 x 6.00), LOWER MOUNT
  • 5
    77327 MOUNT, LOWER (LONG)
    MOUNT, LOWER (LONG)
  • 5
    77327 MOUNT (X-LONG) (USE ON XR4/MAGNUM II)
    MOUNT (X-LONG) (USE ON XR4/MAGNUM II)
  • 6
    12-49339 WASHER, (.8125), LOWER MOUNT SCREW
    WASHER, (.8125), LOWER MOUNT SCREW
  • 7
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 8
    88238A10 GROUND WIRE ASSEMBLY
    GROUND WIRE ASSEMBLY
  • 9
    54-8M0036782 CLAMP, LOWER MOUNT
    CLAMP, LOWER MOUNT
  • 10
    10-66727 SCREW, (.312-18 x 1.250), LOWER MOUNT CLAMP ATTACHING
    SCREW, (.312-18 x 1.250), LOWER MOUNT CLAMP ATTACHING
  • 11
    100-8M4500752 COVER, LOWER MOUNT CLAMP (BLACK)
    COVER, LOWER MOUNT CLAMP (BLACK)
  • 11
    100-8M4500752 COVER, LOWER MOUNT CLAMP (GRAY)
    COVER, LOWER MOUNT CLAMP (GRAY)
  • 12
    10-88417 SCREW, (#12-24 x .620), COVER ATTACHING
    SCREW, (#12-24 x .620), COVER ATTACHING
  • 13
    11-35521 NUT, NYLON - COVER TO CLAMP SCREW
    NUT, NYLON - COVER TO CLAMP SCREW
  • 14
    88238A10 GROUND WIRE ASSEMBLY
    GROUND WIRE ASSEMBLY
  • 15
    10-41508 SCREW, (.250-20 x .500), GROUND WIRE
    SCREW, (.250-20 x .500), GROUND WIRE
  • 16
    12-48926 WASHER, GEAR HOUSING STUD
    WASHER, GEAR HOUSING STUD
  • 17
    11-29489 NUT, GEAR HOUSING STUD (CAP)
    NUT, GEAR HOUSING STUD (CAP)
  • 18
    12-45176 WASHER, (.453 x .812 x .105), GEAR HOUSING STUD
    WASHER, (.453 x .812 x .105), GEAR HOUSING STUD
  • 19
    11-34933 NUT, (.437-20), GEAR HOUSING STUD
    NUT, (.437-20), GEAR HOUSING STUD
  • 20
    19-64649 PLUG, DRIVE SHAFT HOUSING
    PLUG, DRIVE SHAFT HOUSING
  • 21
    18276T EXHAUST TUBE
    EXHAUST TUBE
  • 22
    66350001 SEAL, EXHAUST TUBE - LOWER
    SEAL, EXHAUST TUBE - LOWER
  • 23
    8M0039076 SEAL, EXHAUST TUBE - UPPER
    SEAL, EXHAUST TUBE - UPPER
  • 24
    32-8M0042788 TUBE, WATER (LONG)
    TUBE, WATER (LONG)
  • 24
    32-8M0042790 TUBE, WATER (X-LONG)
    TUBE, WATER (X-LONG)
  • 25
    27-991734 GASKET, DRIVE SHAFT HOUSING TO PLATE
    GASKET, DRIVE SHAFT HOUSING TO PLATE
  • 26
    18233A20 PLATE ASSEMBLY, DRIVE SHAFT HOUSING
    PLATE ASSEMBLY, DRIVE SHAFT HOUSING
  • 27
    8M0043165 SEAL, BRACKET
    SEAL, BRACKET
  • 28
    68011 BRACKET, SEAL RETAINING
    BRACKET, SEAL RETAINING
  • 29
    10-878608 SCREW, (#10-16 x .500), BRACKET TO PLATE
    SCREW, (#10-16 x .500), BRACKET TO PLATE
  • 30
    17-43044 PIN, Dowel, LOCATING
    PIN, Dowel, LOCATING
  • 31
    26-38970 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 32
    10-90192 SCREW, (.250-20 x .750), EXTENSION TO PLATE
    SCREW, (.250-20 x .750), EXTENSION TO PLATE
  • 33
    27-183076 GASKET
    GASKET
  • 34
    12-20553 WASHER, POWER HEAD STUD
    WASHER, POWER HEAD STUD
  • 35
    11-69254 NUT, POWER HEAD STUD
    NUT, POWER HEAD STUD
  • 36
    17303T1 DIFFUSER (XR4/MAGNUM II)
    DIFFUSER (XR4/MAGNUM II)
  • 36
    879288T71 EXH. EXTENSION (135/150/175/200)
    EXH. EXTENSION (135/150/175/200)
  • 37
    27-782461 GASKET, EXHAUST EXTENSION
    GASKET, EXHAUST EXTENSION
  • 38
    814618 BOOT, IDLE EXHAUST
    BOOT, IDLE EXHAUST
  • -
    27-815791A92 GASKET SET
    (135/150)
    GASKET SET
    (135/150)
  • -
    27-815791A92 GASKET SET
    (XR4/Magnum II/175)
    GASKET SET
    (XR4/Magnum II/175)
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
