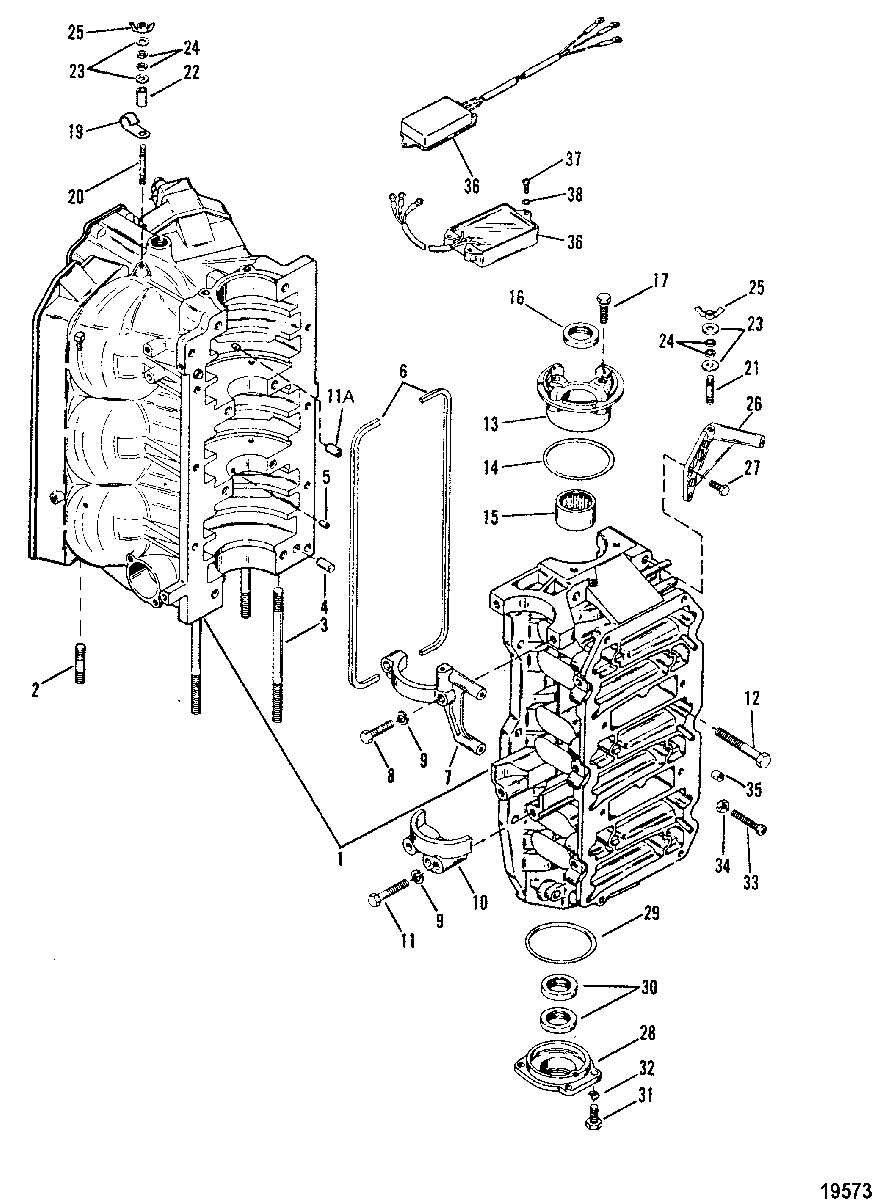

Cylinder Block and End Caps для Mariner - V-175 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    884-859211T2 CYLINDER BLOCK (135/150)
    CYLINDER BLOCK (135/150)
  • 1
    884-9764T13 CYLINDER BLOCK (XR4/MAGNUM II)
    CYLINDER BLOCK (XR4/MAGNUM II)
  • 1
    884-9764T12 CYLINDER BLOCK (175)
    CYLINDER BLOCK (175)
  • 1
    884-9763T6 CYLINDER BLOCK (200)
    CYLINDER BLOCK (200)
  • 2
    16-76175 STUD, POWERHEAD (1-7/8")
    STUD, POWERHEAD (1-7/8")
  • 2
    16-8M0034455 STUD, POWERHEAD (1-3/4")
    STUD, POWERHEAD (1-3/4")
  • 3
    16-670654 STUD, POWERHEAD (5-1/2")
    STUD, POWERHEAD (5-1/2")
  • 3
    16-8M0034454 STUD, POWERHEAD (6-3/4")
    STUD, POWERHEAD (6-3/4")
  • 4
    17-43044 PIN, Dowel, LOCATING
    PIN, Dowel, LOCATING
  • 5
    17-8M0036405 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 6
    27-11338 GASKET, SEALING
    GASKET, SEALING
  • 7
    8M0088723 COVER, STARTER MOTOR (UPPER)
    COVER, STARTER MOTOR (UPPER)
  • 8
    10-73657 SCREW, (.312-18 x 1.50)
    SCREW, (.312-18 x 1.50)
  • 9
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 10
    76867 COVER (LOWER)
    COVER (LOWER)
  • 11
    10-815549 SCREW, (.312-18 x 2)
    SCREW, (.312-18 x 2)
  • 11A
    23-99448 BUSHING
    BUSHING
  • 12
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 12
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 13
    1159-858521T1 UPPER END CAP ASSEMBLY, UPPER
    UPPER END CAP ASSEMBLY, UPPER
  • 14
    25-54029 O-RING
    O-RING
  • 15
    31-16756A4 ROLLER BEARING
    ROLLER BEARING
  • 16
    26-41953 SEAL
    SEAL
  • 17
    10-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00)
    SCREW WITH LOCKWASHER, (.312-18 x 1.00)
  • 19
    54-63153 J CLIP
    J CLIP
  • 20
    16-15094 STUD, (.190-32 x 1.870)
    STUD, (.190-32 x 1.870)
  • 21
    16-8M0034435 STUD, (#10-32 x 1.00)
    STUD, (#10-32 x 1.00)
  • 22
    23-67269 SPACER, FLYWHEEL COVER STUD
    SPACER, FLYWHEEL COVER STUD
  • 23
    12-49221 WASHER, FLYWHEEL COVER STUD
    WASHER, FLYWHEEL COVER STUD
  • 24
    12-72761 WASHER, FLYWHEEL COVER STUD
    WASHER, FLYWHEEL COVER STUD
  • 25
    11-816874 WING NUT, (#10-32), FLYWHEEL COVER STUD
    WING NUT, (#10-32), FLYWHEEL COVER STUD
  • 26
    422482 BRACKET, FLYWHEEL COVER
    BRACKET, FLYWHEEL COVER
  • 27
    10-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASE
    SCREW, (.250-20 x .750), BRACKET TO CRANKCASE
  • 28
    1156-7809T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 29
    25-62700 O-RING, (3.250 Inside Diameter), END CAP
    O-RING, (3.250 Inside Diameter), END CAP
  • 30
    26-41953 SEAL, END CAP
    SEAL, END CAP
  • 31
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 32
    13-26992 LOCKWASHER, (.250), LOWER END CAP SCREW
    LOCKWASHER, (.250), LOWER END CAP SCREW
  • 33
    10-64022 SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK
    SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK
  • 34
    11-64015 NUT, ( #8-32), JAM - ADJUSTING SCREW
    NUT, ( #8-32), JAM - ADJUSTING SCREW
  • 35
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 36
    87076A10 IDLE SPEED CONTROL ASSEMBLY
    SN# 0C254932 & Up
    IDLE SPEED CONTROL ASSEMBLY
    SN# 0C254932 & Up
  • 36
    93772A11 ADVANCED MODULE
    SN# 0C247591 THRU 0C254931
    ADVANCED MODULE
    SN# 0C247591 THRU 0C254931
  • 37
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 38
    12-38833 WASHER
    WASHER
  • -
    812815R97 POWERHEAD (135/150)
    POWERHEAD (135/150)
  • -
    815908T90 POWERHEAD (XR4/MAGNUM II)
    POWERHEAD (XR4/MAGNUM II)
  • -
    812817T90 POWERHEAD (175)
    POWERHEAD (175)
  • -
    812827T91 POWERHEAD (200)
    POWERHEAD (200)
  • -
    27-815791A92 GASKET SET
    (135/150)
    GASKET SET
    (135/150)
  • -
    27-815791A92 GASKET SET
    (XR4/Magnum II/175)
    GASKET SET
    (XR4/Magnum II/175)
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
