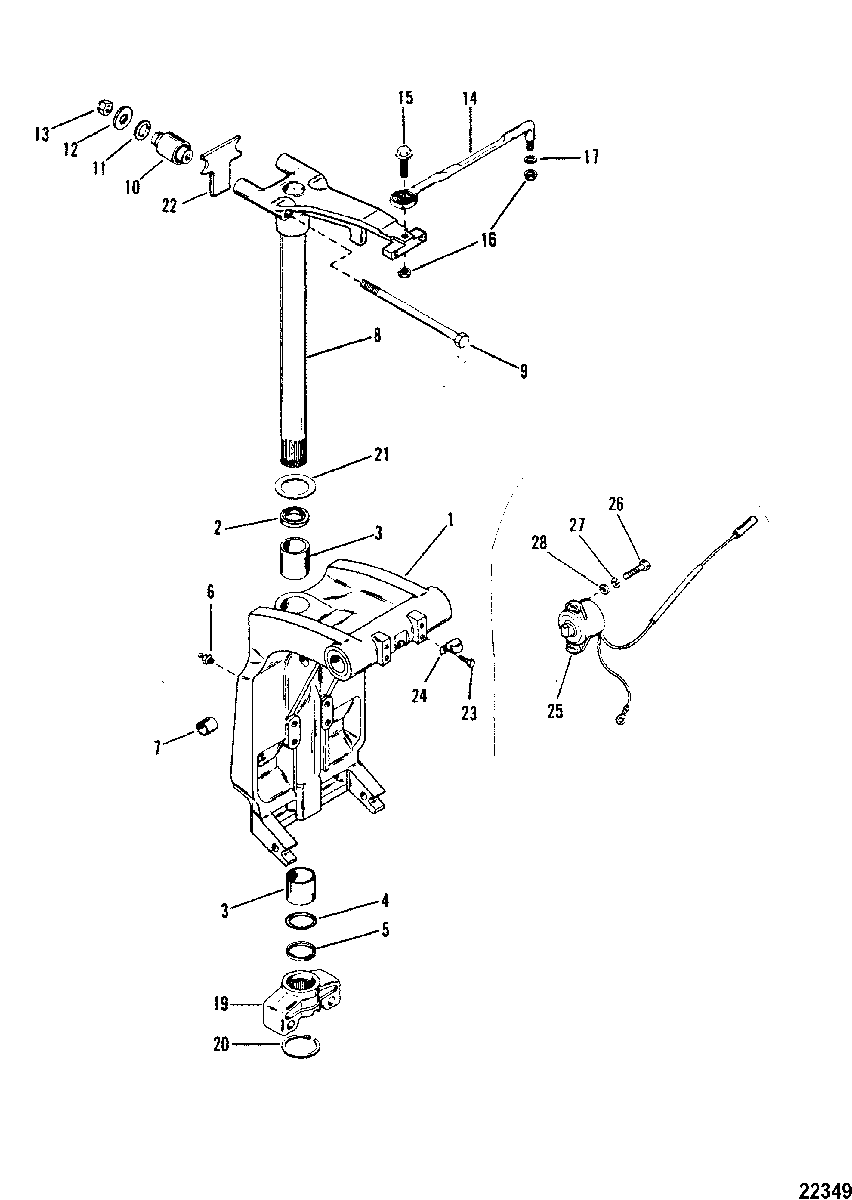

SWIVEL BRACKET AND STEERING ARM для Mariner - V-175 (MAG/EFI) 0D000750 THRU 0D081999
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BERACKET ASSEMBLY (BLACK)SWIVEL BERACKET ASSEMBLY (BLACK)
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (GRAY)SWIVEL BRACKET ASSEMBLY (GRAY)
-
226-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)SEAL, Oil, SWIVEL BRACKET (LOWER)
-
323-818764 BUSHING, SWIVEL BRACKET (LOWER AND UPPER)BUSHING, SWIVEL BRACKET (LOWER AND UPPER)
-
425-33504 O-RING, SWIVEL BRACKET (UPPER)O-RING, SWIVEL BRACKET (UPPER)
-
523-816039 SPACER, SWIVEL BRACKET (UPPER)SPACER, SWIVEL BRACKET (UPPER)
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
817-8M0132731 SWIVEL PIN AND STEERING ARM (BLACK)SWIVEL PIN AND STEERING ARM (BLACK)
-
817-8M0132731 SWIVEL PIN AND STEERING ARM (GRAY)SWIVEL PIN AND STEERING ARM (GRAY)
-
910-8M0000491 SCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNTSCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNT
-
1077326 MOUNT, RUBBER (UPPER)MOUNT, RUBBER (UPPER)
-
1112-66921 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1212-78688 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1311-34933 NUT, (.437-20), UPPER MOUNT BOLTNUT, (.437-20), UPPER MOUNT BOLT
-
1492876A12 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
1510-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARMSCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
-
1611-8M0042636 NUT, (.375-24), STEERING LINK SCREWNUT, (.375-24), STEERING LINK SCREW
-
1712-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARMWASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
-
19878182T01 BOTTOM YOKE (BLACK)BOTTOM YOKE (BLACK)
-
19878182T01 BOTTOM YOKE (GRAY)BOTTOM YOKE (GRAY)
-
2053-67684 RING, Retaining, BOTTOM YOKERING, Retaining, BOTTOM YOKE
-
2112-816432 THRUST WASHER, THRUST - SWIVEL BRACKETTHRUST WASHER, THRUST - SWIVEL BRACKET
-
2288882 BUMPER, Top YokeBUMPER, Top Yoke
-
2310-64014 SCREW, (.250-28 x .500), SWIVEL BRACKETSCREW, (.250-28 x .500), SWIVEL BRACKET
-
2454-54457 J CLIPJ CLIP
-
258M0098273 TRIM SENDER ASSEMBLYTRIM SENDER ASSEMBLY
-
2610-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
2713-26996 LOCKWASHER, (#10)LOCKWASHER, (#10)
-
2812-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
-27-815791A92 GASKET SET
(200)GASKET SET
(200) -
-27-815791A92 GASKET SET
(175)GASKET SET
(175)
