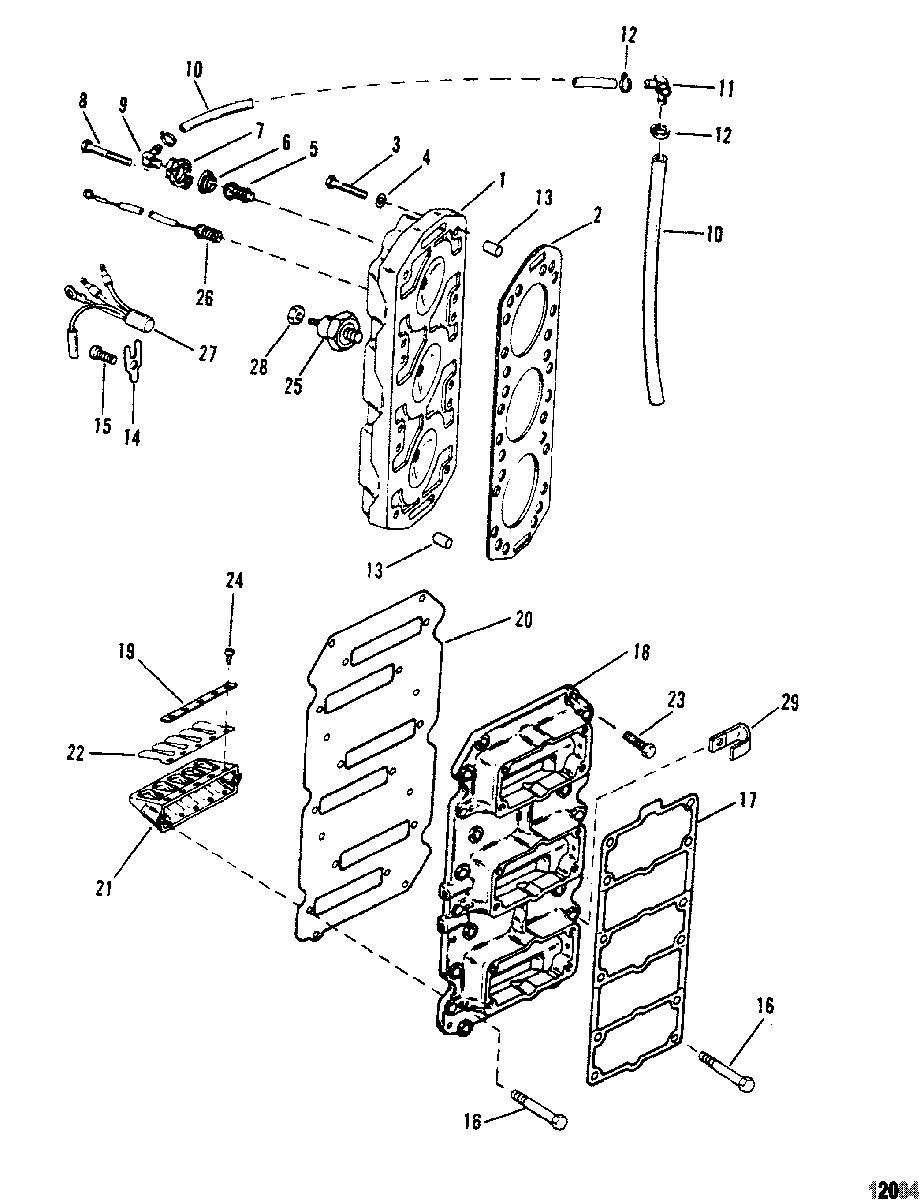

REED BLOCK AND CYLINDER HEAD для Mariner - V-175 (MAG/EFI) 0D000750 THRU 0D081999
-
№АртикулНазвание
-
118789F1 CYLINDER HEAD (175)CYLINDER HEAD (175)
-
118488F2 CYLINDER HEAD (200)CYLINDER HEAD (200)
-
227-18786T GASKET (175)GASKET (175)
-
227-822844T05 GASKET (200)GASKET (200)
-
310-98534 SCREW, (.375-16 x 2.30), CYLINDER HEAD
(QTY. OF 24 ON 175)SCREW, (.375-16 x 2.30), CYLINDER HEAD
(QTY. OF 24 ON 175) -
310-13450 SCREW, (.375-16 x 2.30) (SPECIAL - 200)SCREW, (.375-16 x 2.30) (SPECIAL - 200)
-
412-25909 WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREWWASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
-
575692 THERMOSTATTHERMOSTAT
-
627-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
790390A1 COVER KIT, THERMOSTATCOVER KIT, THERMOSTAT
-
810-35386 SCREW, (.312-18 x 1.00), THERMOSTAT COVERSCREW, (.312-18 x 1.00), THERMOSTAT COVER
-
922-687271 FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSESFITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
-
1032-77653101 HOSE, (24.500 Inches Bulk), WATER DISTRIBUTIONHOSE, (24.500 Inches Bulk), WATER DISTRIBUTION
-
1122-68728 FITTING, THERMOSTAT COVERFITTING, THERMOSTAT COVER
-
1254-816311T TIE STRAP, (8.00 Inches), WATER HOSESTIE STRAP, (8.00 Inches), WATER HOSES
-
1317-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
14137151 RETAINER, SENSOR AND SENDERRETAINER, SENSOR AND SENDER
-
1510-98257 SCREW, (.312-18 x .500), RETAINERSCREW, (.312-18 x .500), RETAINER
-
1610-92160 SCREW, (.250-20 x .750) (175)SCREW, (.250-20 x .750) (175)
-
1610-90197 SCREW, (.250-20 x 1.125) (175)SCREW, (.250-20 x 1.125) (175)
-
1610-28668 SCREW, (.250-20 x .875), REED BLOCK ATTACHING (200)SCREW, (.250-20 x .875), REED BLOCK ATTACHING (200)
-
1727-167371 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
1817735A2 ADAPTOR PLATE (175)ADAPTOR PLATE (175)
-
1812124A3 PLATE ASSEMBLY (200)PLATE ASSEMBLY (200)
-
19961832 REED CLAMP (175)REED CLAMP (175)
-
19903911 REED CLAMP (200)REED CLAMP (200)
-
2027-146972 GASKET (175)GASKET (175)
-
2027-883775 GASKET (200)GASKET (200)
-
2175953 REED BLOCK (175)REED BLOCK (175)
-
2187692 REED BLOCK (200)REED BLOCK (200)
-
2234-75362A1 REED ASSEMBLY (175)REED ASSEMBLY (175)
-
2234-19719A1 REED ASSEMBLY (200)REED ASSEMBLY (200)
-
2310-28668 SCREW, (.250-20 x .875), ADAPTOR PLATESCREW, (.250-20 x .875), ADAPTOR PLATE
-
2410-823588 SCREW, (8-32 x .187), REEDS TO REED BLOCK
(QTY. OF 60 ON 175)SCREW, (8-32 x .187), REEDS TO REED BLOCK
(QTY. OF 60 ON 175) -
25825164A1 DETONATION SENSOR (200)DETONATION SENSOR (200)
-
2697465 TEMPERATURE SENDER (STARBOARD)TEMPERATURE SENDER (STARBOARD)
-
2713536A6 TEMPERATURE SENSOR (PORT)TEMPERATURE SENSOR (PORT)
-
2811-45076 NUT, (#10-32) (200)NUT, (#10-32) (200)
-
2954-55098 J CLIP (200)J CLIP (200)
-
-27-815791A92 GASKET SET
(200)GASKET SET
(200) -
-27-815791A92 GASKET SET
(175)GASKET SET
(175)
