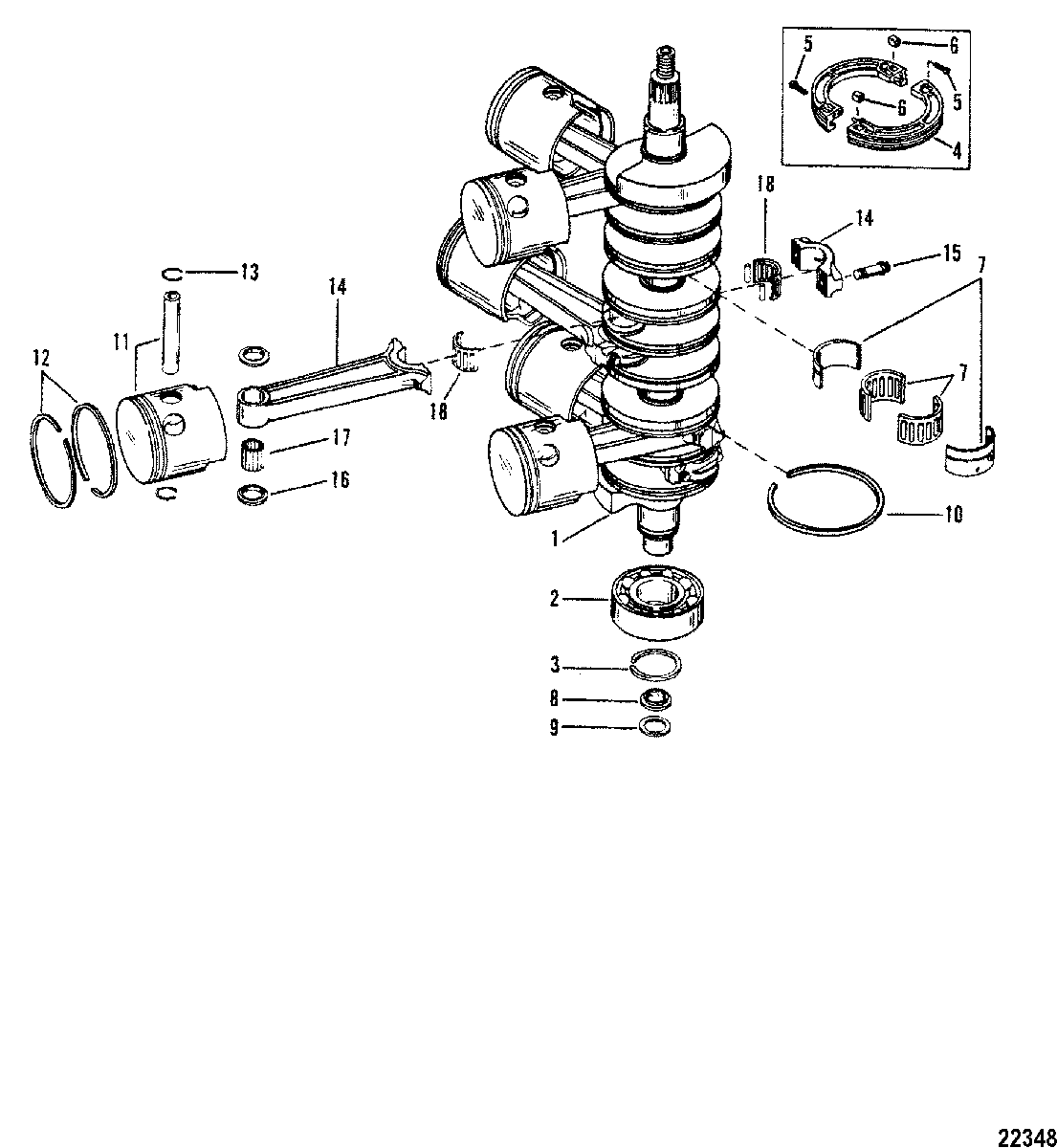

CRANKSHAFT(Conn. Rod Forging # is 644-818141) для Mariner - V-175 (MAG/EFI) 0D000750 THRU 0D081999

№

Артикул

Название
1

455-9536T4 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

294 510 ₽
2

30-67923T BEARING, Ball (LOWER)

BEARING, Ball (LOWER)

5 390 ₽
3

53-67446 RING

RING

230 ₽
4

43-14513A09 GEAR KIT

GEAR KIT

7 950 ₽
5

10-813073 SCREW, (#6-32 x .620)

SCREW, (#6-32 x .620)

150 ₽
6

11-813134 NUT, (#6-32 Special)

NUT, (#6-32 Special)

440 ₽
7

31-16756A6 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

10 750 ₽
8

54196A6 CARRIER ASSEMBLY

CARRIER ASSEMBLY

1 530 ₽
9

65800 PACKING

PACKING

300 ₽
10

39-67377T RING (.124 THICK)

RING (.124 THICK)

1 140 ₽
11

785-9738T9 PISTON (STARBOARD - STANDARD)

PISTON (STARBOARD - STANDARD)

17 440 ₽
11

785-9738T10 PISTON (STARBOARD - .015 O.S.)

PISTON (STARBOARD - .015 O.S.)

23 550 ₽
11

785-9737T9 PISTON (PORT - STANDARD)

PISTON (PORT - STANDARD)

17 760 ₽
11

785-9737A10 PISTON (PORT - .015 O.S.)

PISTON (PORT - .015 O.S.)

25 110 ₽
12

39-815515A12 PISTON RING (STANDARD)

PISTON RING (STANDARD)

28 280 ₽
12

39-815268A4 PISTON RING (.015 O.S.)

PISTON RING (.015 O.S.)

16 010 ₽
13

53-857196 RING, Lock, PISTON

RING, Lock, PISTON

100 ₽
14

644-818141A13 CONNECTING ROD KIT

CONNECTING ROD KIT

41 260 ₽
15

10-763491 SCREW, (.312-24 x .875), CONNECTING ROD

SCREW, (.312-24 x .875), CONNECTING ROD

460 ₽
16

12-8M0012298 WASHER, NEEDLE LOCATING

WASHER, NEEDLE LOCATING

450 ₽
17

29-822553 BEARING, Needle, PISTON END

BEARING, Needle, PISTON END

50 ₽
18

31-8M0045428 BEARING KIT

BEARING KIT

7 260 ₽
-

27-815791A92 GASKET SET
(200)

GASKET SET
(200)

20 840 ₽
-

27-815791A92 GASKET SET
(175)

GASKET SET
(175)

20 840 ₽
