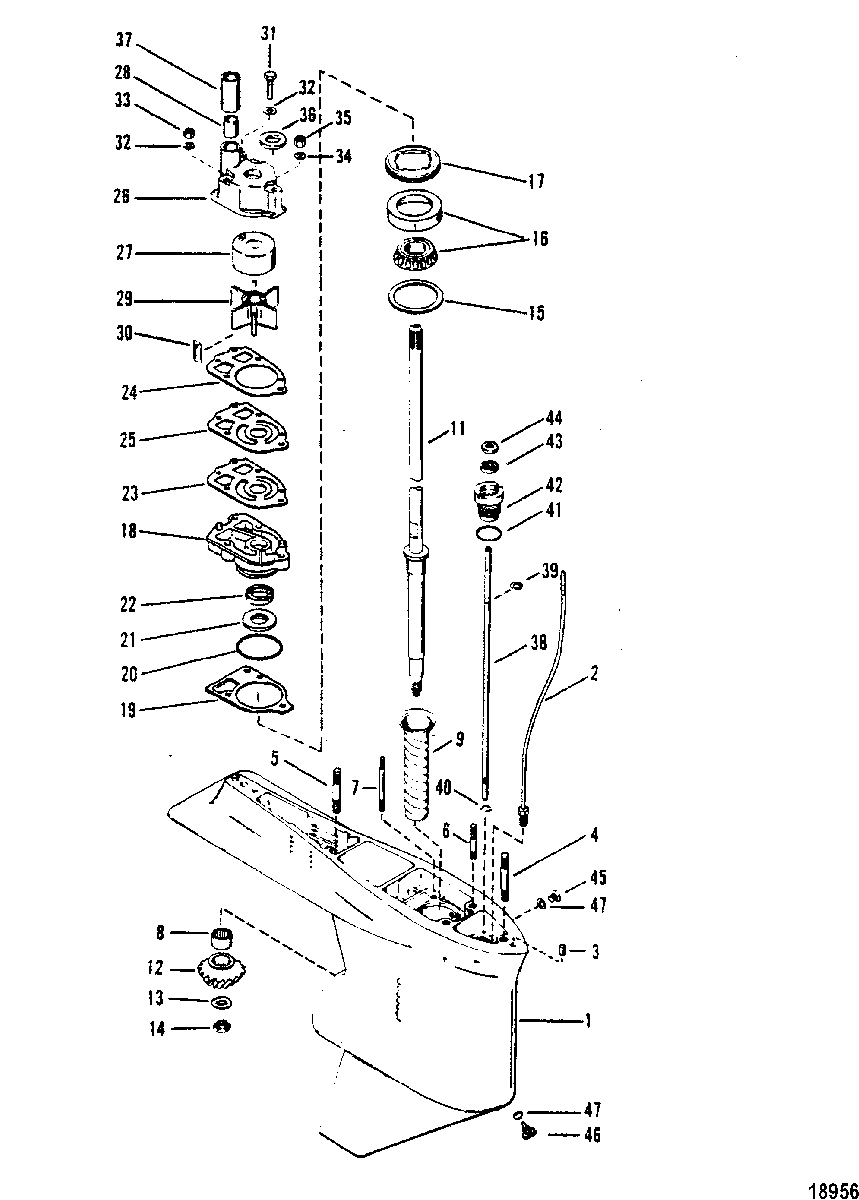

Gear Housing(Driveshaft)(With a Driveshaft Nut) для Mariner - V-1500 5600162 THRU 0A904645

  • №
    Артикул
    Название
  • 0
    1647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (LONG)(BLACK)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (LONG)(BLACK)
  • 0
    1647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (X-LONG)(BLACK)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (X-LONG)(BLACK)
  • 0
    1647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (LONG)(GRAY)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (LONG)(GRAY)
  • 0
    1647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (X-LONG) GRAY)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (X-LONG) GRAY)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (BASIC)(BLACK)
    GEAR HOUSING ASSEMBLY
    (BASIC)(BLACK)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (BASIC)(GRAY)
    GEAR HOUSING ASSEMBLY
    (BASIC)(GRAY)
  • 2
    22-85822A10 CONNECTOR ASSEMBLY
    CONNECTOR ASSEMBLY
  • 3
    17-43044 PIN, Dowel
    PIN, Dowel
  • 4
    16-786382 STUD, (.438 x 3.12)
    (LONG)
    STUD, (.438 x 3.12)
    (LONG)
  • 4
    16-8M0034464 STUD, (.438 x 3.69)
    (X-LONG)
    STUD, (.438 x 3.69)
    (X-LONG)
  • 5
    16-8M0133358 STUD, (.44 x 2.06)
    STUD, (.44 x 2.06)
  • 6
    16-8M0034463 STUD, (.312 x 3.38)
    STUD, (.312 x 3.38)
  • 7
    16-306671 STUD, (.250-20/.250-28 x 3.125)
    STUD, (.250-20/.250-28 x 3.125)
  • 8
    31-42647A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 9
    23-43998 SLEEVE
    SLEEVE
  • 11
    45-897624T DRIVESHAFT
    (LONG)
    DRIVESHAFT
    (LONG)
  • 11
    45-897625T DRIVESHAFT
    (X-LONG)
    DRIVESHAFT
    (X-LONG)
  • 12
    NSS NOT SOLD SEPARATE, Pinion Gear (PART OF 43-44102A2)
    NOT SOLD SEPARATE, Pinion Gear (PART OF 43-44102A2)
  • 13
    12-92721 WASHER
    WASHER
  • 14
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 15
    15-8M0063267 SHIM SET
    SHIM SET
  • 16
    31-36387A1 BEARING, Roller
    BEARING, Roller
  • 17
    8245191 NUT
    NUT
  • 18
    46-8M0077147 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 19
    27-426311 GASKET
    GASKET
  • 20
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 21
    26-89238 SEAL, Oil
    SEAL, Oil
  • 22
    26-16977 SEAL, Oil
    SEAL, Oil
  • 23
    27-8M0090319 GASKET, LOWER
    GASKET, LOWER
  • 24
    27-858524 GASKET, UPPER
    GASKET, UPPER
  • 25
    324351 FACE PLATE
    FACE PLATE
  • 26
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 27
    48752T INSERT
    INSERT
  • 28
    26-38970 SEAL, RUBBER
    SEAL, RUBBER
  • 29
    47-89984T4 IMPELLER
    IMPELLER
  • 30
    28-8M0032834 KEY
    KEY
  • 31
    10-96411 SCREW, (#14-8 x 2.25)
    SCREW, (#14-8 x 2.25)
  • 32
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 33
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 34
    12-36001 WASHER
    WASHER
  • 35
    11-13436 NUT
    NUT
  • 36
    25-30271 RING, Rubber
    (Use where Applicable)
    RING, Rubber
    (Use where Applicable)
  • 37
    23-29804T SLEEVE
    SLEEVE
  • 38
    789022 SHAFT
    SHAFT
  • 39
    53-29641 E RING
    E RING
  • 40
    53-78907 RING, Retaining
    (Use where Applicable)
    RING, Retaining
    (Use where Applicable)
  • 41
    25-25439 O-RING, (.862 x .103)
    O-RING, (.862 x .103)
  • 42
    23-77631A2 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 43
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 44
    12-77674 WASHER, RUBBER
    WASHER, RUBBER
  • 45
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER
    SCREW, (.375-16 x .250), GREASE FILLER
  • 46
    22-8M0058389 SCREW, Magnetic, DRAIN
    SCREW, Magnetic, DRAIN
  • 47
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • -
    46-96148A8 REBUILD KIT, Water Pump
    REBUILD KIT, Water Pump
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
  • -
    27-90484A88 GASKET SET
    GASKET SET
