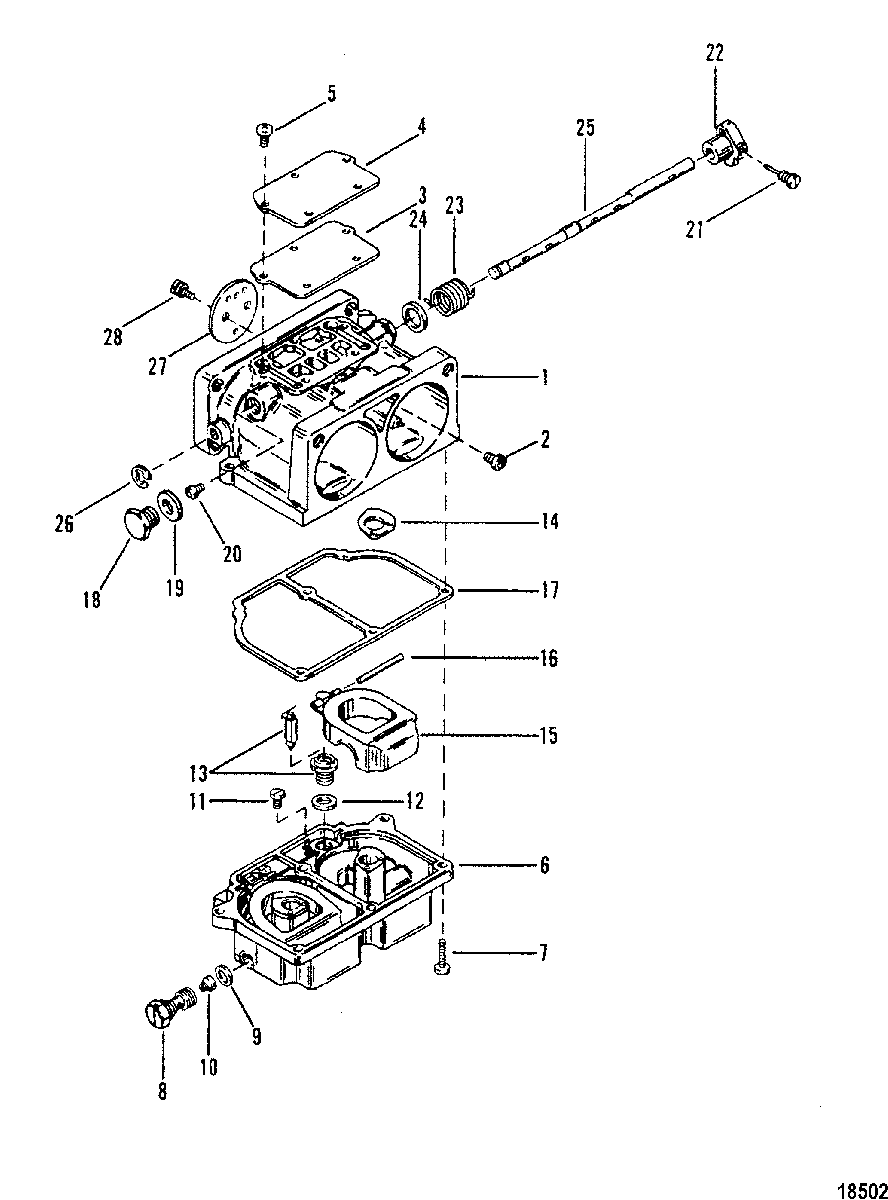

Carburetor Assembly для Mariner - V-1500 5600162 THRU 0A904645

№

Артикул

Название
1

1382-7563A1 CARBURATOR
(WH-9)

CARBURATOR
(WH-9)
1

1382-7563A4 CARBURETOR
(TOP)(WH-12)

CARBURETOR
(TOP)(WH-12)
1

1382-7563A5 CARBURETOR
(CENTER)(WH-12)

CARBURETOR
(CENTER)(WH-12)
1

1382-7563A6 CARBURETOR
(BOTTOM)(WH-12)

CARBURETOR
(BOTTOM)(WH-12)
1

1374-5643A97 CARBURETOR
(TOP)(WH-29)

CARBURETOR
(TOP)(WH-29)
1

1374-5643A98 CARBURETOR
(CENTER)(WH-29)

CARBURETOR
(CENTER)(WH-29)
1

1374-5643A99 CARBURETOR
(BOTTOM)(WH-29)

CARBURETOR
(BOTTOM)(WH-29)
2

1399-6249 JET, Main (.096), VENT BOWL

JET, Main (.096), VENT BOWL
2

1395-7335 JET, (.098), VENT BOWL

JET, (.098), VENT BOWL
3

NSS NOT SOLD SEPARATE, GASKET, COVER PLATE

NOT SOLD SEPARATE, GASKET, COVER PLATE
4

1395-6032 PLATE

PLATE
5

NSS NOT SOLD SEPARATE, SCREW, COVER PLATE

NOT SOLD SEPARATE, SCREW, COVER PLATE
6

NLA No Longer Available, FUEL BOWL
(WH-2/WH-9)

No Longer Available, FUEL BOWL
(WH-2/WH-9)
6

1395-7822 BOWL, Fuel
(WH-27/WH-29)

BOWL, Fuel
(WH-27/WH-29)
6

1395-7823 BOWL, Fuel
(TOP)(WH-12/WH-23)

BOWL, Fuel
(TOP)(WH-12/WH-23)
6

1395-7822 BOWL, Fuel
(CENTER/BOTTOM) (WH-12/WH-23)

BOWL, Fuel
(CENTER/BOTTOM) (WH-12/WH-23)
7

NSS NOT SOLD SEPARATE, SCREW, FUEL BOWL

NOT SOLD SEPARATE, SCREW, FUEL BOWL
8

1395-6025 PLUG, MAIN JET

PLUG, MAIN JET
9

NSS NOT SOLD SEPARATE, GASKET, MAIN JET

NOT SOLD SEPARATE, GASKET, MAIN JET
10

1399-4216 JET, (.064), MAIN FUEL

JET, (.064), MAIN FUEL
10

1399-5225 JET, Main (.054), MAIN FUEL

JET, Main (.054), MAIN FUEL
10

1395-6359 JET, (.052), MAIN FUEL

JET, (.052), MAIN FUEL
10

1395-6028 JET, (.050), MAIN FUEL

JET, (.050), MAIN FUEL
10

1395-6246 JET, (.048), MAIN FUEL

JET, (.048), MAIN FUEL
11

NSS NOT SOLD SEPARATE, SCREW, FLOAT PIN

NOT SOLD SEPARATE, SCREW, FLOAT PIN
12

NSS NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT

NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT
13

1395-7624 NEEDLE/SEAT KIT, Inlet
(WH-9)

NEEDLE/SEAT KIT, Inlet
(WH-9)
13

1395-7824 NEEDLE/SEAT ASSEMBLY, Inlet

NEEDLE/SEAT ASSEMBLY, Inlet
14

NSS NOT SOLD SEPARATE, GASKET, NOZZLE BOSS

NOT SOLD SEPARATE, GASKET, NOZZLE BOSS
15

1395-9267 FLOAT
(WH-9)

FLOAT
(WH-9)
15

1395-9267 FLOAT

FLOAT
16

NSS NOT SOLD SEPARATE, PIN, FLOAT LEVER

NOT SOLD SEPARATE, PIN, FLOAT LEVER
17

NSS NOT SOLD SEPARATE, GASKET, FUEL BOWL

NOT SOLD SEPARATE, GASKET, FUEL BOWL
18

1395-4541 SCREW, IDLE AIR BLEED JET

SCREW, IDLE AIR BLEED JET
19

NSS NOT SOLD SEPARATE, GASKET, BLEED JET PLUG

NOT SOLD SEPARATE, GASKET, BLEED JET PLUG
20

1395-6359 JET, (.052), IDLE AIR BLEED

JET, (.052), IDLE AIR BLEED
20

1395-6487 JET, Main (.060), IDLE AIR BLEED

JET, Main (.060), IDLE AIR BLEED
20

1399-5225 JET, Main (.054), IDLE AIR BLEED

JET, Main (.054), IDLE AIR BLEED
20

1399-5213 JET, Main (.056), IDLE AIR BLEED

JET, Main (.056), IDLE AIR BLEED
21

1395-6027 SCREW, THROTTLE LEVER

SCREW, THROTTLE LEVER
22

67752 LEVER

LEVER
23

NSS NOT SOLD SEPARATE, SPRING, THROTTLE RETURN

NOT SOLD SEPARATE, SPRING, THROTTLE RETURN
24

1395-6031 SPACER, THROTTLE LEVER

SPACER, THROTTLE LEVER
25

1395-6022 SHAFT

SHAFT
26

NSS NOT SOLD SEPARATE, RING, RETAINER - THROTTLE SHAFT

NOT SOLD SEPARATE, RING, RETAINER - THROTTLE SHAFT
27

NLA No Longer Available, Throttle Valve
(WH-2)

No Longer Available, Throttle Valve
(WH-2)
27

1395-7626 VALVE, Throttle
(WH-9/WH-12)

VALVE, Throttle
(WH-9/WH-12)
27

1395-6023 VALVE, Throttle

VALVE, Throttle
28

NSS NOT SOLD SEPARATE, SCREW, THROTTLE VALVE

NOT SOLD SEPARATE, SCREW, THROTTLE VALVE
-

1395-6452 GASKET KIT

GASKET KIT
-

1395-7826 REPAIR KIT
(WH-2/WH-9/WH-12)

REPAIR KIT
(WH-2/WH-9/WH-12)
-

1395-8506 REPAIR KIT, Carburetor

REPAIR KIT, Carburetor
