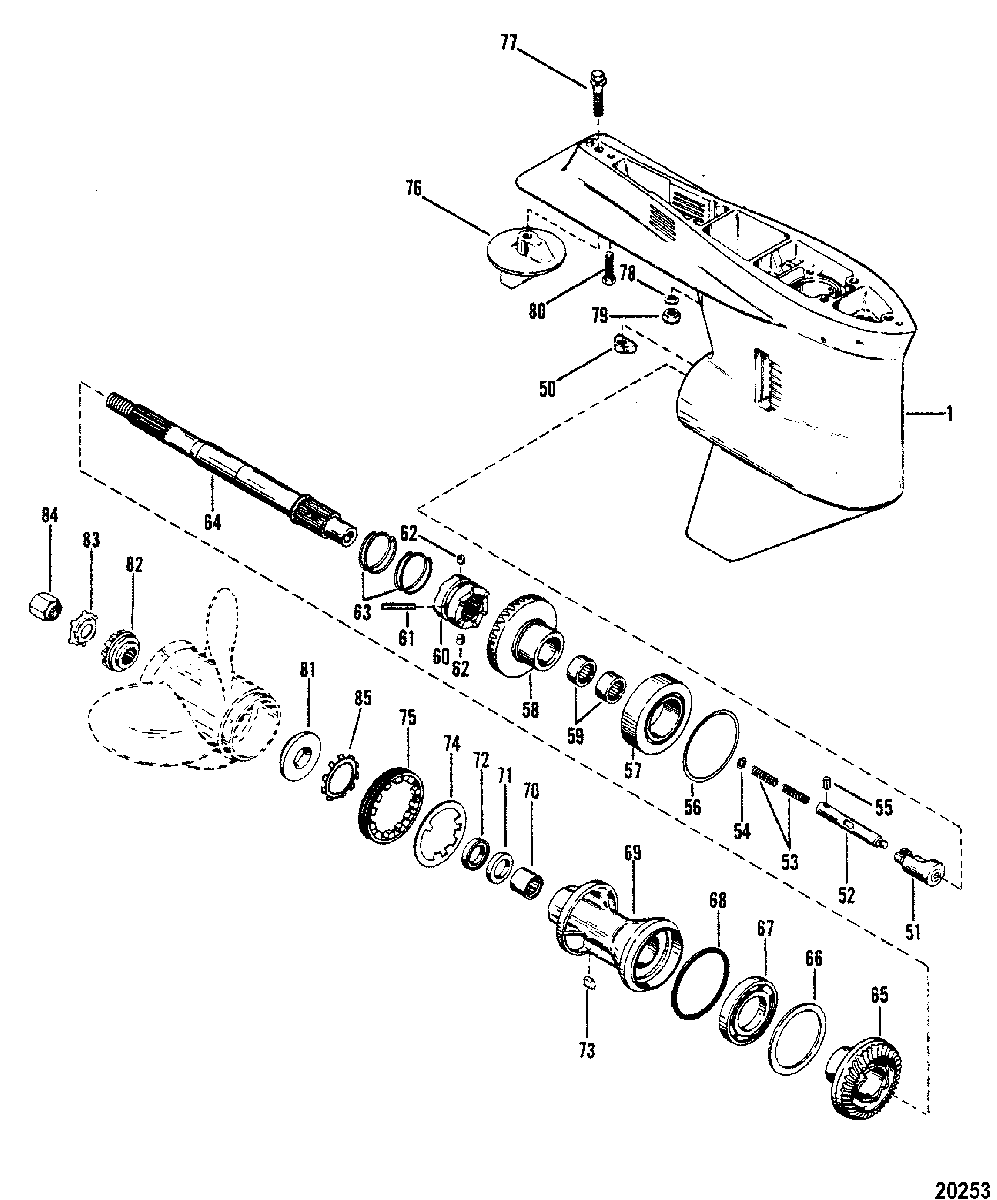

Gear Housing, Propeller Shaft - Without a Driveshaft Nut для Mariner - V-1500 5600162 THRU 0A904645

  • №
    Артикул
    Название
  • 0
    1647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (LONG)(BLACK)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (LONG)(BLACK)
  • 0
    1647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (LONG)(GRAY)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (LONG)(GRAY)
  • 0
    1647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (X-LONG)(BLACK)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (X-LONG)(BLACK)
  • 0
    1647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (X-LONG)(GRAY)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
    (X-LONG)(GRAY)
  • 50
    760394 SHIFT CAM
    (GEAR HOUSING CASTING #1647-6670C)
    SHIFT CAM
    (GEAR HOUSING CASTING #1647-6670C)
  • 50
    789562 SHIFT CAM
    (GEAR HOUSING CASTING #1647-8675C)
    SHIFT CAM
    (GEAR HOUSING CASTING #1647-8675C)
  • 51
    67888 FOLLOWER, Cam
    (GEAR HOUSING CASTING #1647-6670C)
    FOLLOWER, Cam
    (GEAR HOUSING CASTING #1647-6670C)
  • 51
    89594A1 FOLLOWER ASSEMBLY
    (GEAR HOUSING CASTING #1647-8675C)
    FOLLOWER ASSEMBLY
    (GEAR HOUSING CASTING #1647-8675C)
  • 52/53
    24-76962A1 SPRING/SLIDE ASSEMBLY
    (GEAR HOUSING CASTING #1647-6670C)
    SPRING/SLIDE ASSEMBLY
    (GEAR HOUSING CASTING #1647-6670C)
  • 52
    79911A1 ROD
    (GEAR HOUSING CASTING #1647-8675C)
    ROD
    (GEAR HOUSING CASTING #1647-8675C)
  • 53
    24-79910 SPRING
    (GEAR HOUSING CASTING #1647-8675C)
    SPRING
    (GEAR HOUSING CASTING #1647-8675C)
  • 54
    12-78910 WASHER
    (GEAR HOUSING CASTING #1647-8675C)
    WASHER
    (GEAR HOUSING CASTING #1647-8675C)
  • 55
    17-8M0084245 PIN
    (GEAR HOUSING CASTING #1647-8675C)
    PIN
    (GEAR HOUSING CASTING #1647-8675C)
  • 56
    15-47397A1 SHIM SET
    SHIM SET
  • 57
    31-78172A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 58
    43-78082A3 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 59
    31-73363T BEARING, Roller
    BEARING, Roller
  • 60
    52-67887 CLUTCH
    (GEAR HOUSING CASTING #1647-6670C)
    CLUTCH
    (GEAR HOUSING CASTING #1647-6670C)
  • 60
    52-8M0100493 RATCHET
    (GEAR HOUSING CASTING #1647-8675C)
    RATCHET
    (GEAR HOUSING CASTING #1647-8675C)
  • 61
    17-8M0100263 PIN, Cross
    (GEAR HOUSING CASTING #1647-6670C)
    PIN, Cross
    (GEAR HOUSING CASTING #1647-6670C)
  • 61
    17-8M0084243 PIN, Cross
    (GEAR HOUSING CASTING #1647-8675C)
    PIN, Cross
    (GEAR HOUSING CASTING #1647-8675C)
  • 62
    17-78909 PIN, Detent
    (GEAR HOUSING CASTING #1647-8675C)
    PIN, Detent
    (GEAR HOUSING CASTING #1647-8675C)
  • 63
    24-30893 SPRING
    (GEAR HOUSING CASTING #1647-6670C)
    SPRING
    (GEAR HOUSING CASTING #1647-6670C)
  • 63
    24-78962 SPRING
    (GEAR HOUSING CASTING #1647-8675C)
    SPRING
    (GEAR HOUSING CASTING #1647-8675C)
  • 64
    44-67886 PROPELLER SHAFT
    (GEAR HOUSING CASTING #1647-6670C)
    PROPELLER SHAFT
    (GEAR HOUSING CASTING #1647-6670C)
  • 64
    44-94148 PROPELLER SHAFT
    (GEAR HOUSING CASTING #1647-8675C)
    PROPELLER SHAFT
    (GEAR HOUSING CASTING #1647-8675C)
  • 65
    43-67889T GEAR, Reverse
    (GEAR HOUSING CASTING #1647-6670C)
    GEAR, Reverse
    (GEAR HOUSING CASTING #1647-6670C)
  • 65
    43-85462T GEAR, Reverse
    (GEAR HOUSING CASTING #1647-8675C)
    GEAR, Reverse
    (GEAR HOUSING CASTING #1647-8675C)
  • 66
    681001 RING, Thrust
    RING, Thrust
  • 67
    30-88957T BEARING, Ball
    BEARING, Ball
  • 68
    25-31534 O-RING
    O-RING
  • 69
    43567T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 70
    31-30956T BEARING, Needle
    BEARING, Needle
  • 71
    26-76868 SEAL
    (NOTE:If you Mercury SERIAL is SN# 6042945 AND BELOW , Mariner SN# 6038680 AND BELOW or Mercury/Mariner SN# 6616991 AND ABOVE, a quantity of two (2) of Ref. #71 (26-76868) must be ordered. Ref. #72 is not used.
    SEAL
    (NOTE:If you Mercury SERIAL is SN# 6042945 AND BELOW , Mariner SN# 6038680 AND BELOW or Mercury/Mariner SN# 6616991 AND ABOVE, a quantity of two (2) of Ref. #71 (26-76868) must be ordered. Ref. #72 is not used.
  • 72
    26-70081 SEAL, Oil
    (NOTE:If you Mercury SERIAL is SN# 6042945 AND BELOW , Mariner SN# 6038680 AND BELOW or Mercury/Mariner SN# 6616991 AND ABOVE, a quantity of two (2) of Ref. #71 (26-76868) must be ordered. Ref. #72 is not used.
    SEAL, Oil
    (NOTE:If you Mercury SERIAL is SN# 6042945 AND BELOW , Mariner SN# 6038680 AND BELOW or Mercury/Mariner SN# 6616991 AND ABOVE, a quantity of two (2) of Ref. #71 (26-76868) must be ordered. Ref. #72 is not used.
  • 73
    28-30281 KEY
    KEY
  • 74
    14-79447 TAB WASHER
    TAB WASHER
  • 75
    8M2000347 RETAINER
    RETAINER
  • 76
    97-31640Q4 TRIM TAB ASSEMBLY
    TRIM TAB ASSEMBLY
  • 77
    10-66024 SCREW, (.437-14 x 1.75)
    SCREW, (.437-14 x 1.75)
  • 78
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 79
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 80
    10-65210 SCREW, (.375-16 x 1.00)
    (LONG)
    SCREW, (.375-16 x 1.00)
    (LONG)
  • 80
    10-74727 SCREW, (.375-16 x 6.00)
    (X-LONG)
    SCREW, (.375-16 x 6.00)
    (X-LONG)
  • 81
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 82
    12-31211Q03 WASHER, Splined
    WASHER, Splined
  • 83
    14-816629Q TAB WASHER
    TAB WASHER
  • 84
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • 85
    13-423511 LOCKWASHER, Toothed
    SN# 6616991 & Up
    LOCKWASHER, Toothed
    SN# 6616991 & Up
  • -
    27-90484A88 GASKET SET
    SN# ME-6042946/MA-6038681 & Up
    GASKET SET
    SN# ME-6042946/MA-6038681 & Up
  • -
    26-55682A1 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
