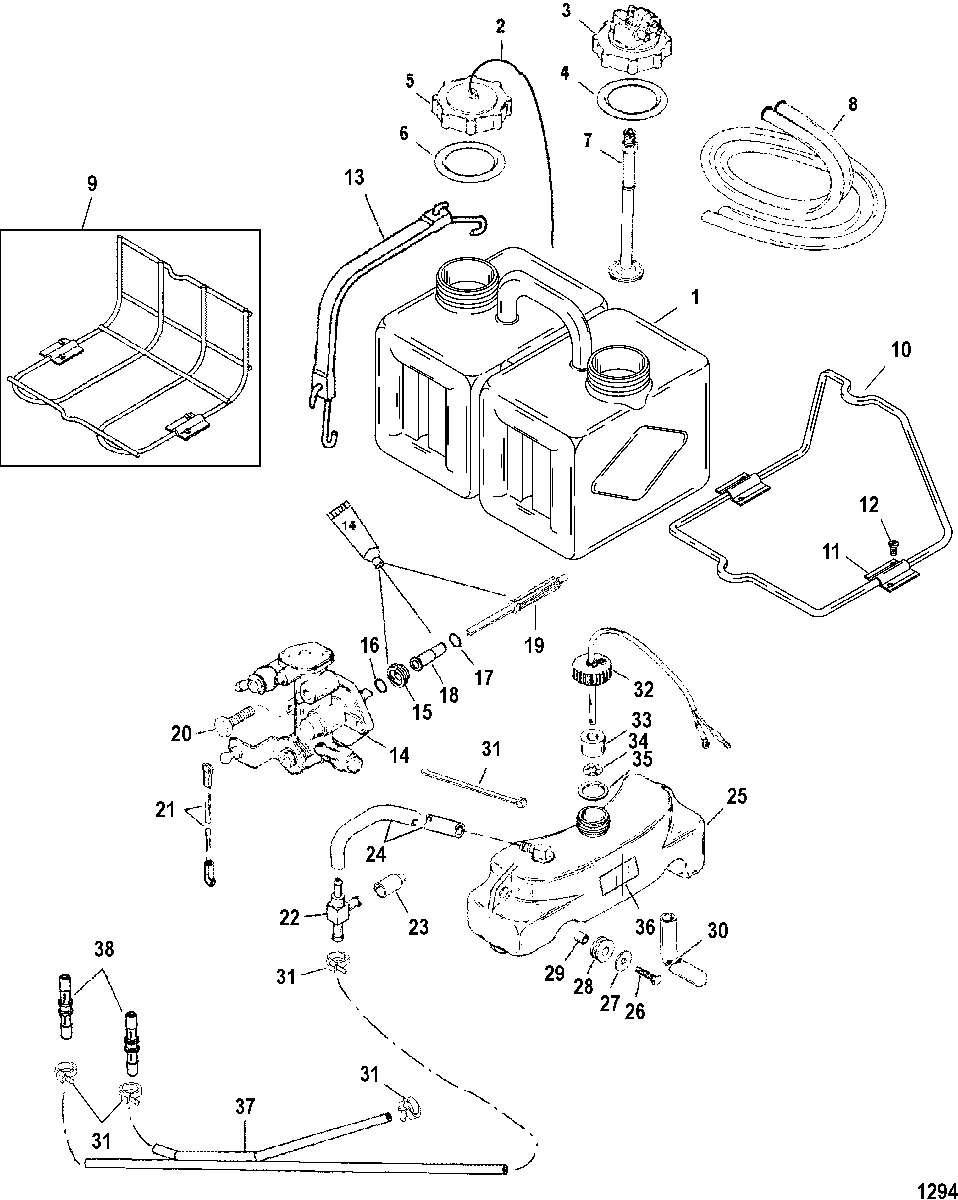

Oil Injection Components для Mariner - V-140 (INTERNATIONAL) 0T178500 THRU 1B226999

  • №
    Артикул
    Название
  • -
    1257-8742A22 TANK ASSEMBLY, Remote Oil
    (USE WITH DESIGN I BRACKET)
    TANK ASSEMBLY, Remote Oil
    (USE WITH DESIGN I BRACKET)
  • -
    1257-8742A22 TANK ASSEMBLY, Remote Oil
    (USE WITH DESIGN II BRACKET)
    TANK ASSEMBLY, Remote Oil
    (USE WITH DESIGN II BRACKET)
  • 1
    1257-87421 TANK
    TANK
  • 2
    NSS NOT SOLD SEPARATE, Cord
    NOT SOLD SEPARATE, Cord
  • 3
    816190A4 SENDER ASSEMBLY, Oil Level, Adaptor
    SENDER ASSEMBLY, Oil Level, Adaptor
  • 4
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 5
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 6
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 7
    32-99802 TUBE
    TUBE
  • 8
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 9
    12335A1 BRACKET KIT
    (DESIGN I)
    BRACKET KIT
    (DESIGN I)
  • 10
    884481A1 BRACKET KIT
    (DESIGN II)
    BRACKET KIT
    (DESIGN II)
  • 11
    12320 BRACKET
    BRACKET
  • 12
    10-79968 SCREW, (#12-11 x .750)
    SCREW, (#12-11 x .750)
  • 13
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 14
    815698T PUMP, Oil
    (135)
    PUMP, Oil
    (135)
  • 14
    815699T PUMP ASSEMBLY, Oil
    (140/150/XR6/MAGNUM III/200)
    PUMP ASSEMBLY, Oil
    (140/150/XR6/MAGNUM III/200)
  • 15
    8141032 BUSHING, Worm
    BUSHING, Worm
  • 16
    25-11379 O-RING
    O-RING
  • 17
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 18
    23-859112 BEARING, Drive Gear
    BEARING, Drive Gear
  • 19
    43-8591111 GEAR, Driven
    GEAR, Driven
  • 20
    10-32228 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 20
    10-41507 SCREW, (#10-32 x 1.120)
    SCREW, (#10-32 x 1.120)
  • 21
    193855 LINK ASSEMBLY, Throttle Lever to Oil PUmp
    LINK ASSEMBLY, Throttle Lever to Oil PUmp
  • 22
    22-424254 FITTING
    FITTING
  • 23
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 24
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 6 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 6 Inches)
  • 25
    994436 RESERVOIR
    RESERVOIR
  • 26
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 27
    12-42118 WASHER
    WASHER
  • 28
    25-42117 GROMMET
    GROMMET
  • 29
    23-42116 BUSHING
    BUSHING
  • 30
    32-82381455 TUBING, (25.00 Inches Bulk) (Cut to 4-3/4 Inches) Oil Reservoir to Oil Pump
    TUBING, (25.00 Inches Bulk) (Cut to 4-3/4 Inches) Oil Reservoir to Oil Pump
  • 31
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 32
    36-43300A5 CAP ASSEMBLY
    CAP ASSEMBLY
  • 33
    99022A1 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 34
    11-99265 PUSH NUT
    PUSH NUT
  • 35
    27-43307T GASKET
    GASKET
  • 36
    NSS NOT SOLD SEPARATE, Decal-reservoir Warning
    NOT SOLD SEPARATE, Decal-reservoir Warning
  • 37
    32-8588531 HOSE, To Check Valve on Block
    HOSE, To Check Valve on Block
  • 38
    22-858955 CONNECTOR
    CONNECTOR
