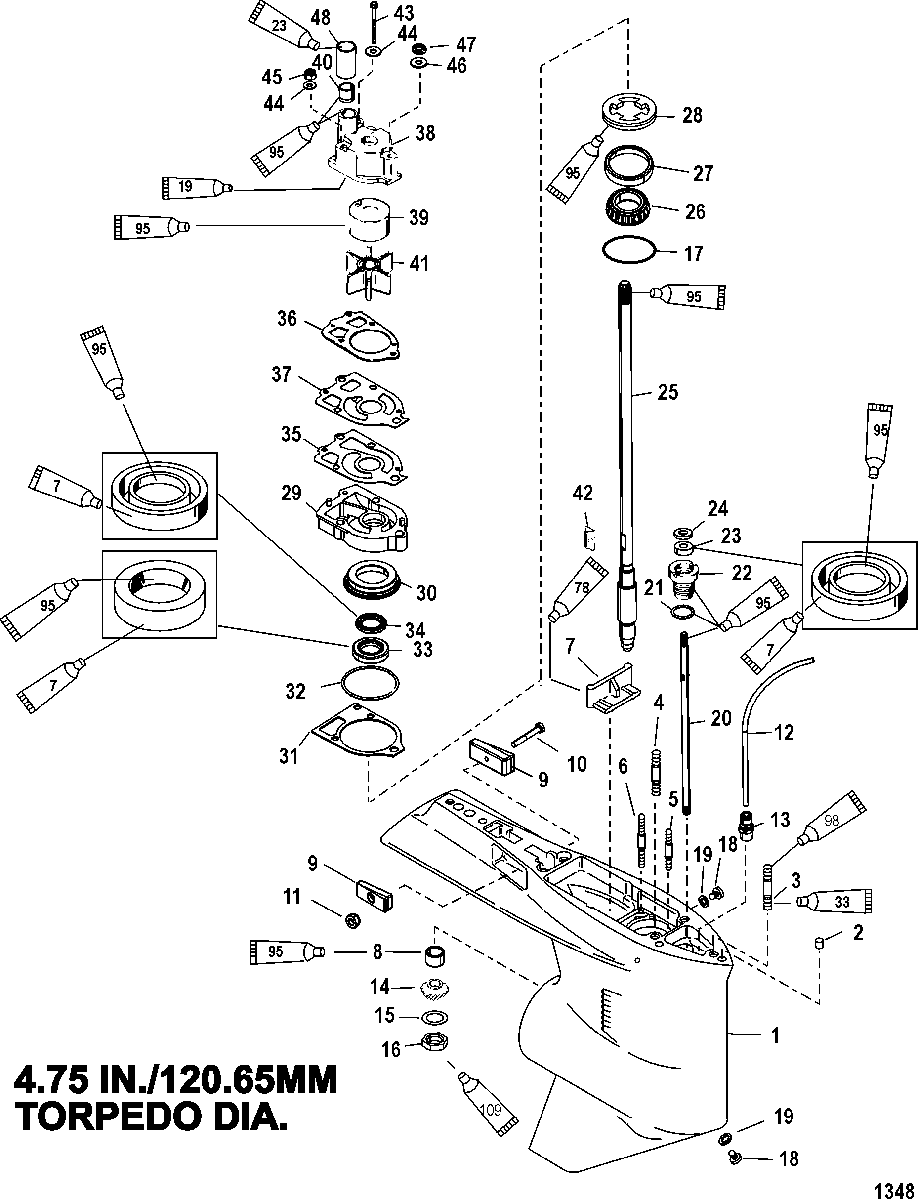

Gear Housing(Driveshaft)(Standard/Counter Rotation) для Mariner - V-140 (INTERNATIONAL) 0T178500 THRU 1B226999

№

Артикул

Название
-

1647-9148T84 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Standard - Long - 1.87:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Standard - Long - 1.87:1)

349 780 ₽
-

1647-9148T85 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Standard - X-Long - 1.87:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Standard - X-Long - 1.87:1)

349 750 ₽
-

1647-9148T81 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Standard - Long - 2:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Standard - Long - 2:1)

348 590 ₽
-

1647-9148T82 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Standard - X-Long - 2:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Standard - X-Long - 2:1)

348 570 ₽
-

1647-9148T86 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Counter Rotation)(1.87:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Counter Rotation)(1.87:1)

353 910 ₽
-

1647-9148T83 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Counter Rotation)(2:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Counter Rotation)(2:1)

336 290 ₽
1

1647-9148T93 GEAR HOUSING ASSEMBLY, Basic

GEAR HOUSING ASSEMBLY, Basic

159 330 ₽
2

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
3

16-786382 STUD, (.437-14/.437-20 x 3.120)
(LONG)

STUD, (.437-14/.437-20 x 3.120)
(LONG)

560 ₽
3

16-8M0034464 STUD, (.438 x 3.82 Inches)
(X-LONG)

STUD, (.438 x 3.82 Inches)
(X-LONG)

1 370 ₽
4

16-8M0133358 STUD, (.437-14/.437-20 x 2.060)

STUD, (.437-14/.437-20 x 2.060)

0 ₽
5

16-8M0034463 STUD, (.312-18/.324-24 x 3.380)

STUD, (.312-18/.324-24 x 3.380)

670 ₽
6

16-306671 STUD, (.250-20/.250-28 x 3.125)

STUD, (.250-20/.250-28 x 3.125)

0 ₽
7

8M0039169 FILLER BLOCK

FILLER BLOCK

3 120 ₽
8

31-42647A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

6 480 ₽
9

97-826134Q ANODE

ANODE

1 120 ₽
10

10-4000333 SCREW, (M6 x 40)

SCREW, (M6 x 40)

290 ₽
11

11-401386 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

330 ₽
12

32-85944975 TUBING, (72.00 Inches Bulk), Cut to 10 Inches
Long

TUBING, (72.00 Inches Bulk), Cut to 10 Inches
Long

4 740 ₽
12

32-85944975 TUBING, (72.00 Inches Bulk), Cut to 12 Inches
X-Long

TUBING, (72.00 Inches Bulk), Cut to 12 Inches
X-Long

4 740 ₽
13

22-881866 FITTING

FITTING

560 ₽
14

NSS NOT SOLD SEPARATE, Pinion Gear
(1.87:1- 15 Teeth)(Part of 43-828174A2)

NOT SOLD SEPARATE, Pinion Gear
(1.87:1- 15 Teeth)(Part of 43-828174A2)

0 ₽
14

43-44101T3 GEAR, Pinion
(2:1 - 14 Teeth)

GEAR, Pinion
(2:1 - 14 Teeth)

12 670 ₽
15

12-92721 WASHER

WASHER

120 ₽
16

11-35921 NUT, (.625-18)

NUT, (.625-18)

1 020 ₽
17

15-8M0063267 SHIM SET

SHIM SET

2 700 ₽
18

10-79953Q04 SCREW KIT, (.375-16 x .250) Drain

SCREW KIT, (.375-16 x .250) Drain

1 000 ₽
19

12-191833 SEAL

SEAL

60 ₽
20

789022 SHIFT SHAFT

SHIFT SHAFT

9 650 ₽
21

25-25439 O-RING, (.862 x .103)

O-RING, (.862 x .103)

190 ₽
22

23-77631A2 BUSHING ASSEMBLY

BUSHING ASSEMBLY

1 980 ₽
23

26-8164641 SEAL, Oil

SEAL, Oil

670 ₽
24

12-77674 WASHER

WASHER

100 ₽
25

45-897624T DRIVESHAFT
(LONG)

DRIVESHAFT
(LONG)

68 740 ₽
25

45-897625T DRIVESHAFT
(X-LONG)

DRIVESHAFT
(X-LONG)

70 530 ₽
26

31-36387A1 BEARING, Roller

BEARING, Roller

5 340 ₽
27

NSS NOT SOLD SEPARATE, Cup

NOT SOLD SEPARATE, Cup

0 ₽
28

8245191 RETAINER

RETAINER

500 ₽
29

46-8M0077147 BASE ASSEMBLY, Water Pump

BASE ASSEMBLY, Water Pump

4 550 ₽
30

NSS NOT SOLD SEPARATE, Retainer

NOT SOLD SEPARATE, Retainer

0 ₽
31

27-426311 GASKET

GASKET

280 ₽
32

25-896523 O-RING, (2.175 x .175)

O-RING, (2.175 x .175)

230 ₽
33

26-89238 SEAL, Oil

SEAL, Oil

3 570 ₽
34

26-16977 SEAL, Oil

SEAL, Oil

1 550 ₽
35

27-8M0090319 GASKET, Lower

GASKET, Lower

280 ₽
36

27-858524 GASKET

GASKET

260 ₽
37

324351 FACE PLATE

FACE PLATE

650 ₽
38

46-96148T1 BODY ASSEMBLY, Water Pump

BODY ASSEMBLY, Water Pump

6 130 ₽
39

48752T INSERT

INSERT

860 ₽
40

26-38970 SEAL

SEAL

340 ₽
41

47-89984T3 IMPELLER

IMPELLER

3 320 ₽
42

28-8M0032834 KEY

KEY

330 ₽
43

10-96411 SCREW, (#14-8 x 2.25)

SCREW, (#14-8 x 2.25)

210 ₽
44

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
45

11-8267119 NUT, (.250-28)

NUT, (.250-28)

180 ₽
46

12-36001 WASHER

WASHER

100 ₽
47

11-13436 NUT

NUT

220 ₽
48

23-29804T SLEEVE

SLEEVE

630 ₽
-

46-96148A8 BODY ASSEMBLY, Water Pump

BODY ASSEMBLY, Water Pump

6 860 ₽
-

26-89238A2 SEAL KIT

SEAL KIT

8 330 ₽
-

31-803033T1 BEARING AND SEAL KIT (W/O Foward Bearing)
(Standard Rotation)

BEARING AND SEAL KIT (W/O Foward Bearing)
(Standard Rotation)

36 760 ₽
-

31-803034T1 BEARING AND SEAL KIT (W/O Foward Bearing)
(Counter Rotation)

BEARING AND SEAL KIT (W/O Foward Bearing)
(Counter Rotation)

74 980 ₽
-

43-803615T2 GEAR ASSEMBLY, Pinion/Forward
(Standard Rotation)(1.87:1)

GEAR ASSEMBLY, Pinion/Forward
(Standard Rotation)(1.87:1)

52 500 ₽
-

43-803612T2 GEAR ASSEMBLY, Pinion/Forward
(Standard Rotation)(2:1)

GEAR ASSEMBLY, Pinion/Forward
(Standard Rotation)(2:1)

62 250 ₽
-

43-803616T1 GEAR ASSEMBLY, Pinion/Forward
(Counter Rotation)(1.87:1)

GEAR ASSEMBLY, Pinion/Forward
(Counter Rotation)(1.87:1)

58 670 ₽
-

43-803613T1 GEAR ASSEMBLY, Pinion/Forward
(Counter Rotation)(2:1)

GEAR ASSEMBLY, Pinion/Forward
(Counter Rotation)(2:1)

48 810 ₽
-

27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included

GASKET SET, Engine, Cylinder head o-rings and seal not included

21 370 ₽
