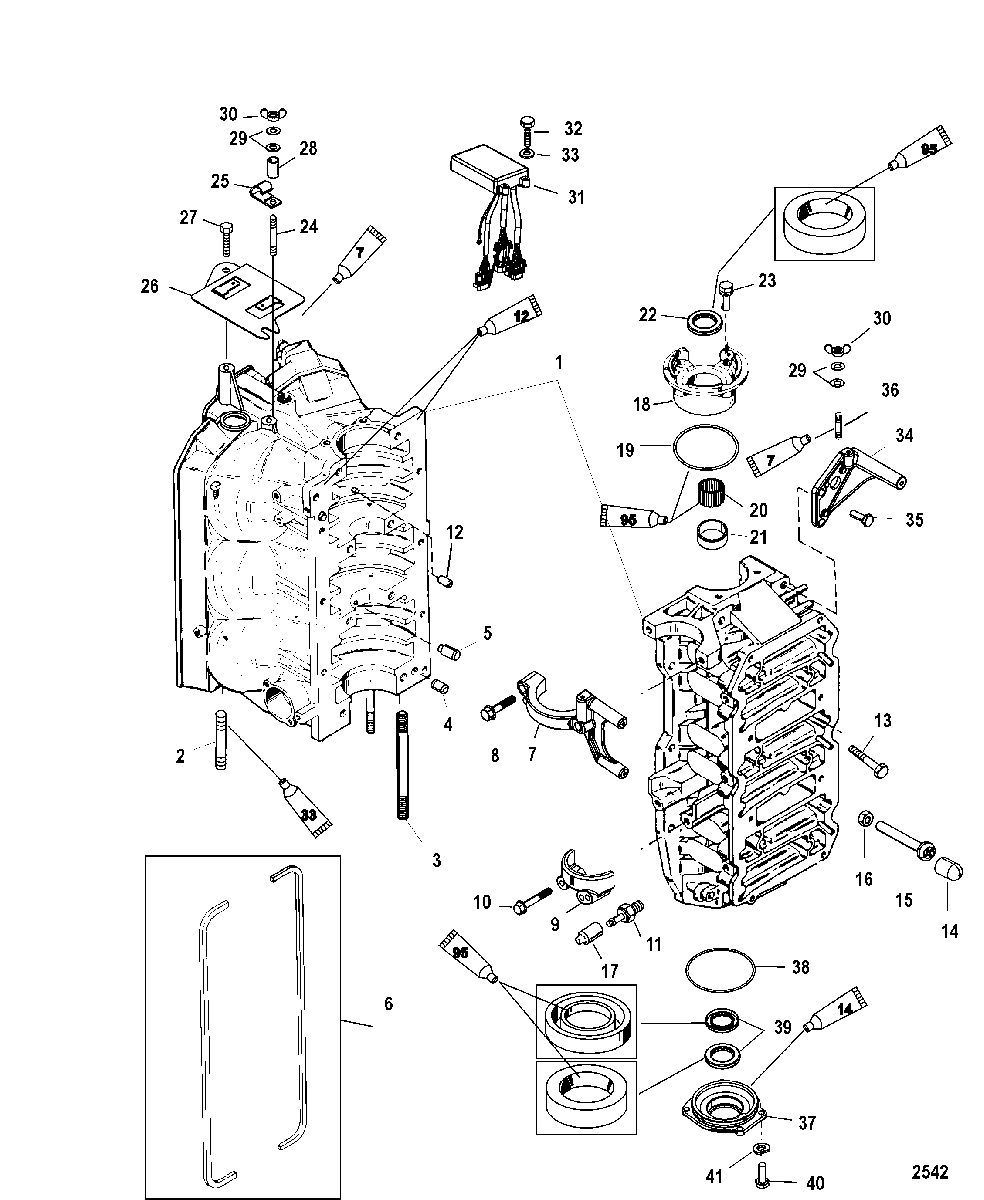

Cylinder Block and End Caps для Mariner - V-140 (INTERNATIONAL) 0T178500 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    884-859211T2 CYLINDER BLOCK
    (135)
    CYLINDER BLOCK
    (135)
  • 1
    884-858257T7 CYLINDER BLOCK ASSEMBLY
    (140/150/XR6/MAG. III )
    CYLINDER BLOCK ASSEMBLY
    (140/150/XR6/MAG. III )
  • 1
    884-858257T9 CYLINDER BLOCK ASSEMBLY
    (200)
    CYLINDER BLOCK ASSEMBLY
    (200)
  • 2
    16-8M0034455 STUD, (1.750 Inches)
    STUD, (1.750 Inches)
  • 3
    16-670654 STUD, (.375 x 5.620) (5-1/2 IN.)
    SN# 0T979999 & Below
    STUD, (.375 x 5.620) (5-1/2 IN.)
    SN# 0T979999 & Below
  • 3
    16-670654 STUD, (.375-16/.375-24 x 5.620)
    (2.375 x 5.62) SN# 0T980000 & Up
    STUD, (.375-16/.375-24 x 5.620)
    (2.375 x 5.62) SN# 0T980000 & Up
  • 3
    16-8M0034454 STUD, (.375-16/.375-24 x 6.870) (6-3/4 IN.)
    STUD, (.375-16/.375-24 x 6.870) (6-3/4 IN.)
  • 4
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 5
    17-8M0036405 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 6
    27-11338 GASKET
    (USE WHERE APPLICABLE)
    GASKET
    (USE WHERE APPLICABLE)
  • 7
    8M0088723 COVER, Starter Motor (UPPER)
    COVER, Starter Motor (UPPER)
  • 8
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 9
    76867 COVER (LOWER)
    COVER (LOWER)
  • 10
    10-828214 SCREW, (.312-18 x 2.00) Hex Flange
    SCREW, (.312-18 x 2.00) Hex Flange
  • 11
    21-8781051 CHECK VALVE
    CHECK VALVE
  • 12
    23-99448 BUSHING
    BUSHING
  • 13
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 13
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 14
    26852 CAP, Nylon
    CAP, Nylon
  • 15
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 16
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 17
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 18
    1159-858521T1 END CAP ASSEMBLY, Upper
    END CAP ASSEMBLY, Upper
  • 19
    25-54029 O-RING, (2.800 x .103)
    O-RING, (2.800 x .103)
  • 20
    31-16756A4 BEARING KIT
    BEARING KIT
  • 21
    NSS NOT SOLD SEPARATE, Race
    NOT SOLD SEPARATE, Race
  • 22
    26-41953 SEAL
    SEAL
  • 23
    10-881190 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 24
    16-15094 STUD, (.190-32 x 1.870)
    STUD, (.190-32 x 1.870)
  • 25
    54-23567 CLIP
    CLIP
  • 26
    857167 BRACKET
    BRACKET
  • 27
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 28
    23-67269 SPACER
    SPACER
  • 29
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    WASHER, (.187 x .500 x .062) Neoprene
  • 30
    11-816874 WING NUT, (#10-32)
    WING NUT, (#10-32)
  • 31
    857185T1 CONTROL MODULE
    CONTROL MODULE
  • 32
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 33
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
    WASHER, (.192 x .375 x .0312) Stainless Steel
  • 34
    422482 BRACKET
    BRACKET
  • 35
    10-49668 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 36
    16-8M0034435 STUD, (#10-32 x 1.00)
    STUD, (#10-32 x 1.00)
  • 37
    1156-7809T1 END CAP ASSEMBLY, Lower
    END CAP ASSEMBLY, Lower
  • 38
    25-62700 O-RING, (3.237 x .103)
    O-RING, (3.237 x .103)
  • 39
    26-41953 SEAL
    SEAL
  • 40
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 41
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • -
    27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included
    GASKET SET, Engine, Cylinder head o-rings and seal not included
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135)
    POWERHEAD ASSEMBLY
    (135)
  • -
    823434R00 POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
    POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
  • -
    813043R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
