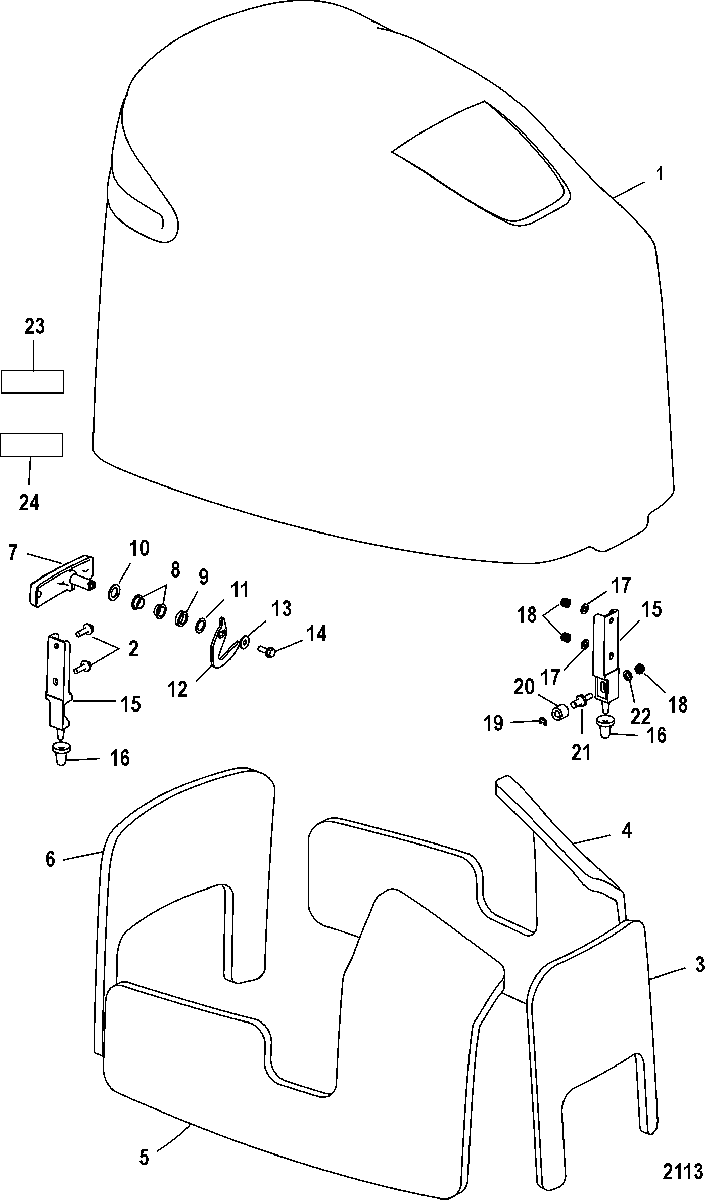

TOP COWL(S/N-0T409000 AND UP) для Mariner - V-135 DFI (2.5L) 0T178500 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    100-883013T1 TOP COWL ASSEMBLY
    (BLACK)
    TOP COWL ASSEMBLY
    (BLACK)
  • 1
    100-883058T1 TOP COWL ASSEMBLY
    (SILVER)
    TOP COWL ASSEMBLY
    (SILVER)
  • 2
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 3
    883019A02 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 4
    NSS NOT SOLD SEPARATE, SOUND BLANKET(PORT)
    NOT SOLD SEPARATE, SOUND BLANKET(PORT)
  • 5
    NSS NOT SOLD SEPARATE, SOUND BLANKET (STARBOARD)
    NOT SOLD SEPARATE, SOUND BLANKET (STARBOARD)
  • 6
    NSS NOT SOLD SEPARATE, SOUND BLANKET (REAR)
    NOT SOLD SEPARATE, SOUND BLANKET (REAR)
  • 7
    831207A16 HANDLE ASSEMBLY, Black
    (BLACK)
    HANDLE ASSEMBLY, Black
    (BLACK)
  • 7
    831207A16 HANDLE ASSEMBLY, Silver
    (SILVER)
    HANDLE ASSEMBLY, Silver
    (SILVER)
  • 8
    23-812707 BUSHING
    BUSHING
  • 9
    23-8312141 SPACER
    SPACER
  • 10
    12-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black
    WASHER, (.520 x .850 x .060) Nylon - Black
  • 11
    13-12134 WASHER, Wave
    WASHER, Wave
  • 12
    8M0001081 CAM, Latch Shaft
    CAM, Latch Shaft
  • 13
    12-4002316 WASHER
    WASHER
  • 14
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 15
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 16
    815477 BUMPER, Latch
    BUMPER, Latch
  • 17
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 18
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 19
    53-8237951 RING, Retaining
    RING, Retaining
  • 20
    815263 ROLLER
    ROLLER
  • 21
    8155381 PIN, Roll
    PIN, Roll
  • 22
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 23
    NSS NOT SOLD SEPARATE, Decal-Counter Rotation
    NOT SOLD SEPARATE, Decal-Counter Rotation
  • 24
    NSS NOT SOLD SEPARATE, Decal Break-In
    NOT SOLD SEPARATE, Decal Break-In
