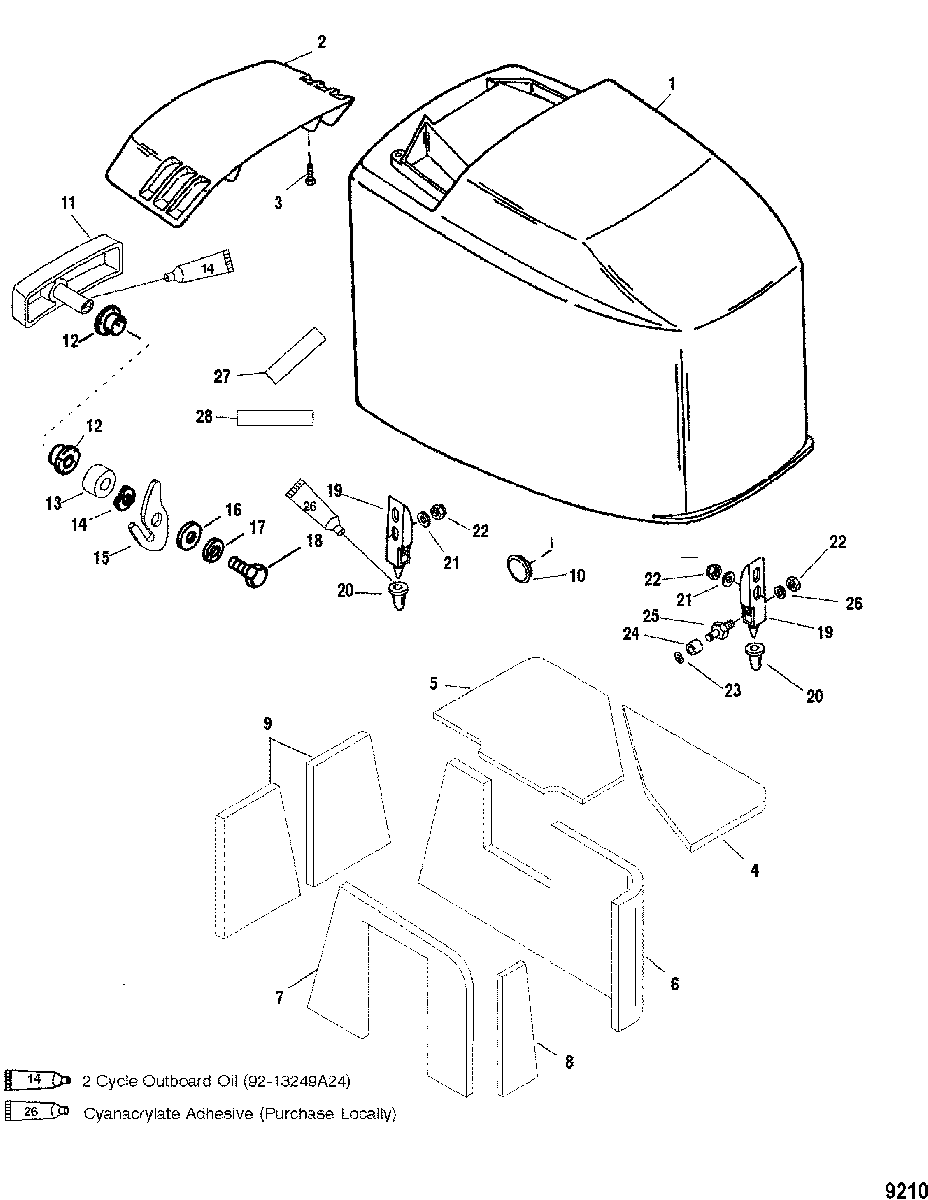

TOP COWL(S/N-0T408999 AND BELOW) для Mariner - V-135 DFI (2.5L) 0T178500 THRU 0T800999
-
№АртикулНазвание
-
14021-852552T3 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
14021-852552T4 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
2821256T03 INLET, Air - Black
(BLACK)INLET, Air - Black
(BLACK) -
2821256T2 INLET, Air - Silver
(SILVER)INLET, Air - Silver
(SILVER) -
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4854607A1 SOUND BLANKET KITSOUND BLANKET KIT
-
5NSS NOT SOLD SEPARATE, SOUND BLANKET-TOP BACKNOT SOLD SEPARATE, SOUND BLANKET-TOP BACK
-
6NSS NOT SOLD SEPARATE, SOUND BLANKET (PORT)NOT SOLD SEPARATE, SOUND BLANKET (PORT)
-
7NSS NOT SOLD SEPARATE, SOUND BLANKET(STARBOARD)NOT SOLD SEPARATE, SOUND BLANKET(STARBOARD)
-
8NSS NOT SOLD SEPARATE, SOUND BLANKET-FRONTNOT SOLD SEPARATE, SOUND BLANKET-FRONT
-
9NSS NOT SOLD SEPARATE, SOUND BLANKET-BACKNOT SOLD SEPARATE, SOUND BLANKET-BACK
-
1019-823865 CAP PLUGCAP PLUG
-
11831207A16 HANDLE ASSEMBLY, Black
(BLACK)HANDLE ASSEMBLY, Black
(BLACK) -
11831207A16 HANDLE ASSEMBLY, Silver
(SILVER)HANDLE ASSEMBLY, Silver
(SILVER) -
1223-812707 BUSHINGBUSHING
-
1323-831214 SPACERSPACER
-
1413-12134 WASHER, WaveWASHER, Wave
-
158M0001081 CAM, Latch ShaftCAM, Latch Shaft
-
1612-4002316 WASHERWASHER
-
17NSS NOT SOLD SEPARATE, WASHER
(Not sold with this model)NOT SOLD SEPARATE, WASHER
(Not sold with this model) -
1810-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
198M0036792 BRACKET, FrontBRACKET, Front
-
20815477 BUMPER, LatchBUMPER, Latch
-
2112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2211-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2353-8237951 RING, RetainingRING, Retaining
-
24815263 ROLLERROLLER
-
258155381 PIN, RollPIN, Roll
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
27NSS NOT SOLD SEPARATE, DECAL-COUNTER ROTATION
(LEFT HAND)NOT SOLD SEPARATE, DECAL-COUNTER ROTATION
(LEFT HAND) -
27NSS NOT SOLD SEPARATE, DECAL-COUNTER ROTATION
(RIGHT HAND)NOT SOLD SEPARATE, DECAL-COUNTER ROTATION
(RIGHT HAND) -
28NSS NOT SOLD SEPARATE, DECAL-BREAK INNOT SOLD SEPARATE, DECAL-BREAK IN
