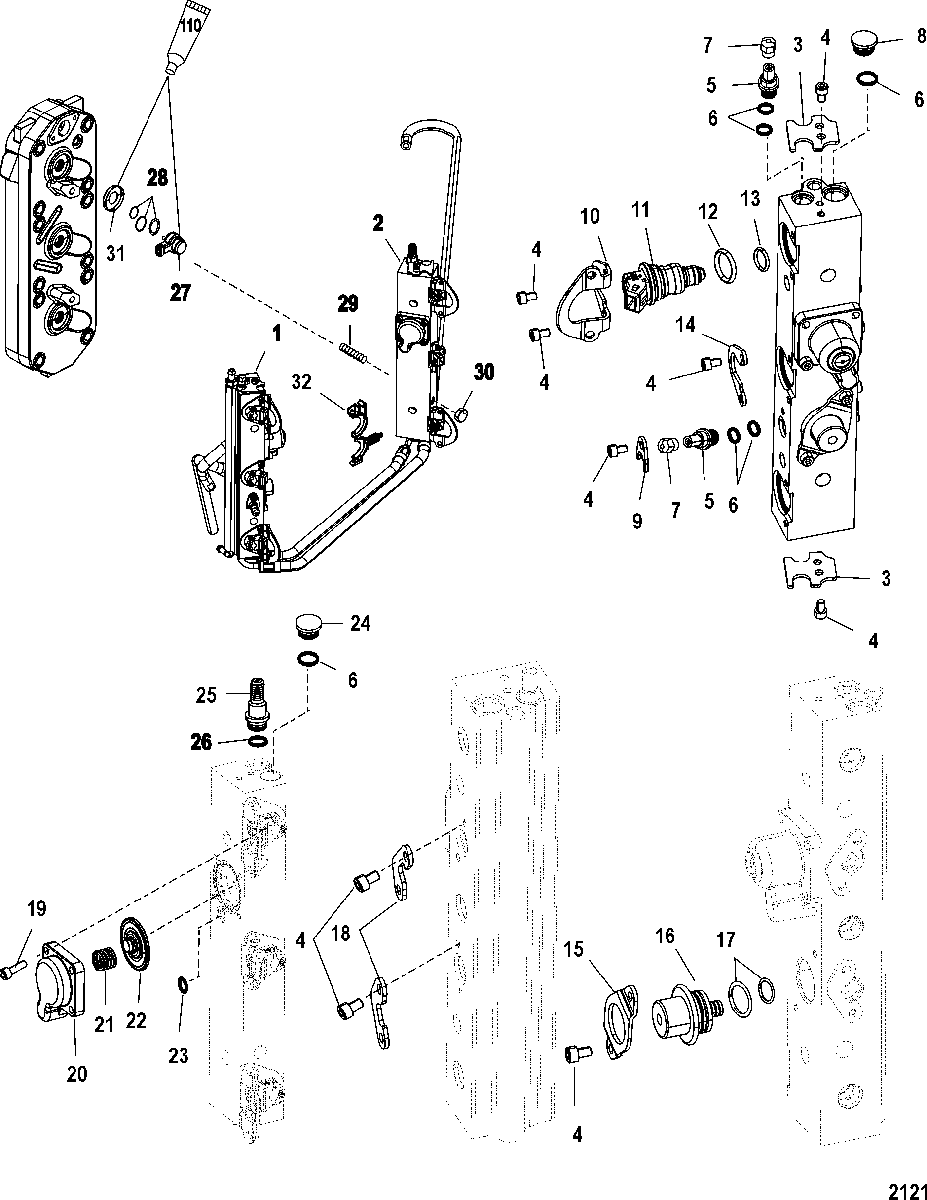

FUEL RAILS для Mariner - V-135 DFI (2.5L) 0T178500 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    8M0135401 FUEL RAIL
    (PORT)(W/O FUEL INJECTORS)
    FUEL RAIL
    (PORT)(W/O FUEL INJECTORS)
  • 2
    8M0135401 FUEL RAIL ASSEMBLY
    (STARBOARD)(W/O FUEL INJECTORS)
    FUEL RAIL ASSEMBLY
    (STARBOARD)(W/O FUEL INJECTORS)
  • 3
    54-804830 CLAMP
    CLAMP
  • 4
    10-8M0041100 SCREW PACKAGE, (M5 x 8) (2 Per)
    SCREW PACKAGE, (M5 x 8) (2 Per)
  • 5
    804837 VALVE ASSEMBLY, (.5 Inch Diameter) (Long side of rail)
    VALVE ASSEMBLY, (.5 Inch Diameter) (Long side of rail)
  • 5
    8M0047053 VALVE KIT, Fuel (Short side of rail)
    VALVE KIT, Fuel (Short side of rail)
  • 6
    25-804840 O-RING KIT
    O-RING KIT
  • 7
    19-8M0046566 CAP
    CAP
  • 8
    19-804835 PLUG
    PLUG
  • 9
    8M0041097 CLAMP
    CLAMP
  • 10
    54-8048311 CLAMP
    CLAMP
  • 11
    804841 INJECTOR
    INJECTOR
  • 12
    25-804530 O-RING KIT
    O-RING KIT
  • 13
    25-804529 O-RING KIT
    O-RING KIT
  • 14
    804522 CLAMP
    CLAMP
  • 15
    54-880808 CLAMP
    CLAMP
  • 16
    880807T REGULATOR, Air
    (PORT)
    REGULATOR, Air
    (PORT)
  • 17
    25-880809 O-RING KIT
    O-RING KIT
  • 18
    54-804832 CLAMP
    CLAMP
  • 19
    804526 SCREW PACKAGE, (M5 x 16) (2 Per)
    SCREW PACKAGE, (M5 x 16) (2 Per)
  • 20
    804535001 COVER
    COVER
  • 21
    24-804534 SPRING
    SPRING
  • 22
    804533 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 23
    25-804536 O-RING
    O-RING
  • 24
    19-804834 PLUG
    PLUG
  • 25
    22-804836 FITTING
    FITTING
  • 26
    804532 O-RING KIT (16 per Kit)
    O-RING KIT (16 per Kit)
  • 27
    8M6001743 INJECTOR
    SN# 0T598999 & Below
    INJECTOR
    SN# 0T598999 & Below
  • 27
    8M6001743 INJECTOR, Air
    (SALTWATER) SN# 0T598999 & Below
    INJECTOR, Air
    (SALTWATER) SN# 0T598999 & Below
  • 27
    8M6001743 INJECTOR KIT, Air
    (ALL) SN# 0T599000 & Up
    INJECTOR KIT, Air
    (ALL) SN# 0T599000 & Up
  • 28
    26-804875 SEAL KIT, Direct Injector
    SEAL KIT, Direct Injector
  • 29
    16-8M0063255 STUD, (M10 x 91)
    STUD, (M10 x 91)
  • 30
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 31
    12-828694A1 WASHER ASSEMBLY, Cupped
    WASHER ASSEMBLY, Cupped
  • 32
    54-859376 CLIP
    CLIP
  • -
    879808T07 POWERHEAD ASSEMBLY
    (135/150)
    POWERHEAD ASSEMBLY
    (135/150)
  • -
    879809T07 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
