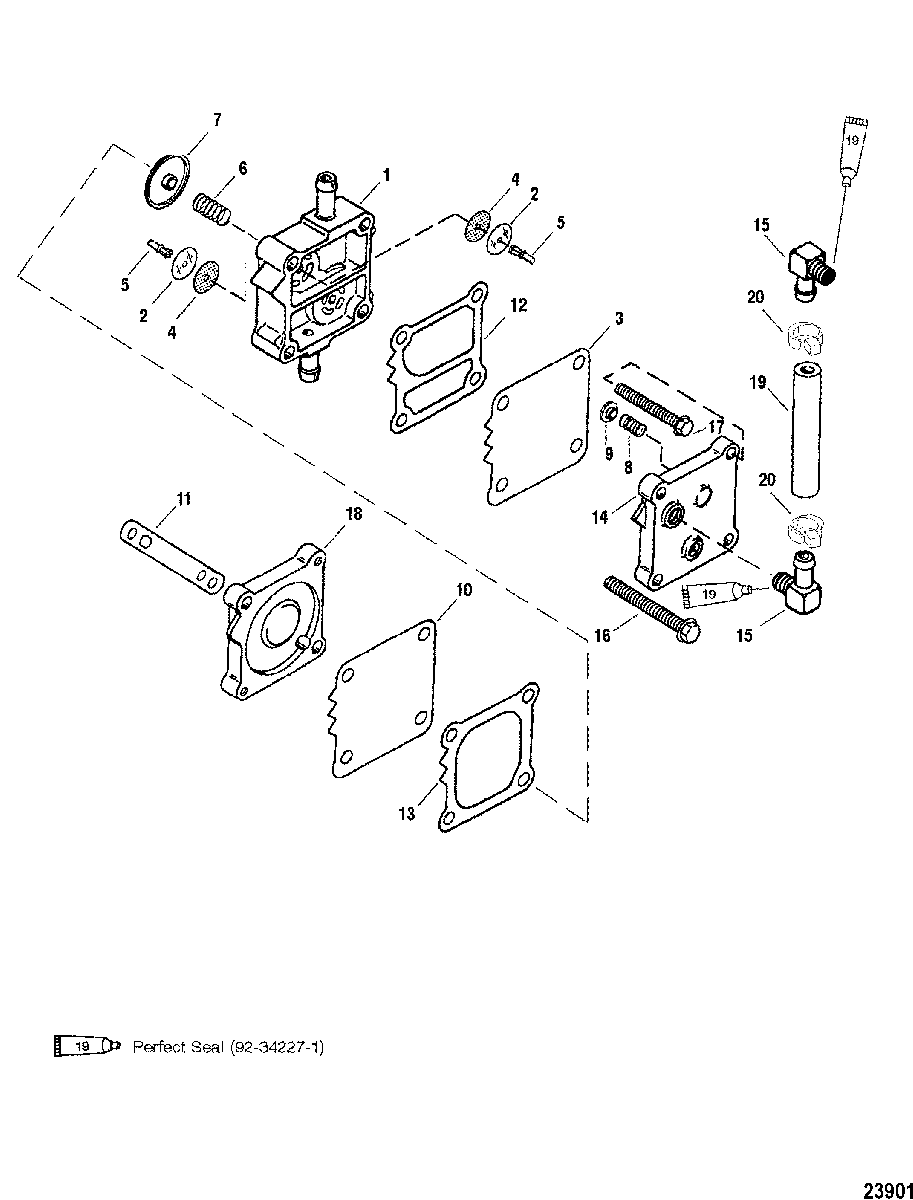

FUEL PUMP для Mariner - MAGNUM III 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • -
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 2
    21-857005A1 DIAPHAGM KIT
    DIAPHAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Check Valve-Rubber
    NOT SOLD SEPARATE, Check Valve-Rubber
  • 5
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 6
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 7
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 8
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 9
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 10
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 11
    27-987691 GASKET
    GASKET
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 13
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 14
    987752 PLATE
    PLATE
  • 15
    22-996642 ELBOW
    ELBOW
  • 16
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 17
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 18
    144303 BASE
    BASE
  • 19
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (6 IN.)
    TUBING, (.312) (70.00 Inches Bulk) (6 IN.)
  • 20
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135)
    POWERHEAD ASSEMBLY
    (135)
  • -
    823434R97 POWERHEAD ASSEMBLY
    (150/XR6/MAGNUM III)
    POWERHEAD ASSEMBLY
    (150/XR6/MAGNUM III)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
  • -
    813043R97 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
