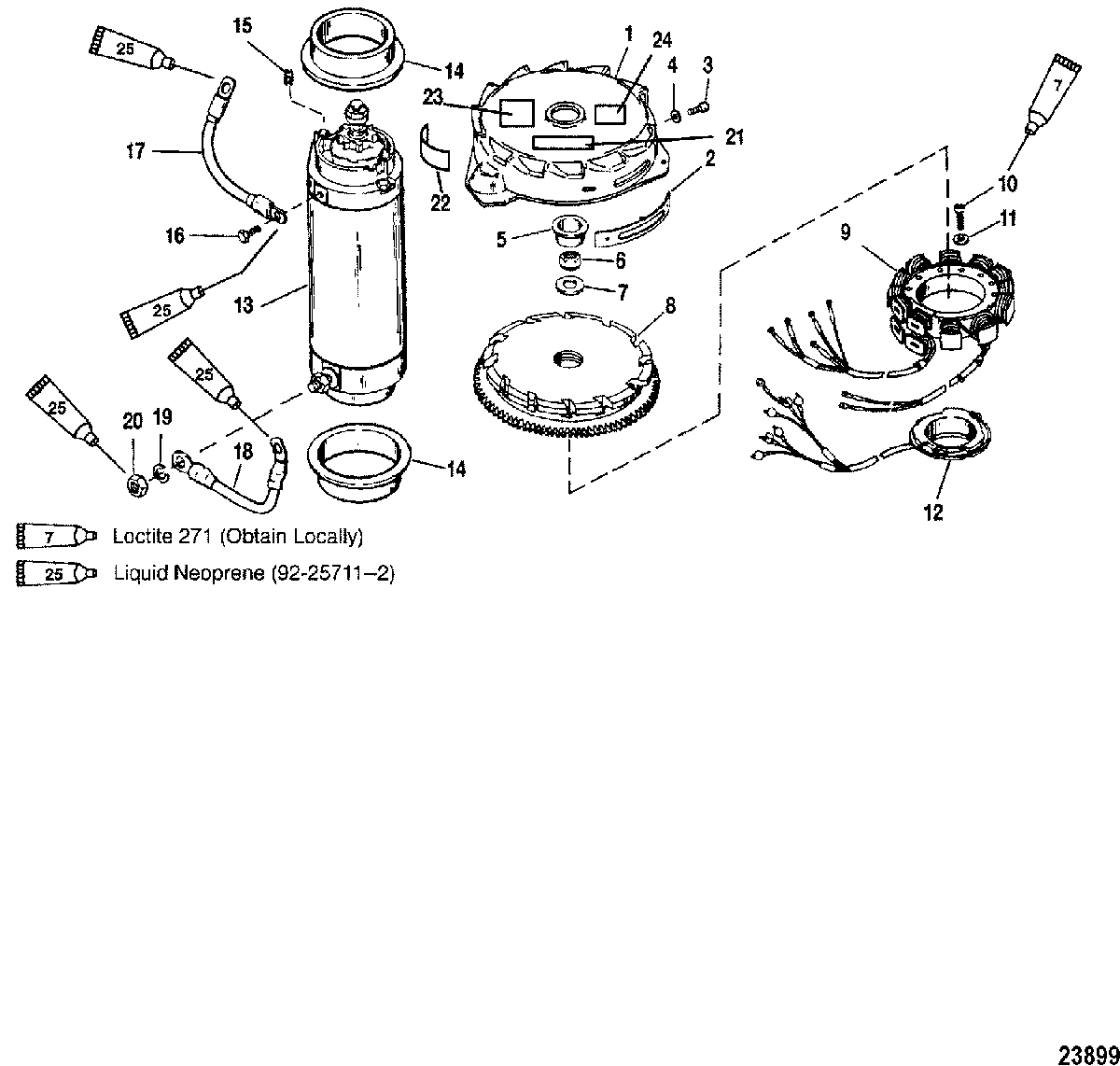

FLYWHEEL/STARTER MOTOR для Mariner - MAGNUM III 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    18896A1 COVER KIT
    COVER KIT
  • 2
    79022 MARKER
    MARKER
  • 3
    10-37572 SCREW, (.190-32 x .380)
    SCREW, (.190-32 x .380)
  • 4
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 5
    19-45907 PLUG, Yellow
    PLUG, Yellow
  • 6
    11-52901 NUT, (.625-18)
    NUT, (.625-18)
  • 7
    12-33001 WASHER, (.641 x 1.250 x .190)
    WASHER, (.641 x 1.250 x .190)
  • 8
    271-859238T16 FLYWHEEL
    FLYWHEEL
  • 9
    398-9610A19 STATOR
    STATOR
  • 10
    10-90045 SCREW, (#10-32 x 1.375)
    SCREW, (#10-32 x 1.375)
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 12
    96455A9 PLATE ASSEMBLY, Trigger
    PLATE ASSEMBLY, Trigger
  • 13
    50-893893 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 14
    23-8M0034918 COLLAR
    COLLAR
  • 15
    8M0043376 STOP, Rubber
    STOP, Rubber
  • 16
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 17
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black
    CABLE ASSEMBLY, (6.00 Inches) Black
  • 18
    84-93388A14 CABLE ASSEMBLY (BLACK)
    CABLE ASSEMBLY (BLACK)
  • 19
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 20
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 21
    NSS NOT SOLD SEPARATE, Decal-Timing
    NOT SOLD SEPARATE, Decal-Timing
  • 22
    NSS NOT SOLD SEPARATE, Decal-In Gear Idle
    NOT SOLD SEPARATE, Decal-In Gear Idle
  • 23
    37-8272822 DECAL, Warning, High Voltage
    DECAL, Warning, High Voltage
  • 24
    37-881865 DECAL, Caution, Start In Gear
    DECAL, Caution, Start In Gear
