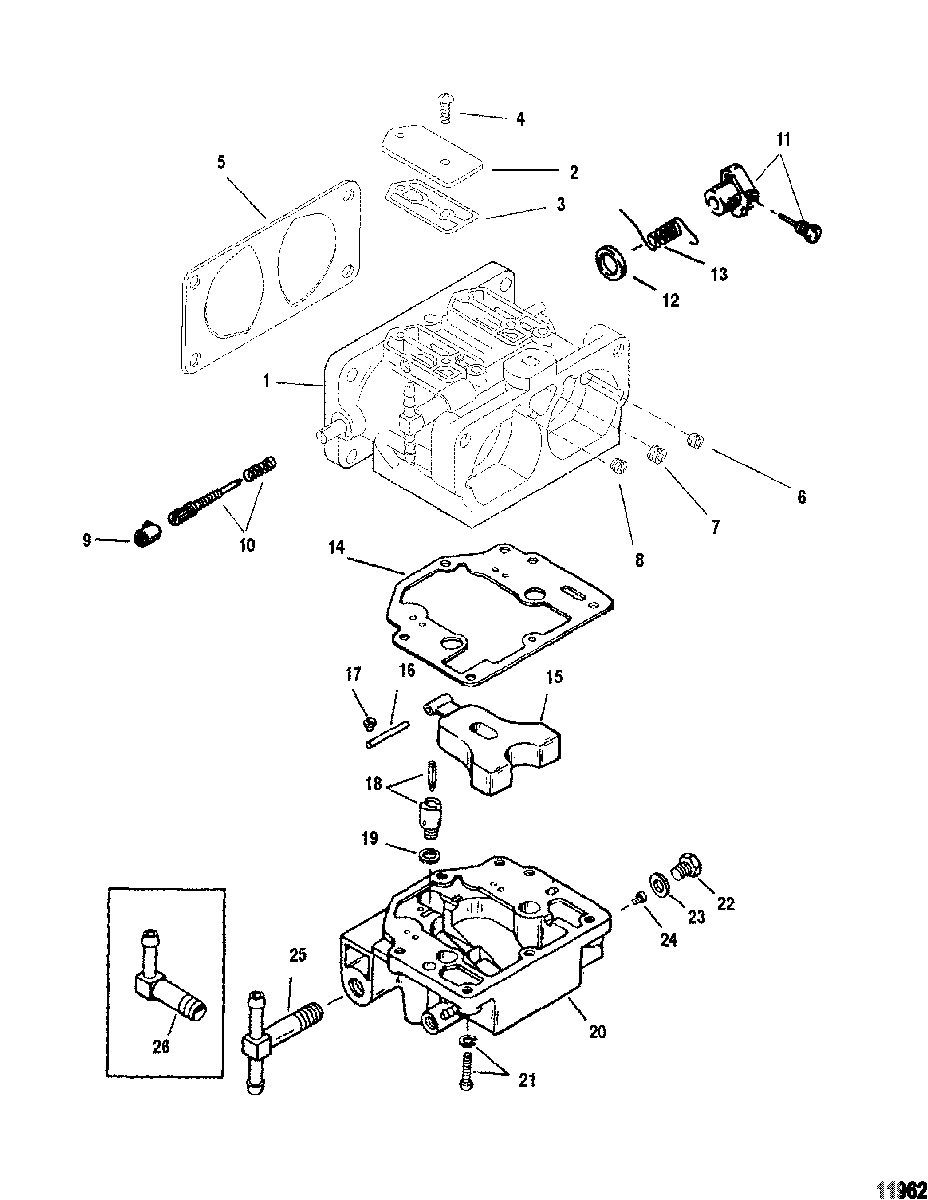

CARBURETOR для Mariner - MAGNUM III 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    3326-828272T37 CARBURETOR, Top
    135 - WMV-1A
    CARBURETOR, Top
    135 - WMV-1A
  • 1
    3326-828272T38 CARBURETOR, Center
    135 - WMV-1A
    CARBURETOR, Center
    135 - WMV-1A
  • 1
    3326-828272T39 CARBURETOR, Bottom
    135 - WMV-1A
    CARBURETOR, Bottom
    135 - WMV-1A
  • 1
    3326-828272T43 CARBURETOR, Top
    150/XR6/MAGNUM III - WMV-3A
    CARBURETOR, Top
    150/XR6/MAGNUM III - WMV-3A
  • 1
    3326-828272T44 CARBURETOR, Center
    150/XR6/MAGNUM III - WMV-3A
    CARBURETOR, Center
    150/XR6/MAGNUM III - WMV-3A
  • 1
    3326-828272A45 CARBURETOR, Bottom
    150/XR6/MAGNUM III - WMV-3A
    CARBURETOR, Bottom
    150/XR6/MAGNUM III - WMV-3A
  • 1
    3326-828272T46 CARBURETOR, Top
    175 - WMV-4A
    CARBURETOR, Top
    175 - WMV-4A
  • 1
    3326-828272T47 CARBURETOR, Center
    175 - WMV-4A
    CARBURETOR, Center
    175 - WMV-4A
  • 1
    3326-828272T48 CARBURETOR, Bottom
    175 - WMV-4A
    CARBURETOR, Bottom
    175 - WMV-4A
  • 1
    3326-828272T49 CARBURETOR, Top
    200 - WMV-5A
    CARBURETOR, Top
    200 - WMV-5A
  • 1
    3326-828272T50 CARBURETOR, Center
    200 - WMV-5A
    CARBURETOR, Center
    200 - WMV-5A
  • 1
    3326-828272T51 CARBURETOR, Bottom
    200 - WMV-5A
    CARBURETOR, Bottom
    200 - WMV-5A
  • 2
    1395-809743 COVER
    COVER
  • 3
    1395-809758 GASKET
    GASKET
  • 4
    1395-8087391 SCREW
    SCREW
  • 5
    27-828292 GASKET
    GASKET
  • 6
    1399-3026 JET, (.036)
    (TOP/CENTER)(135) PORT
    JET, (.036)
    (TOP/CENTER)(135) PORT
  • 6
    1399-7570 JET, .040
    (BOTTOM)(135) PORT
    JET, .040
    (BOTTOM)(135) PORT
  • 6
    815633042 JET, Idle Air Vent
    (.042-TOP/CENTER)(150/XR6/MAGNUM III) PORT
    JET, Idle Air Vent
    (.042-TOP/CENTER)(150/XR6/MAGNUM III) PORT
  • 6
    815633048 JET, (.048)
    (BOTTOM)(150/XR6/MAGNUM III) PORT
    JET, (.048)
    (BOTTOM)(150/XR6/MAGNUM III) PORT
  • 6
    810741 JET, (.030)
    (TOP/CENTER)(175) PORT
    JET, (.030)
    (TOP/CENTER)(175) PORT
  • 6
    815633038 JET, (.038)
    (BOTTOM)(175) PORT
    JET, (.038)
    (BOTTOM)(175) PORT
  • 6
    815633052 JET, (.052)
    (TOP)(200) PORT
    JET, (.052)
    (TOP)(200) PORT
  • 6
    815633028 JET, (.028)
    (CENTER)(200) PORT
    JET, (.028)
    (CENTER)(200) PORT
  • 6
    1399-3252 JET, (.032)
    (BOTTOM)(200) PORT
    JET, (.032)
    (BOTTOM)(200) PORT
  • 7
    1395-5815 JET, (.086)
    (135/175)
    JET, (.086)
    (135/175)
  • 7
    1399-3518 JET, (.082)
    (150/XR6/MAGNUM III)
    JET, (.082)
    (150/XR6/MAGNUM III)
  • 7
    1399-6249 JET, Main (.096)
    (200)
    JET, Main (.096)
    (200)
  • 8
    1399-3026 JET, (.036)
    (135) STARBOARD
    JET, (.036)
    (135) STARBOARD
  • 8
    810742 JET, (.044)
    (150/XR6/MAGNUM III) STARBOARD
    JET, (.044)
    (150/XR6/MAGNUM III) STARBOARD
  • 8
    810741 JET, (.030)
    (175) STARBOARD
    JET, (.030)
    (175) STARBOARD
  • 8
    815633052 JET, (.052)
    (TOP)(200) STARBOARD
    JET, (.052)
    (TOP)(200) STARBOARD
  • 8
    815633028 JET, (.028)
    (CENTER/BOTTOM)(200) STARBOARD
    JET, (.028)
    (CENTER/BOTTOM)(200) STARBOARD
  • 9
    810779 CAP
    CAP
  • 10
    NSS NOT SOLD SEPARATE, Idle Mixture Screw/Spring
    NOT SOLD SEPARATE, Idle Mixture Screw/Spring
  • 11
    1395-8113523 LEVER KIT
    LEVER KIT
  • 12
    1395-6031 SPACER
    SPACER
  • 13
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 14
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 15
    810738 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 16
    F10064 SHAFT
    SHAFT
  • 17
    1395-5902 SCREW, (#6-32 x .187)
    SCREW, (#6-32 x .187)
  • 18
    1395-8116901 VALVE SEAT KIT
    VALVE SEAT KIT
  • 19
    NSS NOT SOLD SEPARATE, Gasket-Valve Seat
    NOT SOLD SEPARATE, Gasket-Valve Seat
  • 20
    1395-8236231 BOWL, Fuel (TOP)
    BOWL, Fuel (TOP)
  • 20
    1395-8236241 BOWL, Fuel (CENTER/BOTTOM)
    BOWL, Fuel (CENTER/BOTTOM)
  • 21
    1395-808612 SCREW AND WASHER, (#8-32 x .750)
    SCREW AND WASHER, (#8-32 x .750)
  • 22
    1395-811694 PLUG KIT
    PLUG KIT
  • 23
    1395-802731 SEAL (CONSISTS OF 4 GASKETS)
    SEAL (CONSISTS OF 4 GASKETS)
  • 24
    1395-6207 JET, (.072)
    (135)
    JET, (.072)
    (135)
  • 24
    1399-3794 JET, (.074)
    (150/XR6/MAGNUM III)
    JET, (.074)
    (150/XR6/MAGNUM III)
  • 24
    1395-6680 JET, (.078)
    (175)
    JET, (.078)
    (175)
  • 24
    1395-6201 JET, (.080)
    (200)
    JET, (.080)
    (200)
  • 24
    1399-3518 JET, (.082)
    (200-TOP)
    JET, (.082)
    (200-TOP)
  • 25
    1395-7900 TEE FITTING (TOP/CENTER)
    TEE FITTING (TOP/CENTER)
  • 26
    1395-7901 ELBOW (BOTTOM)
    ELBOW (BOTTOM)
  • -
    8107493 GASKET SET, Carburetor
    GASKET SET, Carburetor
  • -
    1395-8116913 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
