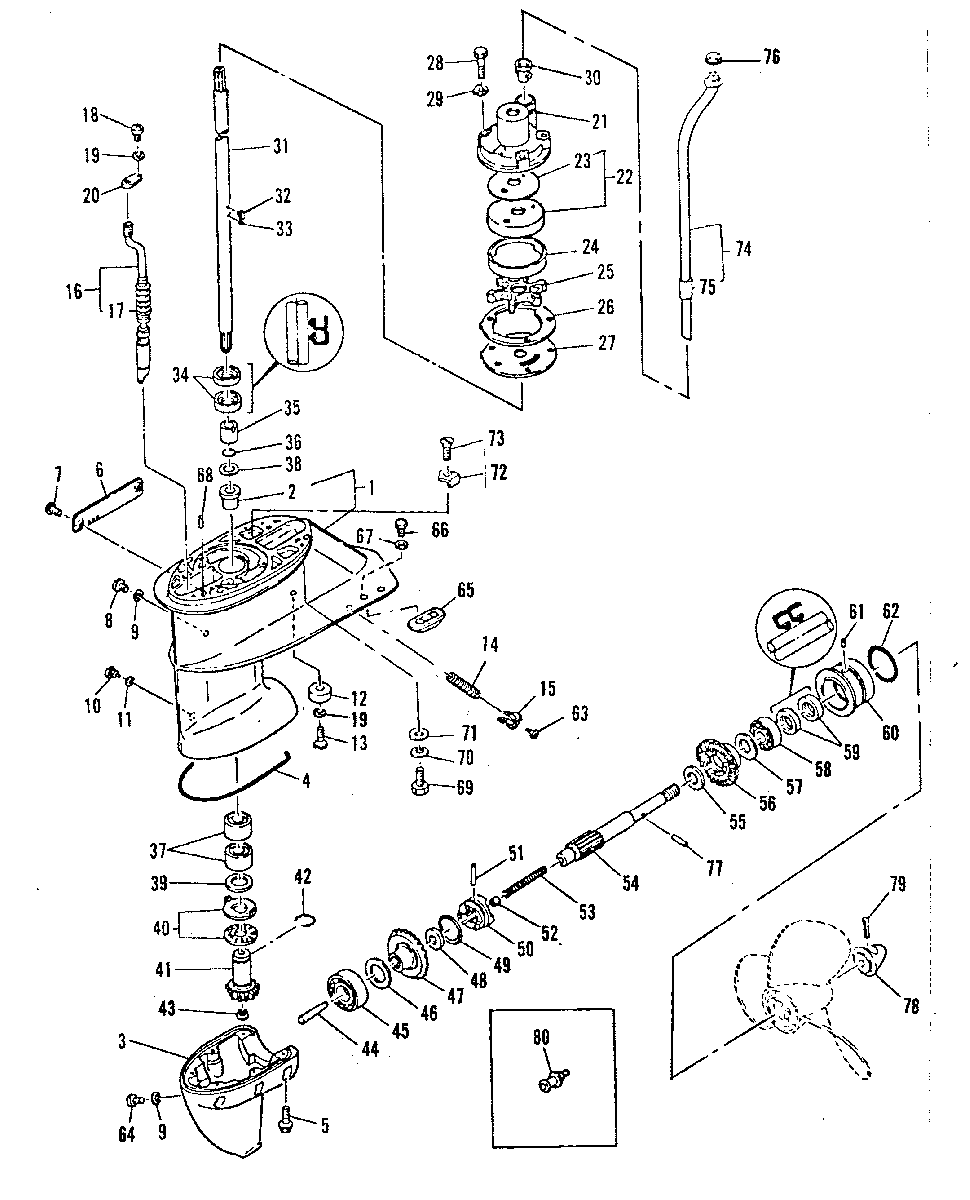

GEAR HOUSING ASSEMBLY для Mariner - K25 6A4-300101 AND UP (ML)

  • №
    Артикул
    Название
  • 1651-9814M GEAR HOUSING (SHORT - M-001182 ML-307013 & ABOVE)
    GEAR HOUSING (SHORT - M-001182 ML-307013 & ABOVE)
  • 1651-8433M GEAR HOUSING (SHORT-M-001181 ML-307012 & BELOW)
    GEAR HOUSING (SHORT-M-001181 ML-307012 & BELOW)
  • 1651-9815M GEAR HOUSING (LONG-M-001182 ML-307013 & ABOVE)
    GEAR HOUSING (LONG-M-001182 ML-307013 & ABOVE)
  • 1651-8434M GEAR HOUSING (LONG-M-001181 ML-307012 & BELOW)
    GEAR HOUSING (LONG-M-001181 ML-307012 & BELOW)
  • 1
    1651-9805M GEAR HOUSING (M-001374 ML-309362 AND ABOVE)
    GEAR HOUSING (M-001374 ML-309362 AND ABOVE)
  • 1
    1651-9243M GEAR HOUSING (M-001245-001373 ML-307394-309361)
    GEAR HOUSING (M-001245-001373 ML-307394-309361)
  • 1
    1651-6798M GEAR HOUSING (M-001244 ML-307393 AND BELOW)
    GEAR HOUSING (M-001244 ML-307393 AND BELOW)
  • 2
    23-80667M BUSHING
    BUSHING
  • 3
    1651-6884M GEARHOUSING (LOWER)
    GEARHOUSING (LOWER)
  • 4
    83391M SEAL
    SEAL
  • 5
    10-82476M BOLT
    BOLT
  • 6
    95530M COVER
    COVER
  • 7
    10-95467M SCREW
    SCREW
  • 8
    22-81924M PLUG
    PLUG
  • 9
    27-81987 GASKET
    GASKET
  • 10
    10-81752M SCREW
    SCREW
  • 11
    27-95610 GASKET
    GASKET
  • 12
    95609M ANODE (M-001471 ML-310224 AND ABOVE)
    ANODE (M-001471 ML-310224 AND ABOVE)
  • 12
    95609M ANODE (M-001245-001470 ML-307394-310223)
    ANODE (M-001245-001470 ML-307394-310223)
  • 12
    43107M ANODE (M-001244 ML-307393 AND BELOW)
    ANODE (M-001244 ML-307393 AND BELOW)
  • 13
    10-826957M SCREW (M-001245 ML-307394 AND ABOVE)
    SCREW (M-001245 ML-307394 AND ABOVE)
  • 13
    10-82791M SCREW (M-001244 ML-307393 AND BELOW)
    SCREW (M-001244 ML-307393 AND BELOW)
  • 14
    35-95531M COVER M-001182 ML-307013 AND ABOVE
    COVER M-001182 ML-307013 AND ABOVE
  • 15
    22-95211M PLUG
    PLUG
  • 14
    35-80246M COVER M-001181 ML-307012 AND BELOW
    COVER M-001181 ML-307012 AND BELOW
  • 15
    22-81920M PLUG
    PLUG
  • 16
    83157M SHIFT CAM (SHORT SHAFT)
    SHIFT CAM (SHORT SHAFT)
  • 16
    81154M SHIFT CAM (LONG-M-001245 ML-307394 & BELOW)
    SHIFT CAM (LONG-M-001245 ML-307394 & BELOW)
  • 16
    83158M SHIFT CAM (LONG-M-001244 ML-307393 & BELOW)
    SHIFT CAM (LONG-M-001244 ML-307393 & BELOW)
  • 16
    83798M SHIFT CAM ASSEMBLY (SUPER LONG SHAFT)
    SHIFT CAM ASSEMBLY (SUPER LONG SHAFT)
  • 17
    82881M BOOT
    BOOT
  • 18
    10-96671M SCREW
    SCREW
  • 19
    12-82214M WASHER
    WASHER
  • 20
    82882M PLATE
    PLATE
  • 21
    46-95532M HOUSING
    HOUSING
  • 22
    97056M INNER PLATE (CHROME)
    INNER PLATE (CHROME)
  • 23
    27-95653M SEAL
    SEAL
  • -
    1651-9814M GEAR HOUSING (SHORT-M-001182 ML-307013 & ABOVE)
    GEAR HOUSING (SHORT-M-001182 ML-307013 & ABOVE)
  • -
    1651-8433M GEAR HOUSING (SHORT-M-001181 ML-307012 & BELOW)
    GEAR HOUSING (SHORT-M-001181 ML-307012 & BELOW)
  • -
    1651-9815M GEAR HOUSING (LONG-M-001182 ML-307013 & ABOVE)
    GEAR HOUSING (LONG-M-001182 ML-307013 & ABOVE)
  • -
    1651-8434M GEAR HOUSING (LONG-M-001181 ML-307012 & BELOW)
    GEAR HOUSING (LONG-M-001181 ML-307012 & BELOW)
  • 24
    84825M INSERT (CHROME)
    INSERT (CHROME)
  • 25
    47-95533M IMPELLER
    IMPELLER
  • 26
    27-97052M GASKET
    GASKET
  • 27
    97057M OUTER PLATE (CHROME)
    OUTER PLATE (CHROME)
  • 28
    10-95534M BOLT (M-001182 ML-307013 AND ABOVE)
    BOLT (M-001182 ML-307013 AND ABOVE)
  • 28
    10-82405M BOLT (M-000731-001181 ML-303061-307012)
    BOLT (M-000731-001181 ML-303061-307012)
  • 28
    10-804124 BOLT (M-000730 ML-303060 AND BELOW)
    BOLT (M-000730 ML-303060 AND BELOW)
  • 29
    12-84791M WASHER
    WASHER
  • 30
    26-80239M SEAL
    SEAL
  • 31
    45-81165M DRIVE SHAFT (SHORT SHAFT)
    DRIVE SHAFT (SHORT SHAFT)
  • 31
    45-81166M DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 31
    45-83799M DRIVE SHAFT (SUPER LONG SHAFT)
    DRIVE SHAFT (SUPER LONG SHAFT)
  • 32
    17-81159M KEY
    KEY
  • 33
    17-81891M KEY
    KEY
  • 34
    26-82229M OIL SEAL
    OIL SEAL
  • 35
    23-80247M BUSHING
    BUSHING
  • 36
    25-82267M O-RING
    O-RING
  • 37
    31-82318M BEARING
    BEARING
  • 38
    12-80255M WASHER (M-001181 ML-307012 AND BELOW)
    WASHER (M-001181 ML-307012 AND BELOW)
  • 39
    12-80248M WASHER (.03MM)
    WASHER (.03MM)
  • 39
    12-80249M WASHER (0.4MM)
    WASHER (0.4MM)
  • 40
    31-82322M BEARING
    BEARING
  • 41
    43-97146T PINION GEAR
    PINION GEAR
  • 42
    53-97147M SNAP RING
    SNAP RING
  • 43
    53-82323M SNAP RING
    SNAP RING
  • 44
    80680M PLUNGER
    PLUNGER
  • 45
    30-97054M BEARING
    BEARING
  • 46
    15-80671M SHIM (0.2MM)
    SHIM (0.2MM)
  • 46
    15-80672M SHIM (0.3MM)
    SHIM (0.3MM)
  • 47
    43-80670M FORWARD GEAR
    FORWARD GEAR
  • 48
    12-81822M WASHER
    WASHER
  • 49
    53-80678M RING
    RING
  • 50
    52-81167M CLUTCH
    CLUTCH
  • 51
    17-81899M PIN
    PIN
  • 52
    80679M SHIFT SLIDE
    SHIFT SLIDE
  • 53
    24-82078M SPRING
    SPRING
  • 54
    44-80677M PROPELLER SHAFT
    PROPELLER SHAFT
  • 55
    12-81828M WASHER
    WASHER
  • 56
    43-80673M REVERSE GEAR
    REVERSE GEAR
  • -
    1651-9814M GEAR HOUSING (SHORT-M-001182 ML-307013 & ABOVE)
    GEAR HOUSING (SHORT-M-001182 ML-307013 & ABOVE)
  • -
    1651-8433M GEAR HOUSING (SHORT-M-001181 ML-307012 & BELOW)
    GEAR HOUSING (SHORT-M-001181 ML-307012 & BELOW)
  • -
    1651-9815M GEAR HOUSING (LONG-M-001182 ML-307013 & ABOVE)
    GEAR HOUSING (LONG-M-001182 ML-307013 & ABOVE)
  • -
    1651-8434M GEAR HOUSING (LONG-M-001181 ML-307012 & BELOW)
    GEAR HOUSING (LONG-M-001181 ML-307012 & BELOW)
  • 57
    15-80674M SHIM (1.3MM)
    SHIM (1.3MM)
  • 57
    15-80675M SHIM (1.5MM)
    SHIM (1.5MM)
  • 57
    15-80676M SHIM (1.7MM)
    SHIM (1.7MM)
  • 58
    30-811014M BEARING (M-000147 ML-310224 AND ABOVE)
    BEARING (M-000147 ML-310224 AND ABOVE)
  • 58
    30-82298M BEARING (M-000146 ML-310223 AND BELOW)
    BEARING (M-000146 ML-310223 AND BELOW)
  • 59
    26-8540171 OIL SEAL
    OIL SEAL
  • 60
    95537M CAP
    CAP
  • 61
    17-82356M DOWEL PIN
    DOWEL PIN
  • 62
    25-82278M O-RING
    O-RING
  • 63
    10-95566M SCREW M-=001182 ML-307013 AND ABOVE
    SCREW M-=001182 ML-307013 AND ABOVE
  • 64
    22-95632010 PLUG
    PLUG
  • 65
    97-18852M ANODE M-001374 ML-309362 AND ABOVE
    ANODE M-001374 ML-309362 AND ABOVE
  • 66
    10-826957M BOLT
    BOLT
  • 67
    12-82214M WASHER
    WASHER
  • 68
    17-82364M PIN
    PIN
  • 69
    10-95416M BOLT
    BOLT
  • 70
    13-82215M LOCKWASHER
    LOCKWASHER
  • 71
    12-82217M WASHER
    WASHER
  • 72
    84506M ANODE
    ANODE
  • 73
    10-84507M SCREW
    SCREW
  • 74
    32-82635M WATER TUBE (SHORT SHAFT)
    WATER TUBE (SHORT SHAFT)
  • 74
    32-81161M WATER TUBE (LONG SHFT)
    WATER TUBE (LONG SHFT)
  • 74
    32-83800M WATER TUBE (SUPER LONG SHAFT)
    WATER TUBE (SUPER LONG SHAFT)
  • 75
    23-82022M SLEEVE
    SLEEVE
  • 76
    26-80653M SEAL
    SEAL
  • 77
    17-81900M PIN
    PIN
  • 78
    859946 PROPELLER NUT
    PROPELLER NUT
  • 79
    18-82132M COTTER PIN
    COTTER PIN
  • 80
    22-8M0121335 FLUSH PLUG (M-001245 ML-307394 AND ABOVE)
    FLUSH PLUG (M-001245 ML-307394 AND ABOVE)
  • 80
    22-8M0121335 FLUSH PLUG (M-001244 ML-307393 AND BELOW)
    FLUSH PLUG (M-001244 ML-307393 AND BELOW)
