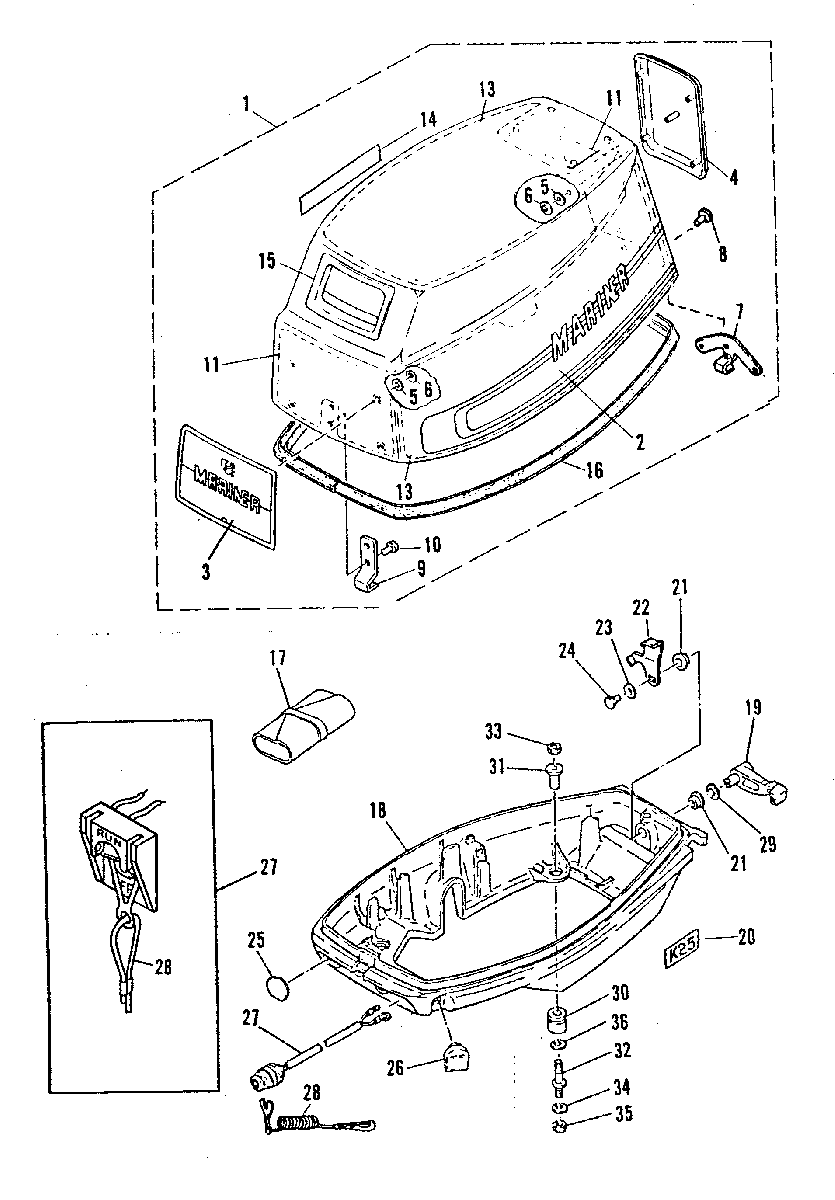

COWLING для Mariner - K25 6A4-300101 AND UP (ML)

  • №
    Артикул
    Название
  • 1
    2168-9387M TOP COWL (M-001374 ML-309362 AND ABOVE)
    TOP COWL (M-001374 ML-309362 AND ABOVE)
  • 1
    2168-9387M TOP COWL (M-001373 ML-309361 AND BELOW)
    TOP COWL (M-001373 ML-309361 AND BELOW)
  • 2
    37-95670M DECAL, SIDE SET M-000731 ML-303061 AND ABOVE
    DECAL, SIDE SET M-000731 ML-303061 AND ABOVE
  • 3
    37-95641M DECAL, FRONT
    DECAL, FRONT
  • 2
    37-81114M DECAL, SIDE SET M-000730 ML-303060 AND BELOW
    DECAL, SIDE SET M-000730 ML-303060 AND BELOW
  • 3
    82898M DECAL, FRONT
    DECAL, FRONT
  • 4
    82899M APPLIQUE, REAR M-001244 ML-307393 AND BELOW
    APPLIQUE, REAR M-001244 ML-307393 AND BELOW
  • 5
    12-80884M WASHER M-001244 ML-307393 AND BELOW
    WASHER M-001244 ML-307393 AND BELOW
  • 6
    11-82927M NUT
    NUT
  • 7
    83212M HOLDER
    HOLDER
  • 8
    17-84903M RIVET
    RIVET
  • 9
    83137M HOOK
    HOOK
  • 10
    17-83140M RIVET (M-001182 ML-307013 AND ABOVE)
    RIVET (M-001182 ML-307013 AND ABOVE)
  • 10
    17-84903M RIVET M-001181 ML-307012 AND BELOW
    RIVET M-001181 ML-307012 AND BELOW
  • 11
    84323M SOUND BLANKET
    SOUND BLANKET
  • 12
    83125M SOUND BLANKET
    SOUND BLANKET
  • 13
    83232M SOUND BLANKET
    SOUND BLANKET
  • 14
    37-81202M SHIFT INDICATOR
    SHIFT INDICATOR
  • 15
    80601M SEAL
    SEAL
  • 16
    84901M SEAL
    SEAL
  • 17
    91-803581 TOOL KIT
    TOOL KIT
  • 18
    2168-9398M BOTTOM COWL
    BOTTOM COWL
  • 19
    84913M LEVER
    LEVER
  • 20
    37-97559M DECAL (HP)
    DECAL (HP)
  • 21
    23-81949M BUSHING
    BUSHING
  • 22
    54-84914M CLAMP
    CLAMP
  • 23
    12-81794M WASHER
    WASHER
  • 24
    10-84088M BOLT
    BOLT
  • 25
    25-83988M GROMMET (M/ML)
    GROMMET (M/ML)
  • 26
    25-826981M GROMMET
    GROMMET
  • 27
    87-810468M LANYARD SWITCH (M-001471 ML-310224 AND ABOVE)
    LANYARD SWITCH (M-001471 ML-310224 AND ABOVE)
  • 27
    87-14222M SWITCH (M-001374-001470 ML-309362-3102233)
    SWITCH (M-001374-001470 ML-309362-3102233)
  • 27
    87-91622M STOP SWITCH (M-001373 ML-309361 AND BELOW)
    STOP SWITCH (M-001373 ML-309361 AND BELOW)
  • 28
    97756M STOPPER (M-001374 ML-309362 AND ABOVE)
    STOPPER (M-001374 ML-309362 AND ABOVE)
  • 29
    13-81869M WAVE WASHER
    WAVE WASHER
  • 30
    25-84910M GROMMET
    GROMMET
  • 31
    23-84911M COLLAR
    COLLAR
  • 32
    16-95505M BOLT (M-001182 ML-307013 AND ABOVE)
    BOLT (M-001182 ML-307013 AND ABOVE)
  • 32
    16-95505M BOLT (M-001181 ML-307012 AND BELOW)
    BOLT (M-001181 ML-307012 AND BELOW)
  • 33
    11-82383M NUT
    NUT
  • 34
    12-82217M WASHER
    WASHER
  • 35
    11-82383M NUT
    NUT
  • 36
    12-95507M WASHER
    WASHER
