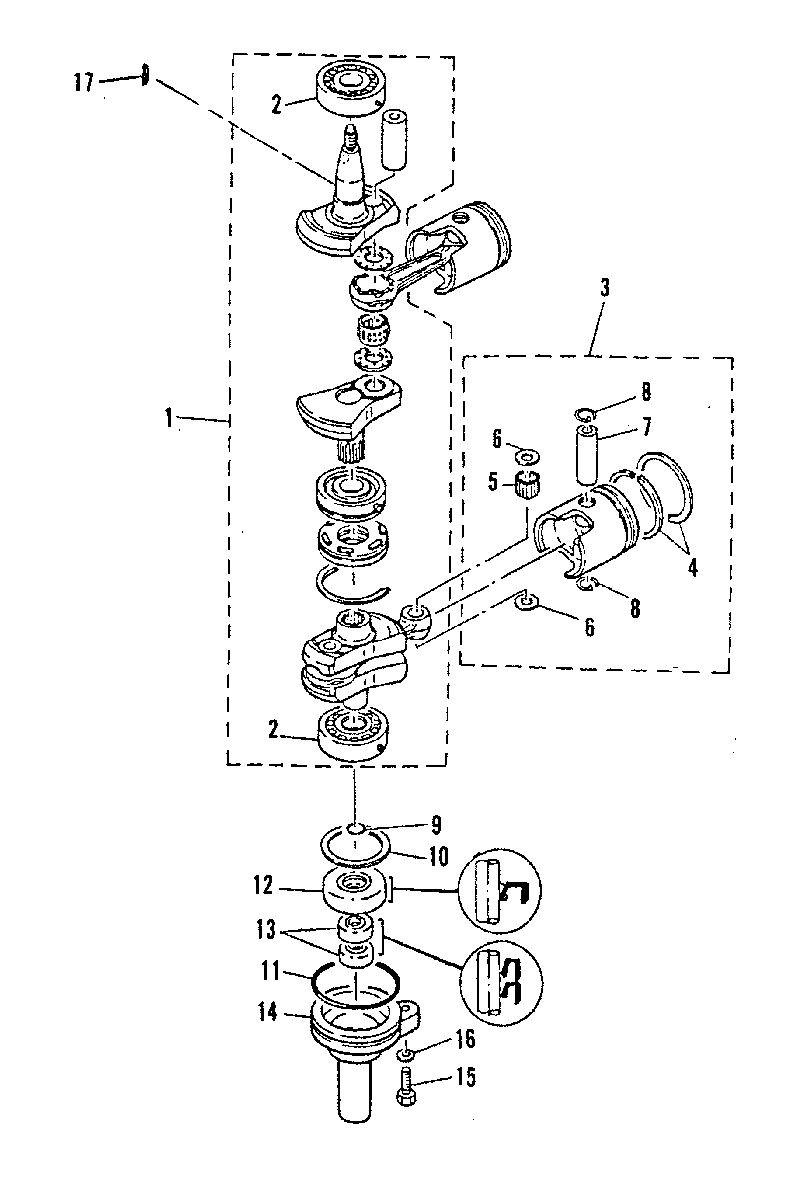

CRANKSHAFT AND PISTON для Mariner - K25 6A4-300101 AND UP (ML)

  • №
    Артикул
    Название
  • 1
    463-9440M CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-95518T BEARING
    BEARING
  • 3
    761-8375M PISTON STANDARD M-001471 ML-310224 AND ABOVE
    PISTON STANDARD M-001471 ML-310224 AND ABOVE
  • 4
    39-95519T PISTON RING
    PISTON RING
  • 3
    761-8428M PISTON STANDARD M-001470 ML-310223 AND BELOW
    PISTON STANDARD M-001470 ML-310223 AND BELOW
  • 4
    39-81095T PISTON RING
    PISTON RING
  • 3
    761-8376M PISTON 1ST. O.S. 67.25MM M-001471 ML-310224 AND ABOVE
    PISTON 1ST. O.S. 67.25MM M-001471 ML-310224 AND ABOVE
  • 4
    39-95520T PISTON RING
    PISTON RING
  • 3
    761-8429M PISTON 1ST. O.S. 67.25MM M-001470 ML-310223 AND BELOW
    PISTON 1ST. O.S. 67.25MM M-001470 ML-310223 AND BELOW
  • 4
    39-81096T PISTON RING
    PISTON RING
  • 3
    761-8377M PISTON 2ND. O.S. 67.50MM M-001471 ML-310224 AND ABOVE
    PISTON 2ND. O.S. 67.50MM M-001471 ML-310224 AND ABOVE
  • 4
    39-95521M PISTON RING
    PISTON RING
  • 3
    761-8430M PISTON 2ND. O.S. 67.50MM M-001470 ML-310223 AND BELOW
    PISTON 2ND. O.S. 67.50MM M-001470 ML-310223 AND BELOW
  • 4
    39-81097T PISTON RING
    PISTON RING
  • 5
    29-84452M NEEDLE BEARING
    NEEDLE BEARING
  • 6
    12-81829M WASHER
    WASHER
  • 7
    41-80565M PISTON PIN
    PISTON PIN
  • 8
    53-82345M SNAP RING
    SNAP RING
  • 9
    25-82267M O-RING
    O-RING
  • 10
    23-81842M SPACER
    SPACER
  • 11
    25-84089M O-RING
    O-RING
  • 12
    26-19133M OIL SEAL (LARGE)
    OIL SEAL (LARGE)
  • 13
    26-19134M OIL SEAL (SMALL) M-001374 ML-309362 AND ABOVE
    OIL SEAL (SMALL) M-001374 ML-309362 AND ABOVE
  • 14
    19135M HOUSING
    HOUSING
  • 13
    26-97040M OIL SEAL (SMALL) M001373 ML-309361 AND BELOW
    OIL SEAL (SMALL) M001373 ML-309361 AND BELOW
  • 14
    19135M HOUSING
    HOUSING
  • 15
    10-94526M BOLT
    BOLT
  • 16
    12-82214M WASHER
    WASHER
  • 17
    28-8M0057164 KEY
    KEY
