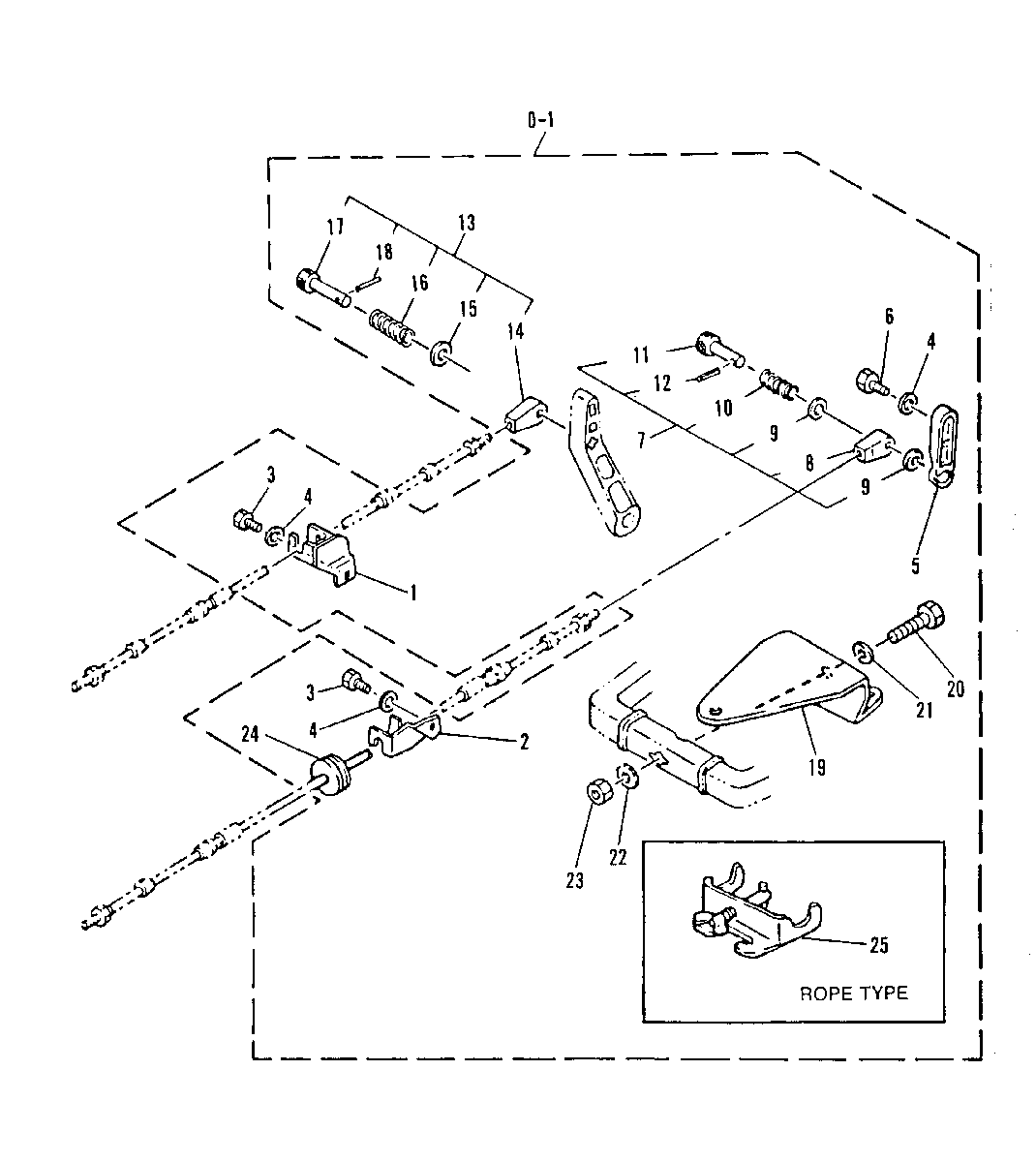

REMOTE CONTROL ATTACHING KIT для Mariner - K25 6A4-000101 AND UP (M)

  • №
    Артикул
    Название
  • 0-1
    43991A1 ATTACHING KIT (M-001182 ML-307013 AND ABOVE)
    ATTACHING KIT (M-001182 ML-307013 AND ABOVE)
  • 0-1
    8M0116998 ATTACHING KIT (M-001181 ML-307012 AND BELOW)
    ATTACHING KIT (M-001181 ML-307012 AND BELOW)
  • 1
    84221M BRACKET
    BRACKET
  • 2
    83717M BRACKET
    BRACKET
  • 3
    10-826957M BOLT
    BOLT
  • 4
    12-82214M WASHER
    WASHER
  • 5
    84222M THROTTLE LEVER
    THROTTLE LEVER
  • 6
    10-91772M BOLT
    BOLT
  • 7
    83723M CABLE END (THROTTLE-M-001374 ML-309362 & ABOVE)
    CABLE END (THROTTLE-M-001374 ML-309362 & ABOVE)
  • 7
    83933M CABLE END (THROTTLE-M-001373 ML-309361 & BELOW)
    CABLE END (THROTTLE-M-001373 ML-309361 & BELOW)
  • 8
    83724M CABLE END (M-001374 ML-309362 AND ABOVE)
    CABLE END (M-001374 ML-309362 AND ABOVE)
  • 8
    83934M CABLE END (M-001373 ML-309361 AND BELOW)
    CABLE END (M-001373 ML-309361 AND BELOW)
  • 9
    12-82216M WASHER
    WASHER
  • 10
    24-83725M SPRING
    SPRING
  • 11
    17-814499M HOOK (M-001471 ML-310224 AND ABOVE)
    HOOK (M-001471 ML-310224 AND ABOVE)
  • 11
    17-814499M HOOK (M-001470 ML-310223 AND BELOW)
    HOOK (M-001470 ML-310223 AND BELOW)
  • 12
    17-82146M ROLL PIN
    ROLL PIN
  • 13
    83719M CABLE END ASSEMBLY (SHIFT)
    CABLE END ASSEMBLY (SHIFT)
  • 14
    83720M CABLE END
    CABLE END
  • 15
    12-82216M WASHER
    WASHER
  • 16
    24-83721M SPRING
    SPRING
  • 17
    17-814500M HOOK (M-001471 ML-310224 AND ABOVE)
    HOOK (M-001471 ML-310224 AND ABOVE)
  • 17
    17-814500M HOOK (M-001470 ML-310223 AND BELOW)
    HOOK (M-001470 ML-310223 AND BELOW)
  • 18
    17-82146M ROLL PIN
    ROLL PIN
  • 19
    91635M BRACKET (M-001182 ML-307013 AND ABOVE)
    BRACKET (M-001182 ML-307013 AND ABOVE)
  • 19
    11670T BRACKET (M-001181 ML-307012 AND BELOW)
    BRACKET (M-001181 ML-307012 AND BELOW)
  • 20
    10-91636M BOLT
    BOLT
  • 21
    13-82218M LOCKWASHER (M-001244 ML-307393 AND BELOW)
    LOCKWASHER (M-001244 ML-307393 AND BELOW)
  • 22
    12-82220M WASHER
    WASHER
  • 23
    11-81785M LOCKNUT
    LOCKNUT
  • 24
    25-97031M GROMMET M-001182 ML-307013 AND ABOVE
    GROMMET M-001182 ML-307013 AND ABOVE
  • 25
    83727M BRACKET
    BRACKET
